Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04

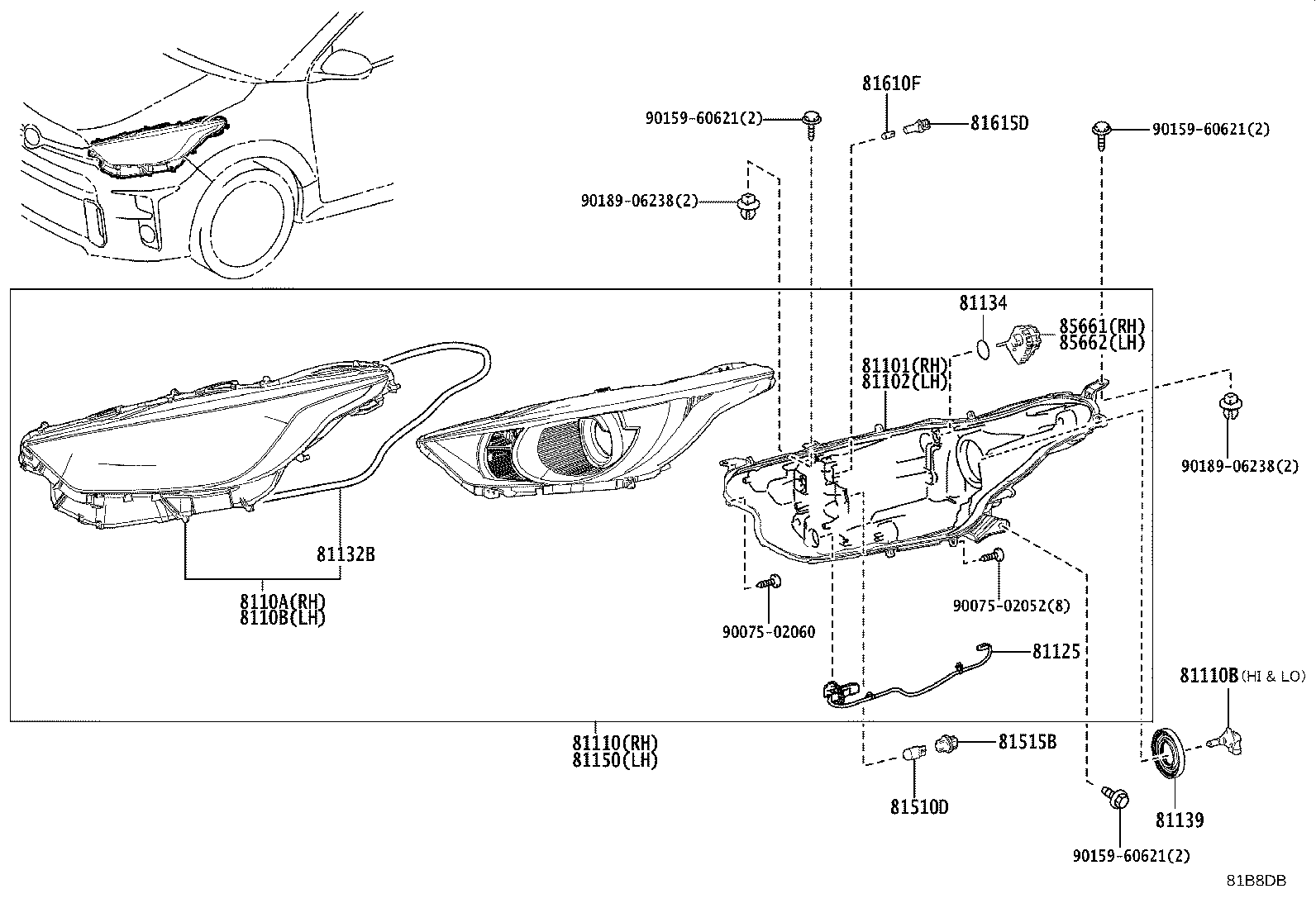

Headlamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81125 | Cord, Headlamp |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
