Toyota Yaris GR

2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 3 illustrations

Illustrations

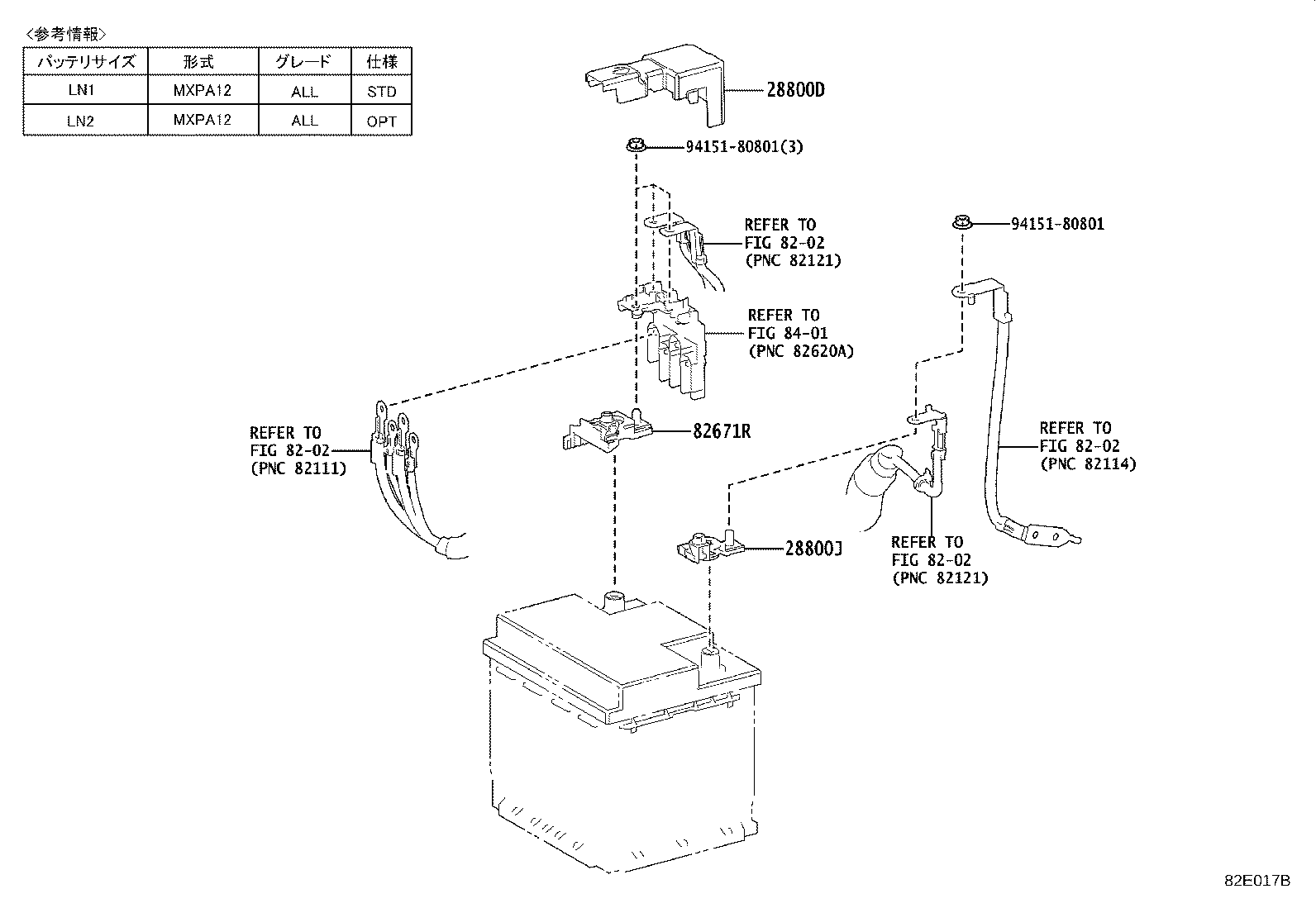

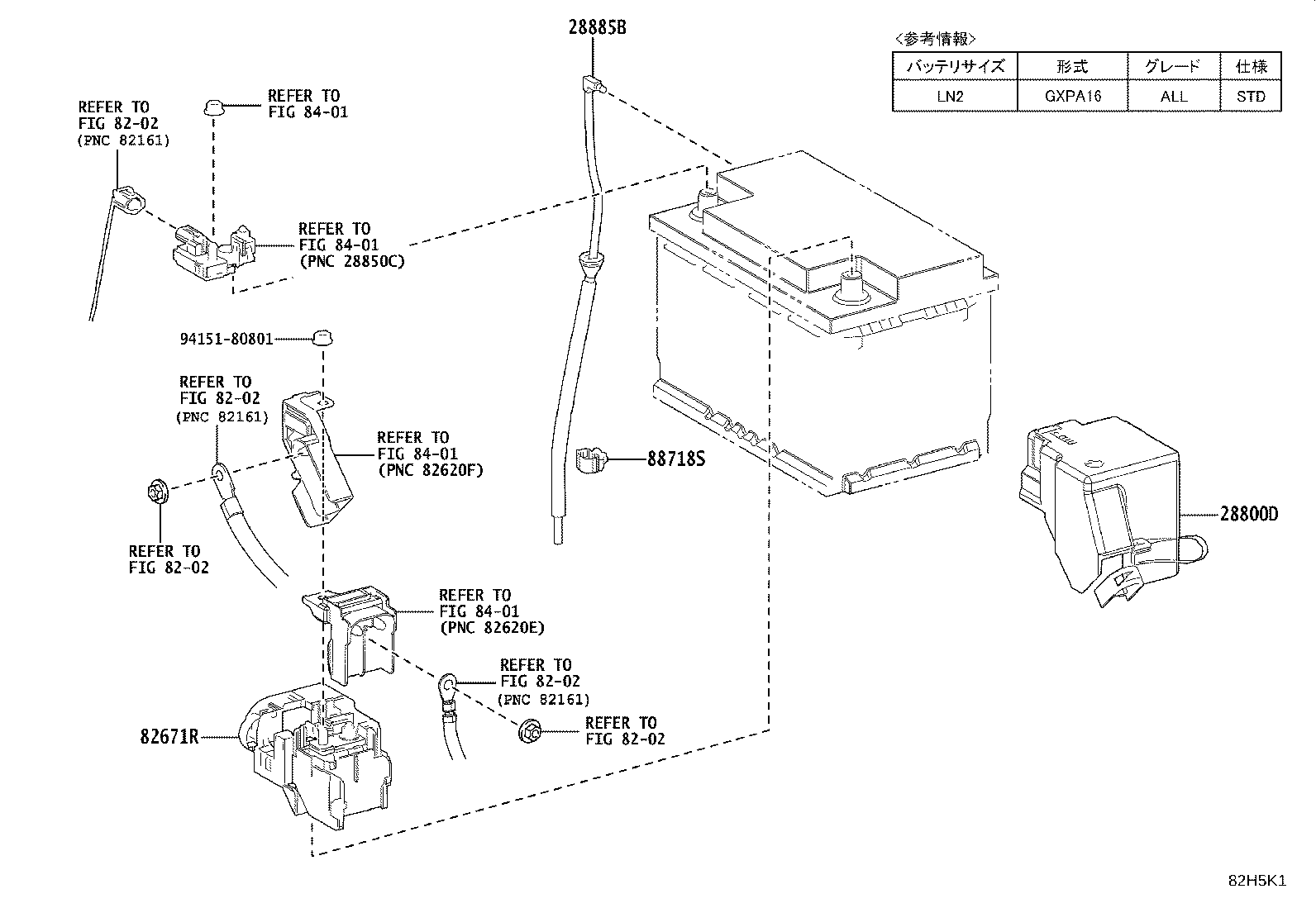

Figure 82E050D 82E050D 2020-08 → 2024-04 Figure 82H5K1 82H5K1 2024-04 → — Figure 82E017B 82E017B 2020-09 → —

Part groups

PNCDescription
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28885B Hose, Battery
82671R Stopper, Battery Terminal
88718S Clamp, Piping NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
