Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04

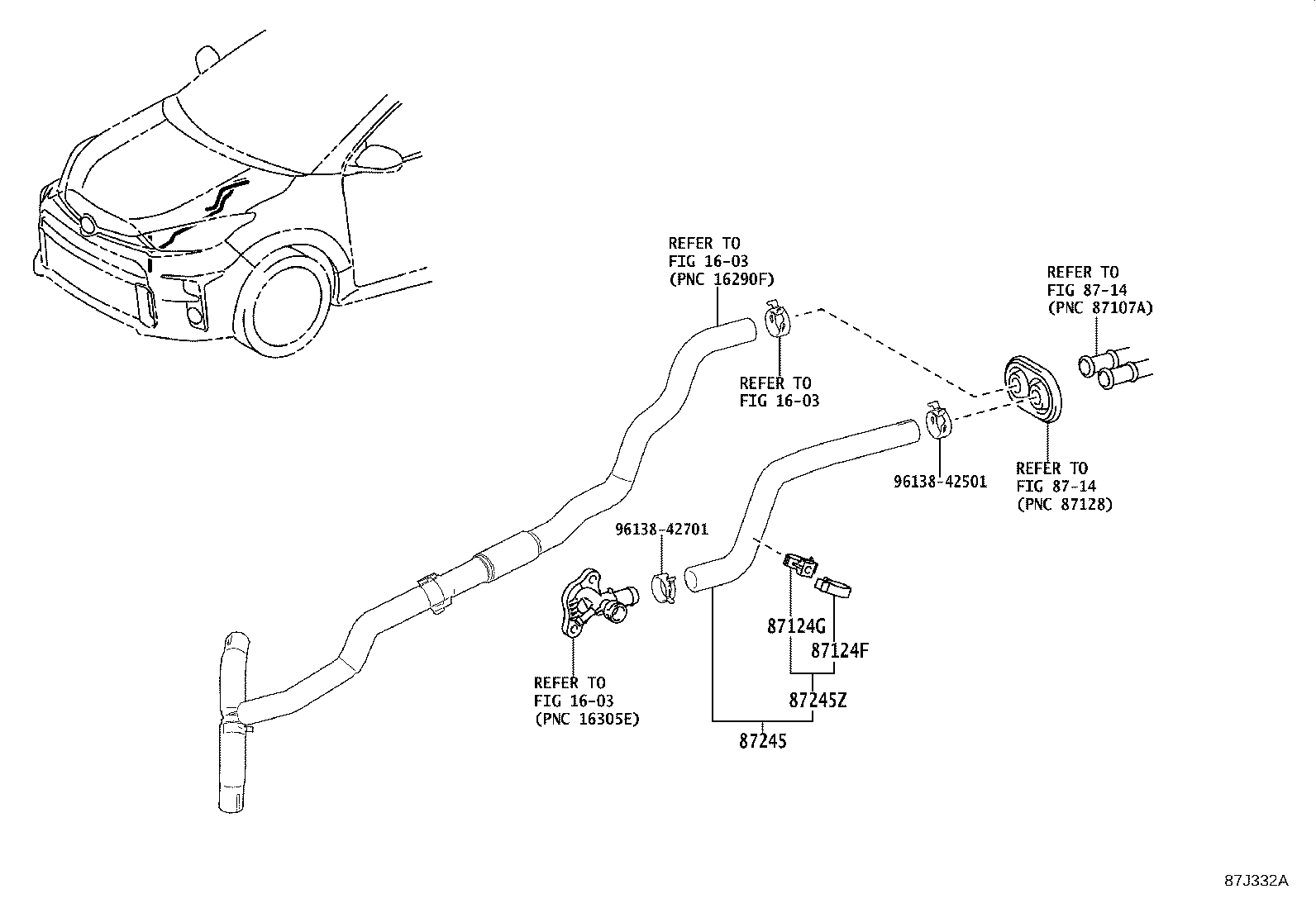

Heating & Air Conditioning - Water Piping
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87209 | Hose Sub-assy, Water |
| 87245 | Hose, Heater Water, Inlet |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246 | Hose, Heater Water, Outlet |
| 87246H | Clip OR Clamp(FOR HEATER WATER HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
