Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 9 illustrations

Illustrations

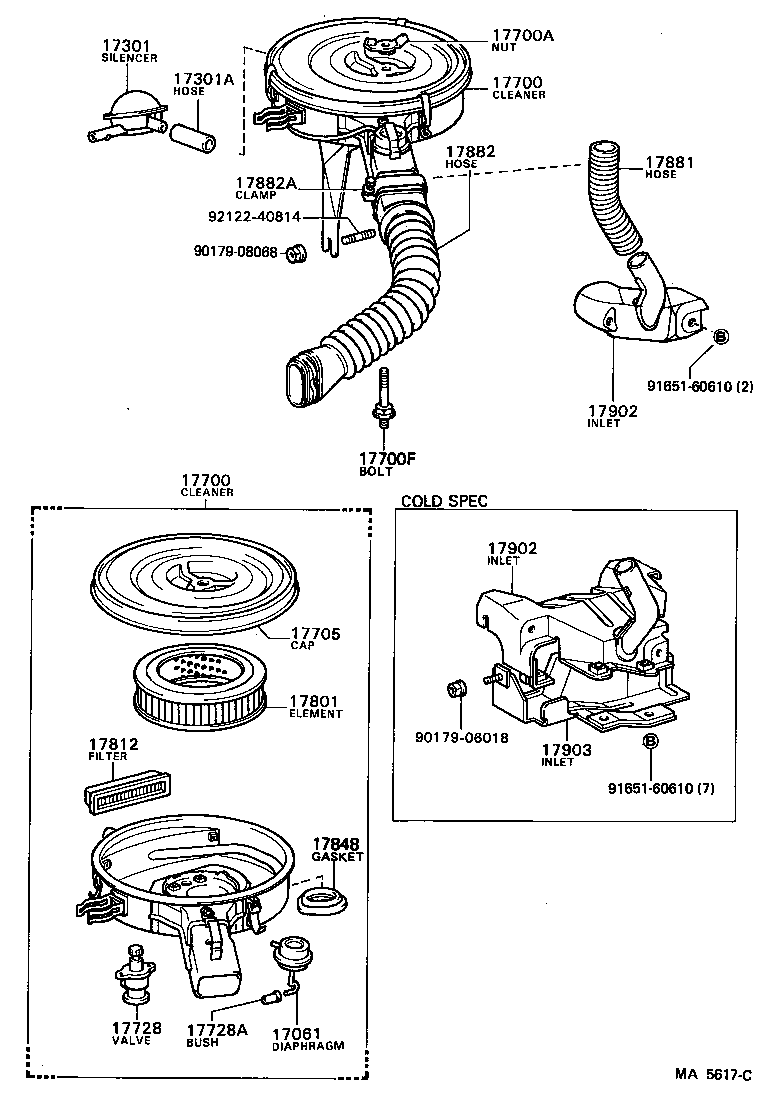

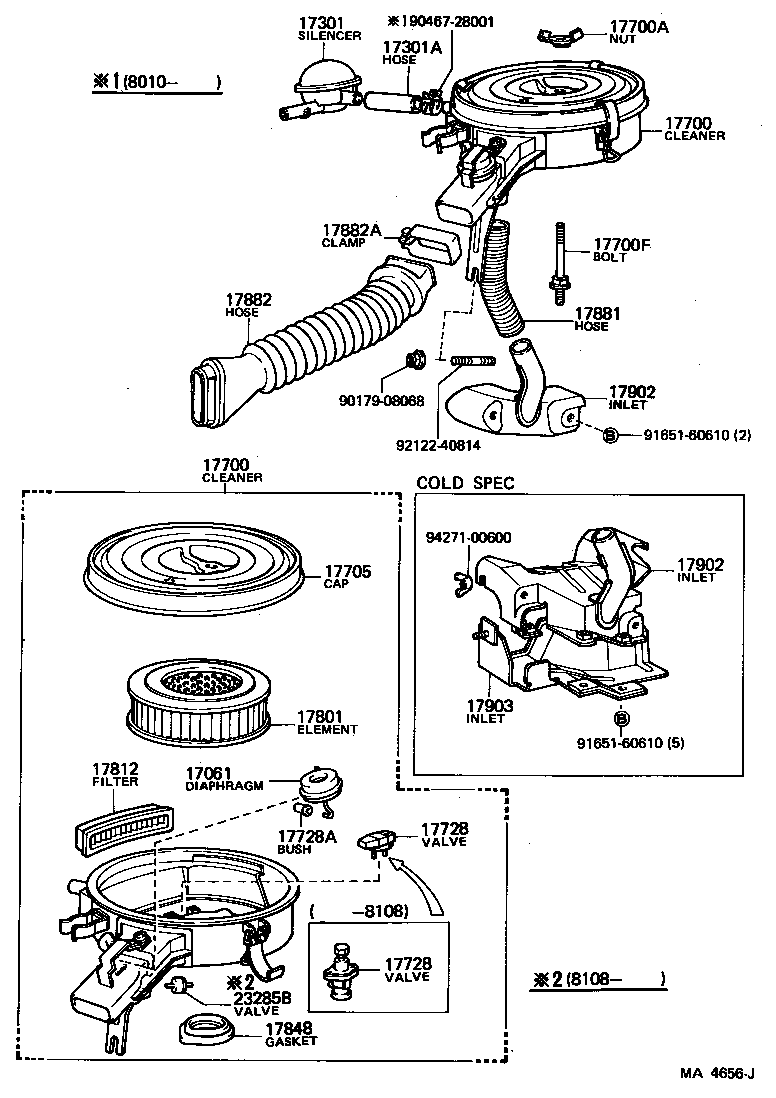

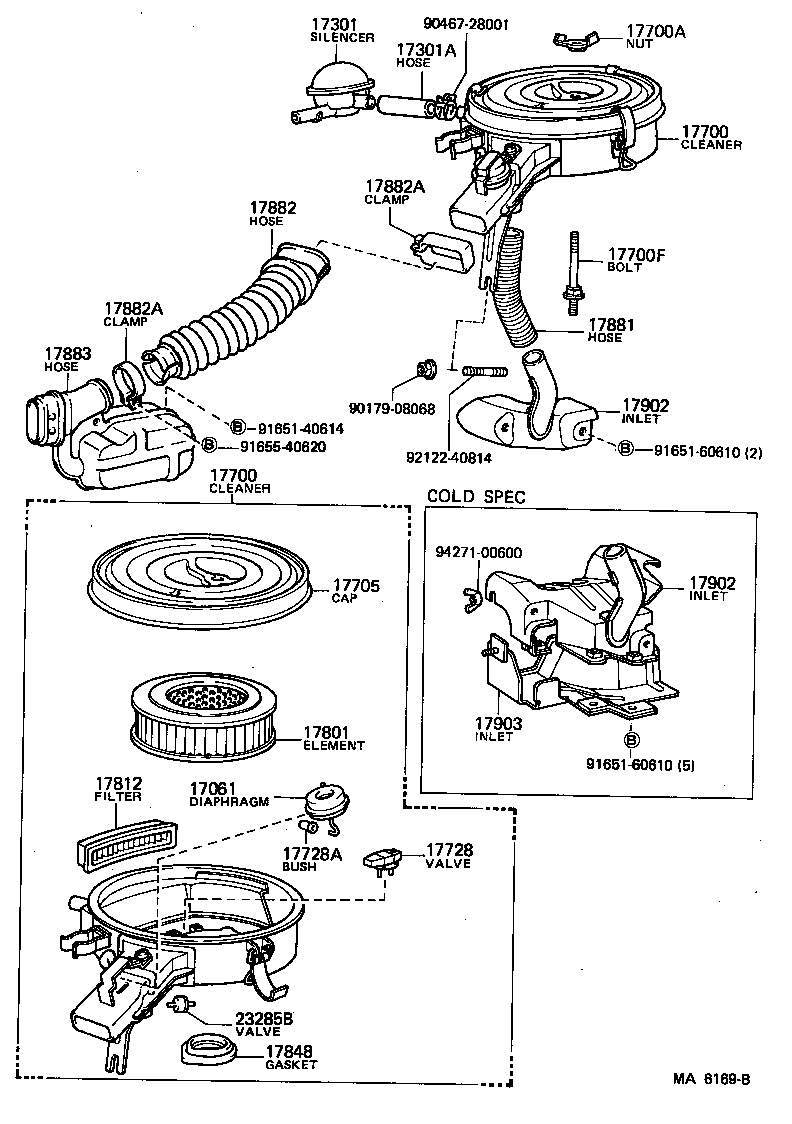

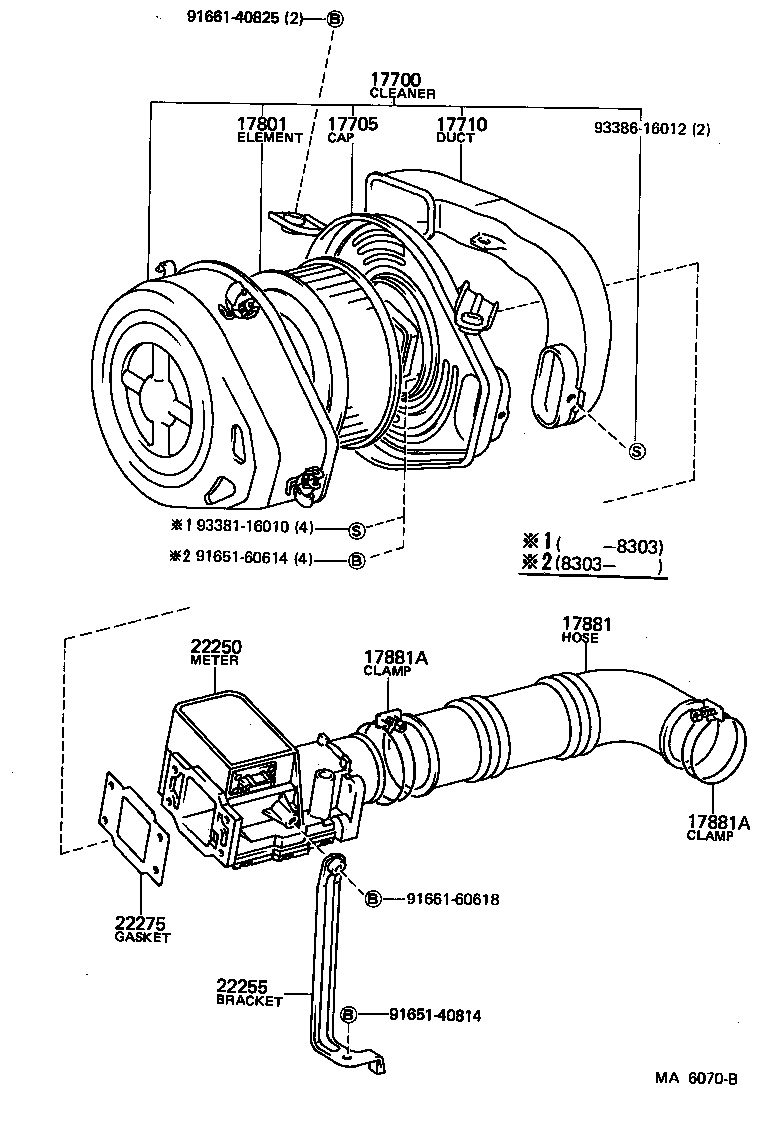

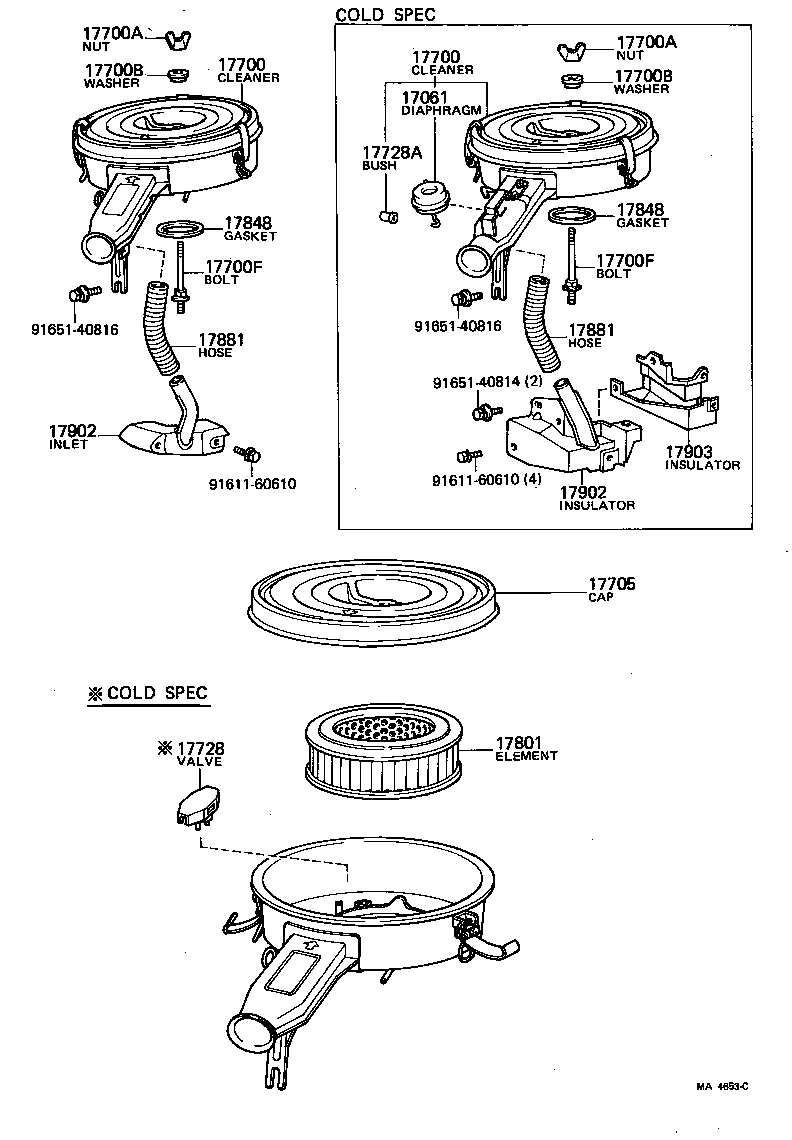

Figure MA3156G MA3156G 1978-02 → 1980-05 Figure MA4653C MA4653C 1980-05 → 1982-01 Figure MA4656J MA4656J 1980-05 → 1982-08 Figure MA4656J MA4656J 1982-08 → 1983-04 Figure MA4656J MA4656J 1983-04 → — Figure MA6169B MA6169B 1982-08 → 1983-04 Figure MA6169B MA6169B 1983-04 → — Figure MA5617C MA5617C 1982-01 → — Figure MA6070B MA6070B 1982-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17301 Silencer Sub-assy, Air Suction
17301A Hose(FOR AIR CLEANER TO SILENCER)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17710 Duct Sub-assy, Air Cleaner Inlet, NO.1
17728 Valve, Thermostatic
17728A Bush
17801 Element Sub-assy, Air Cleaner Filter
17812 Filter, Air Cleaner, NO.2
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
23285B Valve, Check, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
