Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 7 illustrations

Illustrations

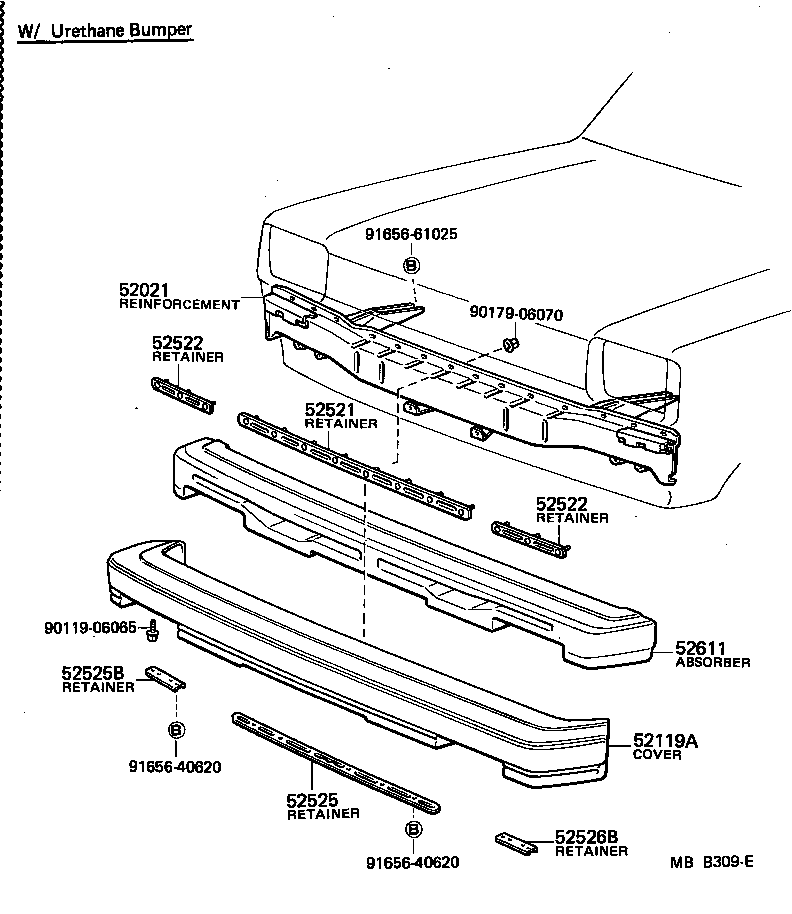

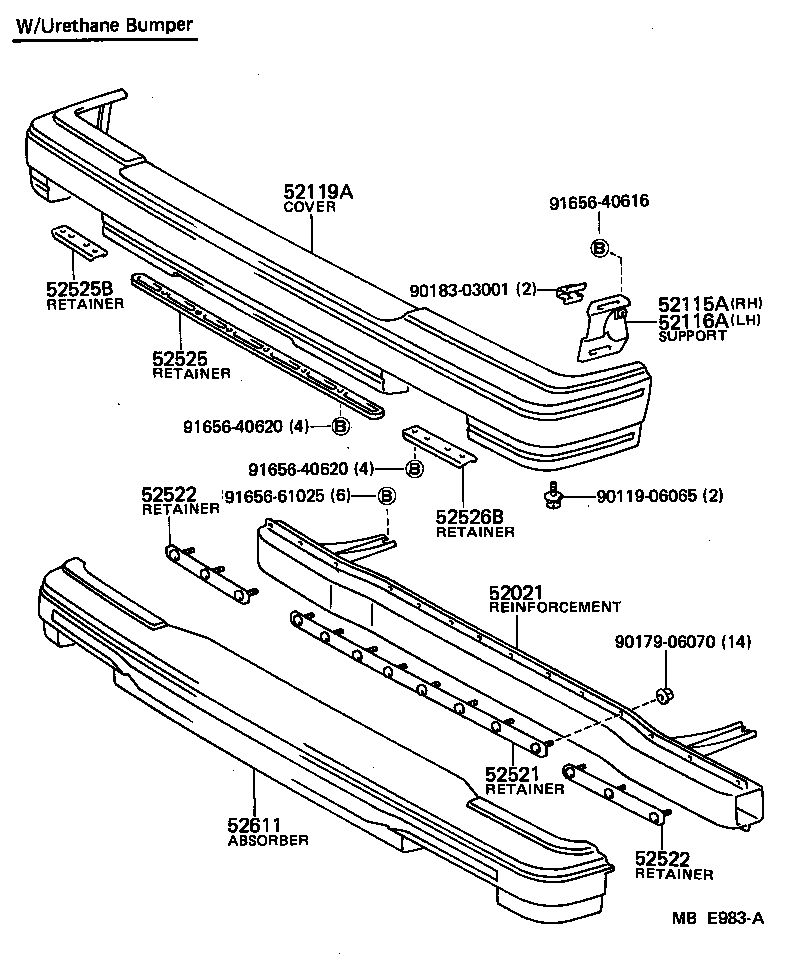

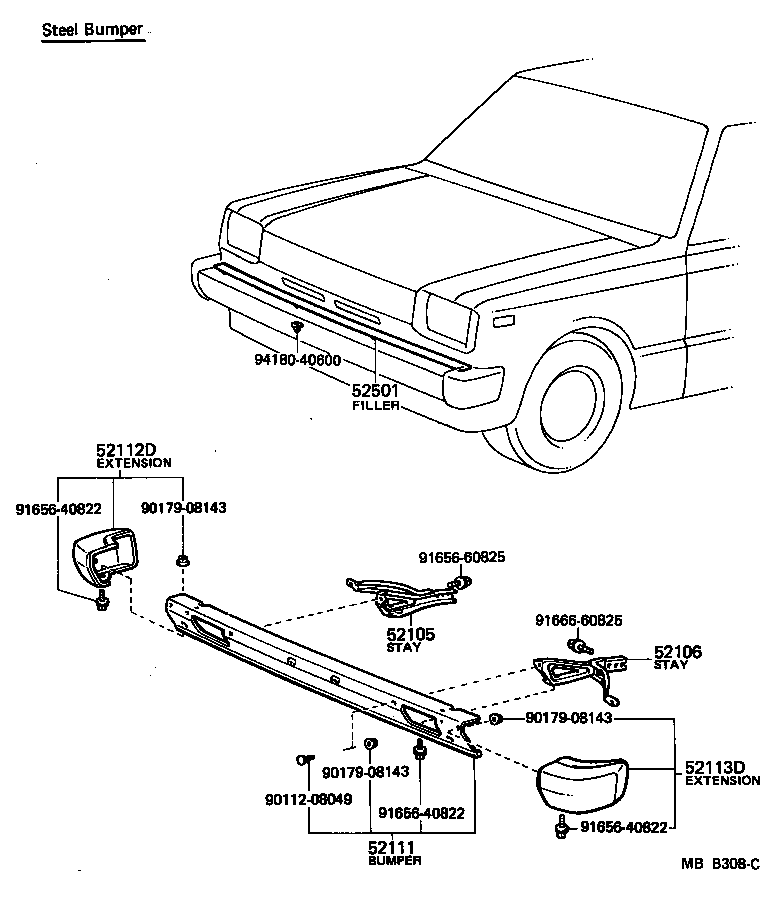

Figure MB7749G MB7749G 1978-02 → 1980-05 Figure MBB308C MBB308C 1980-05 → 1982-08 Figure MBB309E MBB309E 1980-05 → 1982-08 Figure MBE145A MBE145A 1982-08 → — Figure MBE983A MBE983A 1983-01 → — Figure MBE983A MBE983A 1983-04 → — Figure MBE983A MBE983A 1983-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52021A Reinforcement Sub-assy, Front Bumper, RH
52022A Reinforcement Sub-assy, Front Bumper, LH
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52443 Protector, Front Bumper, RH
52444 Protector, Front Bumper, LH
52501 Filler Sub-assy, Front Bumper
52518 Pad, Front Bumper Filler
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
