Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 9 illustrations

Illustrations

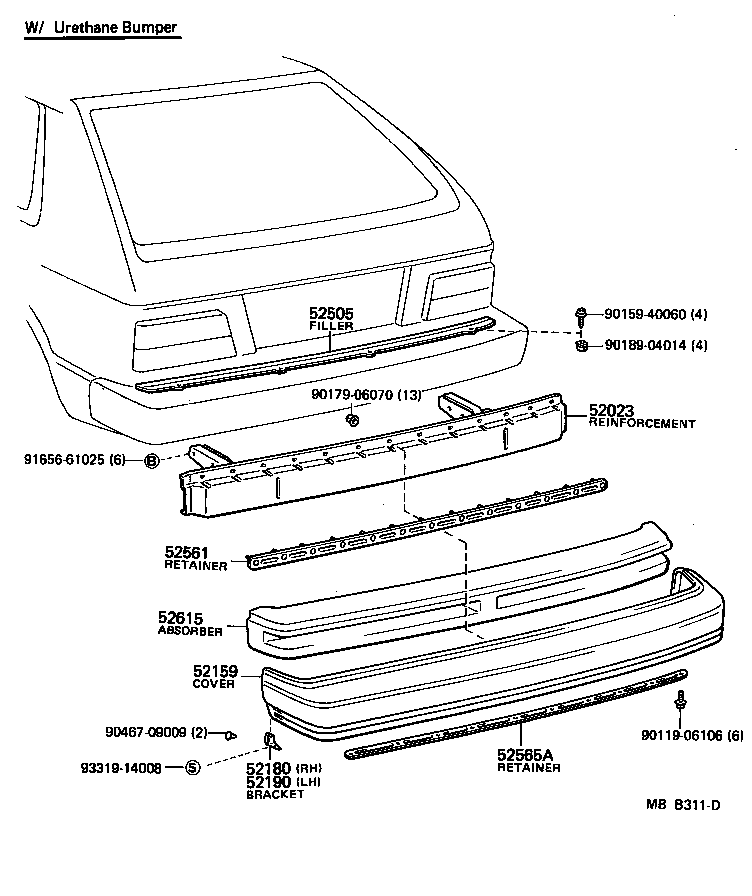

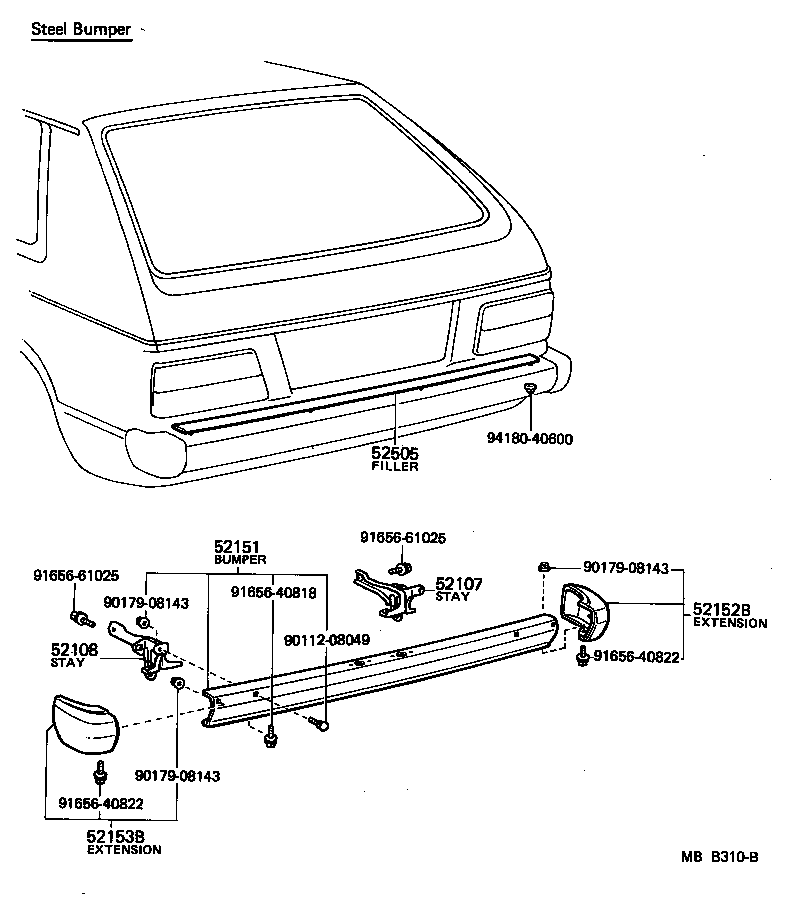

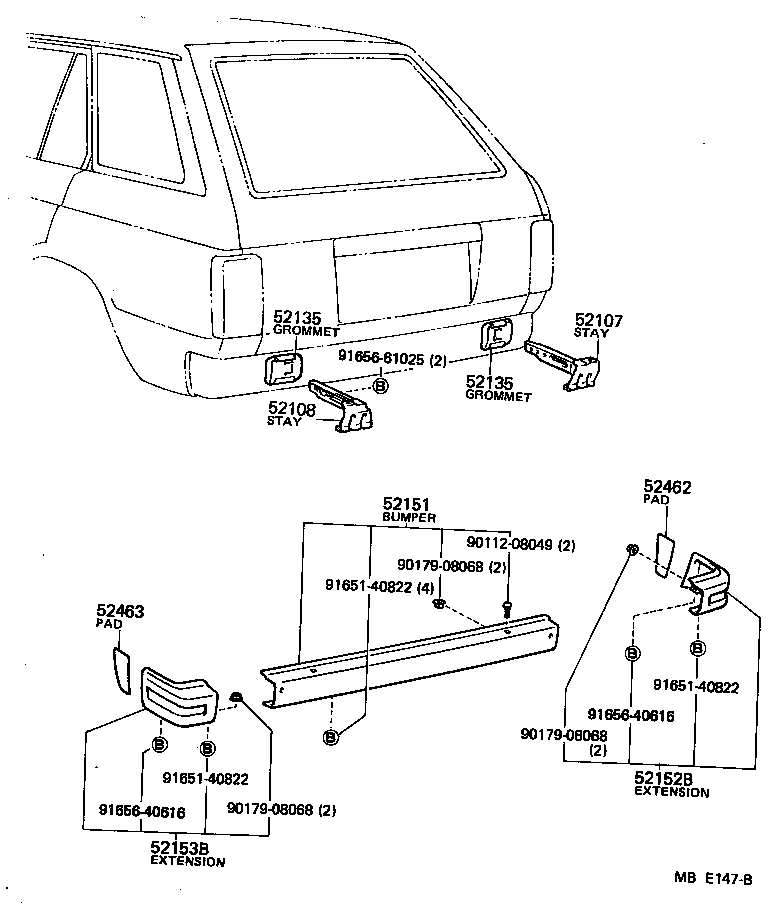

Figure MB7750F MB7750F 1978-02 → 1980-05 Figure MBB310B MBB310B 1980-05 → 1982-08 Figure MBB311D MBB311D 1980-05 → 1982-08 Figure MBB311D MBB311D 1983-01 → — Figure MBB311D MBB311D 1983-04 → — Figure MBB311D MBB311D 1983-08 → — Figure MBE146A MBE146A 1982-08 → — Figure MB8441C MB8441C 1978-10 → 1982-08 Figure MBE147B MBE147B 1982-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52043 Reinforcement Sub-assy, Rear Bumper, RH
52044 Reinforcement Sub-assy, Rear Bumper, LH
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52135 Grommet, Rear Bumper Stay
52151 Bumper Assy, Rear
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52159 Cover, Rear Bumper
52169 Pad, Rear Bumper
52180 Bracket Assy, Rear Bumper Side Mounting, RH
52190 Bracket Assy, Rear Bumper Side Mounting, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
