Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

31 part groups · 4 illustrations

Illustrations

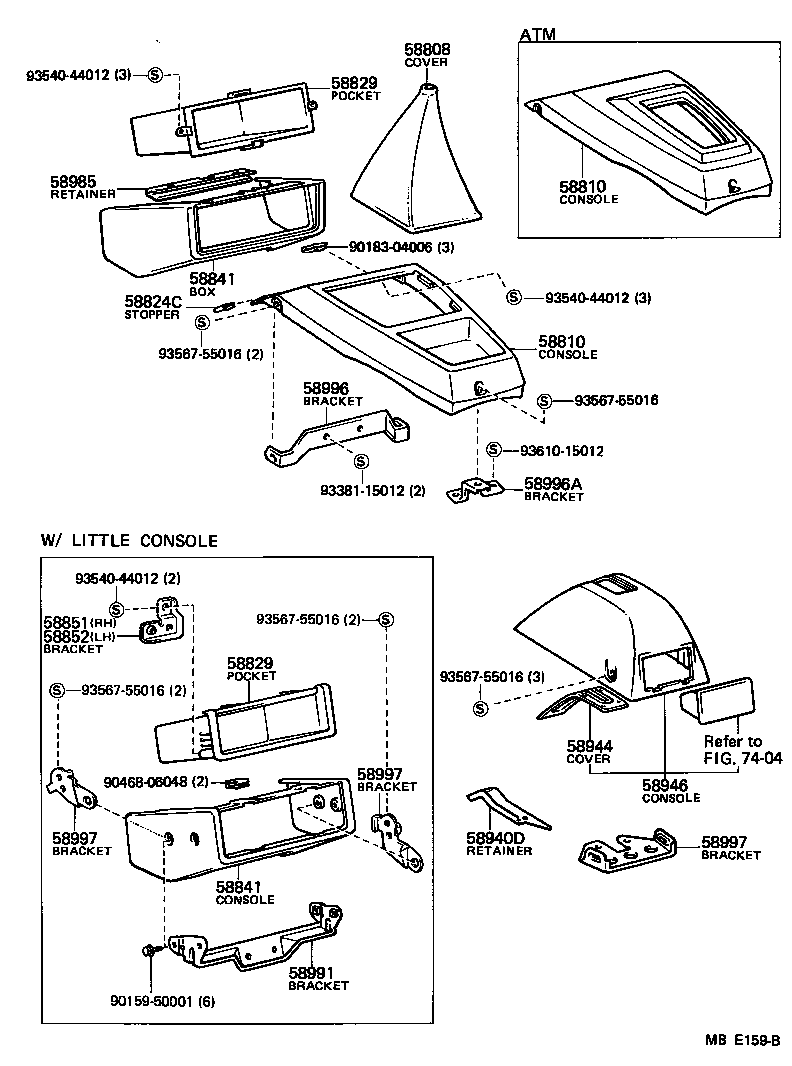

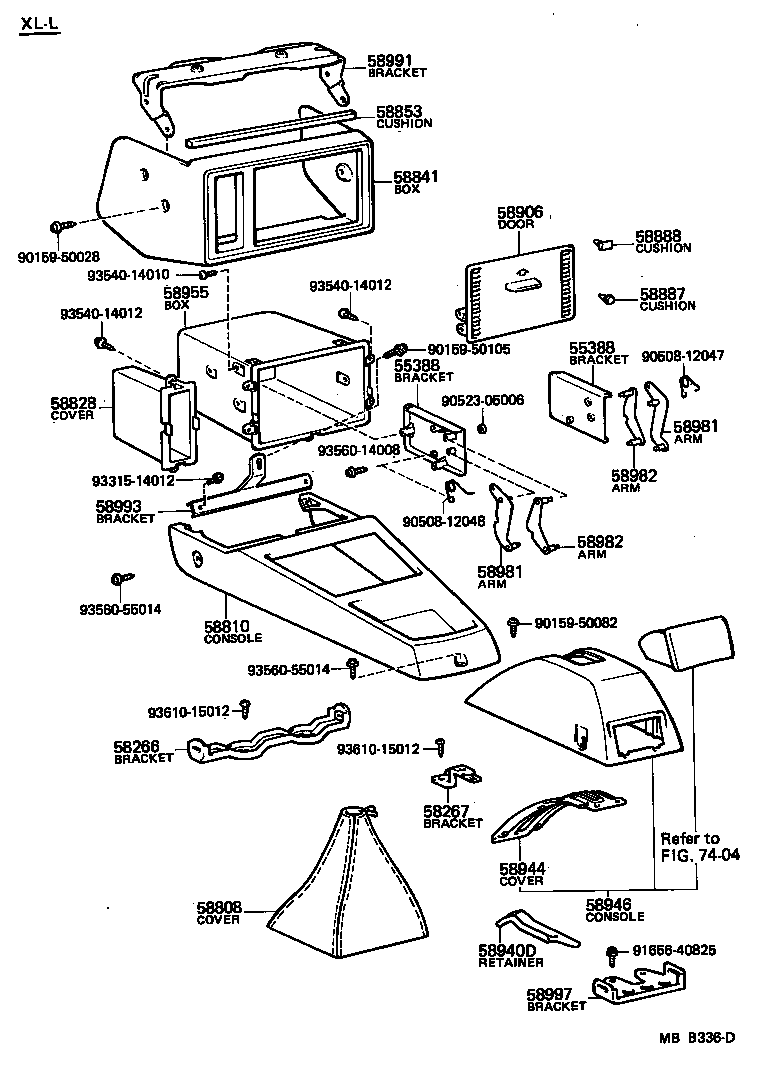

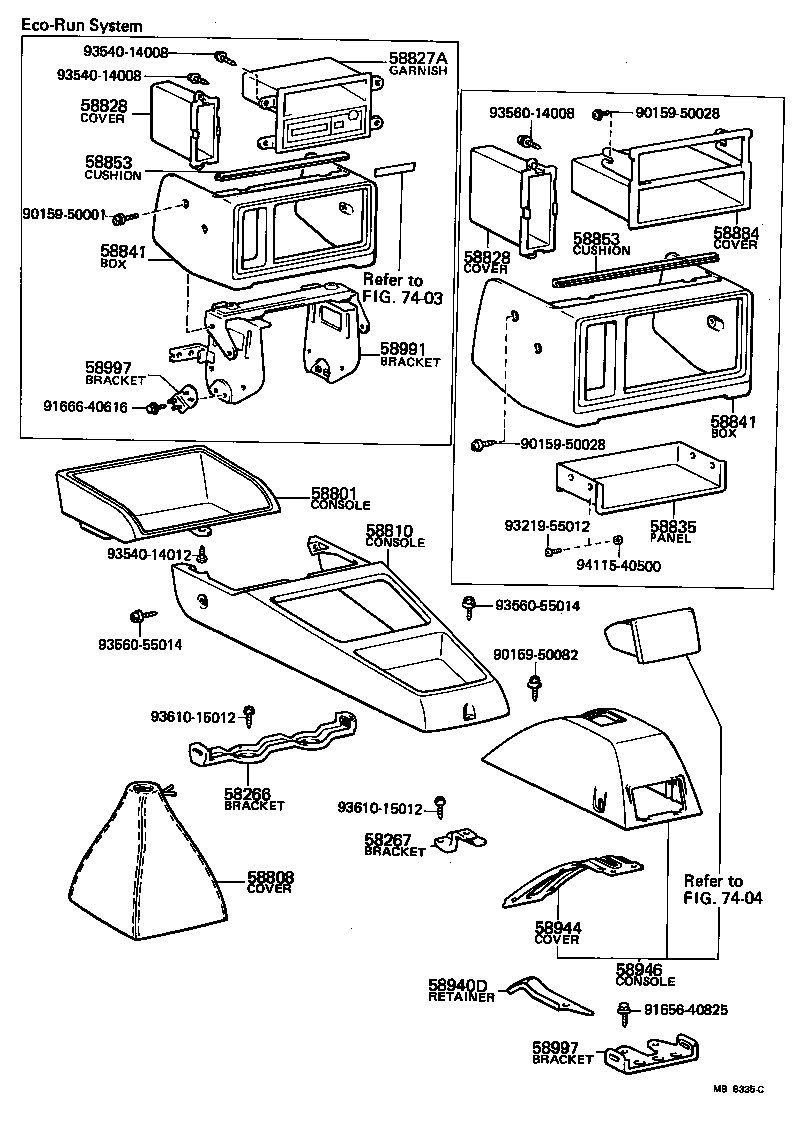

Figure MB7754C MB7754C 1978-02 → 1980-05 Figure MBB335C MBB335C 1980-05 → 1982-08 Figure MBB336D MBB336D 1980-05 → 1982-08 Figure MBE159B MBE159B 1982-08 → —

Part groups

PNCDescription
55388 Bracket, Upper Console, Mounting
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58801 Console Sub-assy, Upper
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58824C Stopper, Console Rear Panel, NO.2
58827A Garnish, Console Box Pocket
58828 Cover, OK Monitor Opening
58829 Pocket, Console Box
58835 Panel, Console, Upper
58841 Box, Console, Upper
58851 Bracket, Console Support, Upper RH
58852 Bracket, Console Support, Upper LH
58853 Cushion,Console Support
58884 Cover, Stereo Opening
58887 Cushion, Console, NO.1
58888 Cushion, Console, NO.2
58906 Door Sub-assy, Upper Console
58940D Retainer, Parking Brake Hole Cover
58944 Cover, Parking Brake Hole
58946 Console Box, Rear
58955 Box, Upper Console, Inner
58981 Arm, Upper Console Mounting, NO.1
58982 Arm, Upper Console Mounting, NO.2
58985 Retainer, Console Box
58991 Bracket, Console Box Mounting, Upper
58993 Bracket, Console Box Mounting, Rear
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
