Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan
Discontinued model
Data version 1985-03

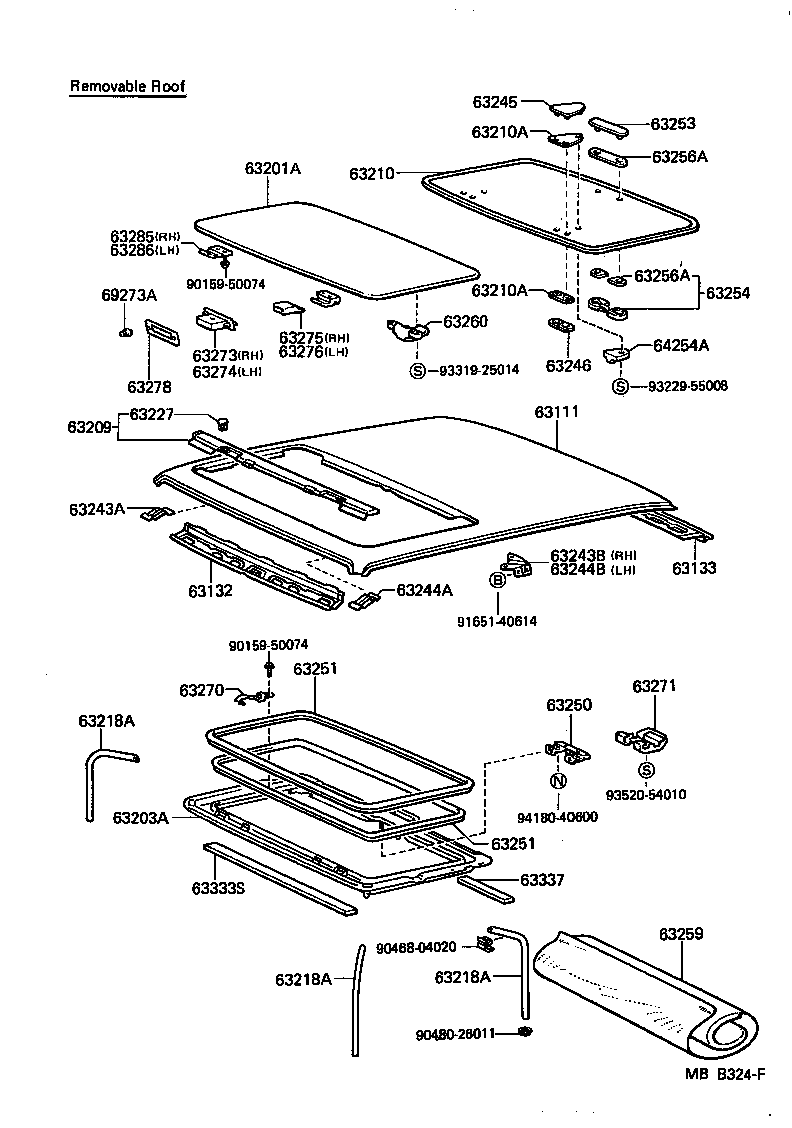

Roof Panel & Back Window Glass
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63105 | Reinforcement Sub-assy, Roof Panel, Rear |
| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63133 | Frame, Back Window Opening, Upper |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63210 | Glass Sub-assy, Sliding Roof OR Removable Roof |
| 63210A | Seal, Removable Roof Glass, Outer |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63227 | Clip, Roof Wind Deflector Panel |
| 63243A | Bracket, Removable Roof Housing Front Mounting, RH |
| 63243B | Bracket, Removable Roof Housing Side Mounting, RH |
| 63244A | Bracket, Removable Roof Housing Front Mounting, LH |
| 63244B | Bracket, Removable Roof Housing Side Mounting, LH |
| 63245 | Holder, Removable Roof Glass, Outer Front |
| 63246 | Holder, Removable Roof Glass, Inner Front |
| 63250 | Base Assy, Removable Roof Lock |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63253 | Holder, Removable Roof Glass, Outer Rear |
| 63254 | Holder, Removable Roof Glass, Inner Rear |
| 63256A | Seal, Removable Roof Glass |
| 63259 | Case, Removable Roof |
| 63260 | Handle Assy, Removable Roof Lock |
| 63270 | Catch Assy, Removable Roof Auxiliary, RH |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63273A | Bolt, Removable Roof Hinge Case |
| 63274 | Case, Removable Roof Hinge, LH |
| 63275 | Holder, Removable Roof Hinge, RH |
| 63276 | Holder, Removable Roof Hinge, LH |
| 63278 | Seal, Removable Roof Hinge Case |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 63333S | Protector, Sun Roof Headlining |
| 63337 | Protector, Sun Roof Headlining, Center |
| 64254A | Guide, Sunshade Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
