Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan
Discontinued model
Data version 1985-03

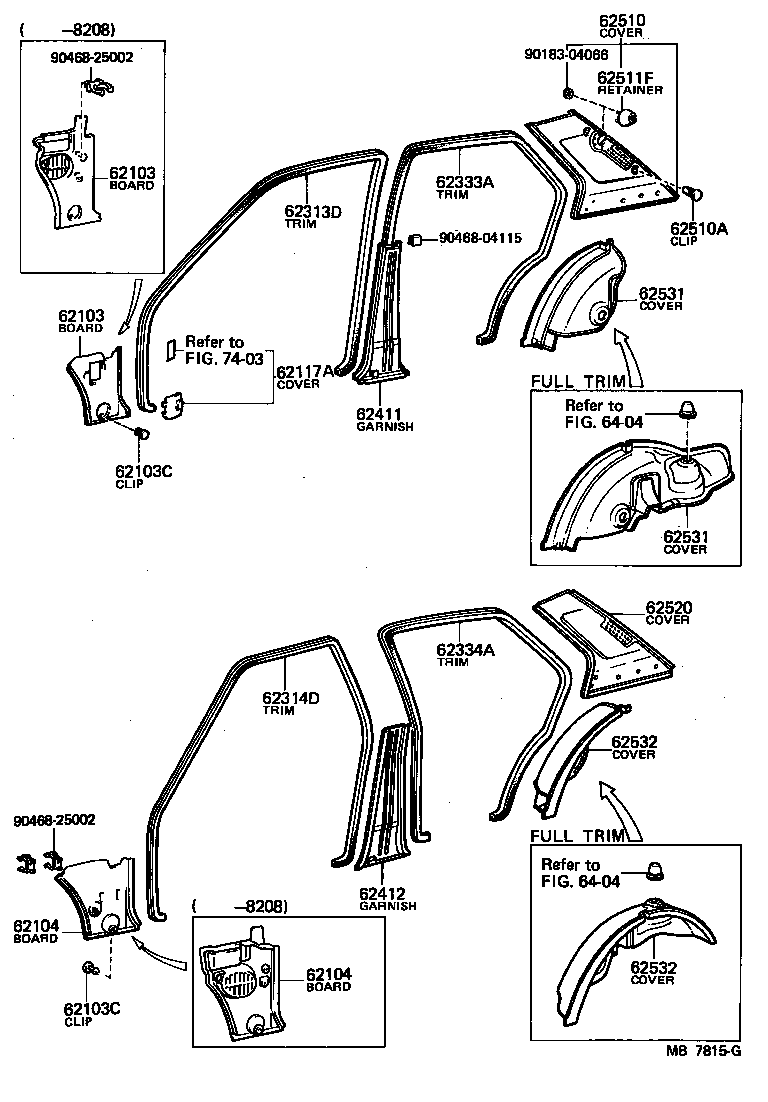

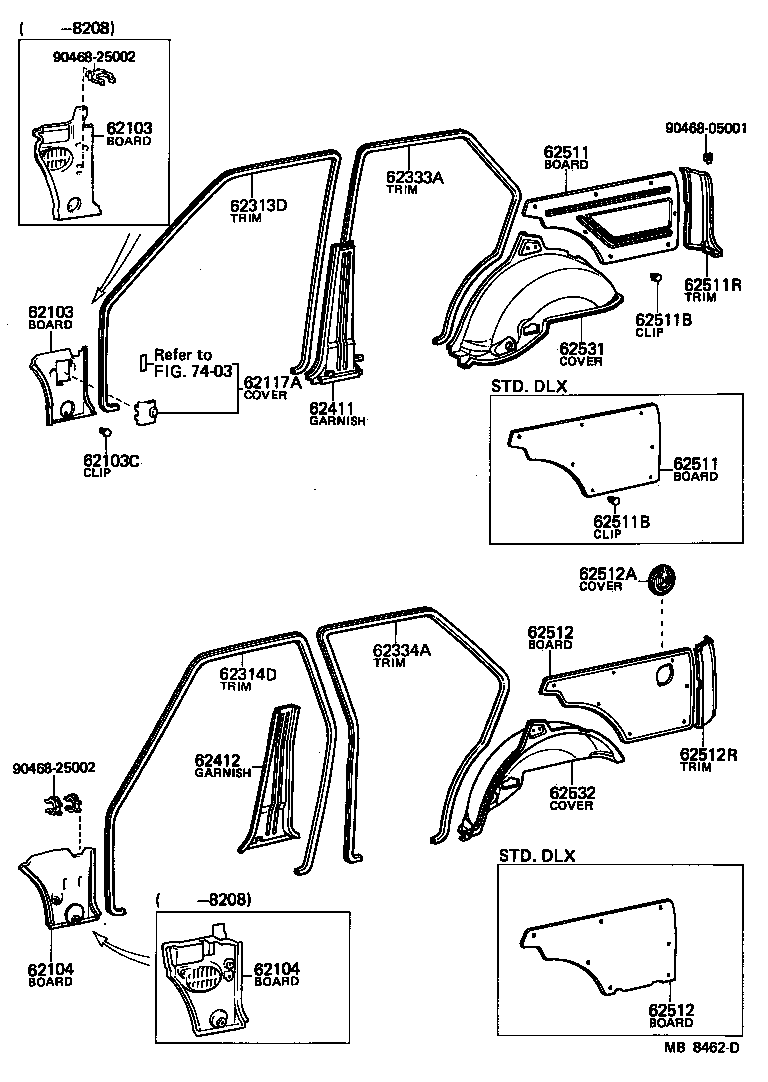

Inside Trim Board & Door Opening Trim Moulding
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62351 | Retainer, Quarter Window Inside Trim, RH |
| 62352 | Retainer, Quarter Window Inside Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62510 | Cover Assy, Back Window Side Garnish, RH |
| 62510A | Clip, Back Window Side Garnish Cover |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511E | Pocket, Quarter Trim |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62511R | Trim, Rear Body Inside, Rear RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512A | Cover, Quarter Trim Washer |
| 62512R | Trim, Rear Body Inside, Rear LH |
| 62520 | Cover Assy, Back Window Side Garnish, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62581 | Retainer, Quarter Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
