Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

24 part groups · 3 illustrations

Illustrations

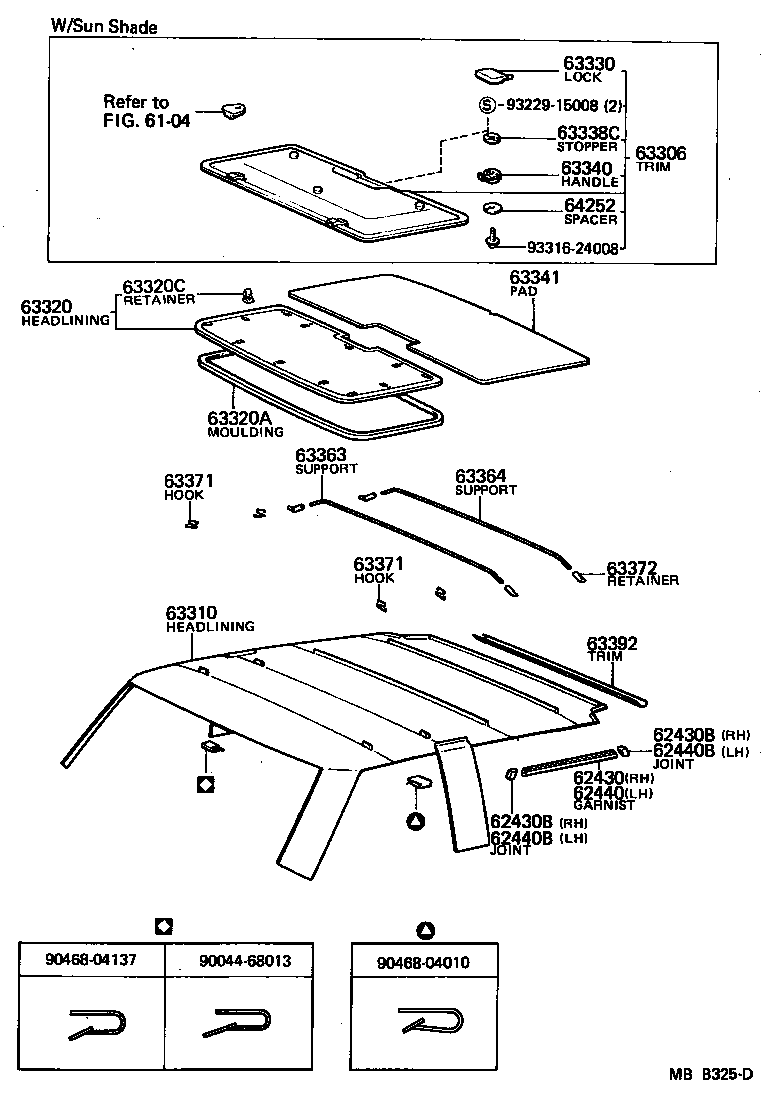

Figure MB8464B MB8464B 1978-02 → — Figure MBB325D MBB325D 1980-05 → — Figure MB8465A MB8465A 1978-10 → —

Part groups

PNCDescription
62430 Garnish Assy, Roof Side Rail, RH
62430B Joint, Roof Side Rail Garnish, RH
62440 Garnish Assy, Roof Side Rail, LH
62440B Joint, Roof Side Rail Garnish, LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320C Retainer, Trim Board(FOR SUN ROOF)
63330 Lock Assy, Sunshade Trim
63338C Stopper, Sunshade Lock, NO.2
63340 Handle Assy, Sunshade Trim Lock
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63392 Trim, Roof Headlining, Rear
64252 Spacer, Sunshade Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
