Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

11 part groups · 2 illustrations

Illustrations

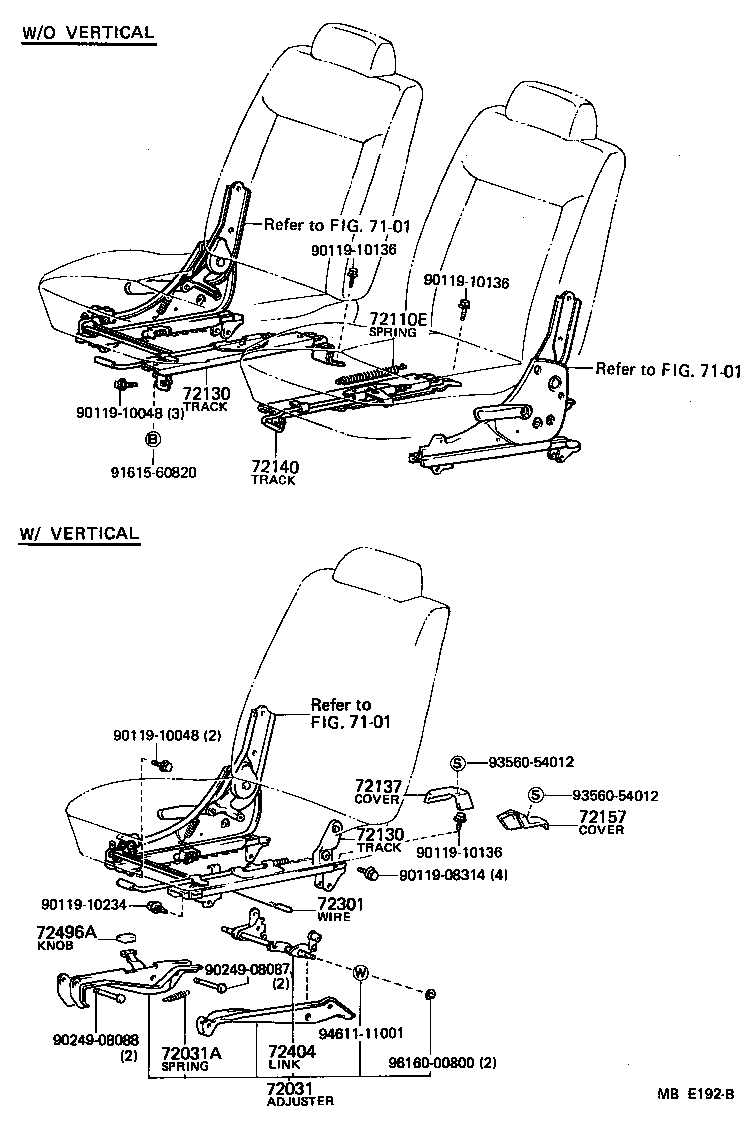

Figure MBB334C MBB334C 1978-02 → 1982-08 Figure MBE192B MBE192B 1982-08 → —

Part groups

PNCDescription
71305 Knob Sub-assy, Front Seat Adjusting
72031 Adjuster Assy, Front Seat Vertical
72031A Spring, Tension (FOR VERTICAL ADJUSTER)
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72130 Track Assy, RH Seat, Inner
72137 Cover, Seat Track, Outer RH
72140 Track Assy, LH Seat, Inner
72157 Cover, Seat Track Bracket, Inner
72301 Wire Sub-assy, Seat Track Equalizing
72404 Link Sub-assy, Vertical Seat
72496A Knob, Vertical Seat Adjuster, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
