Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

14 part groups · 4 illustrations

Illustrations

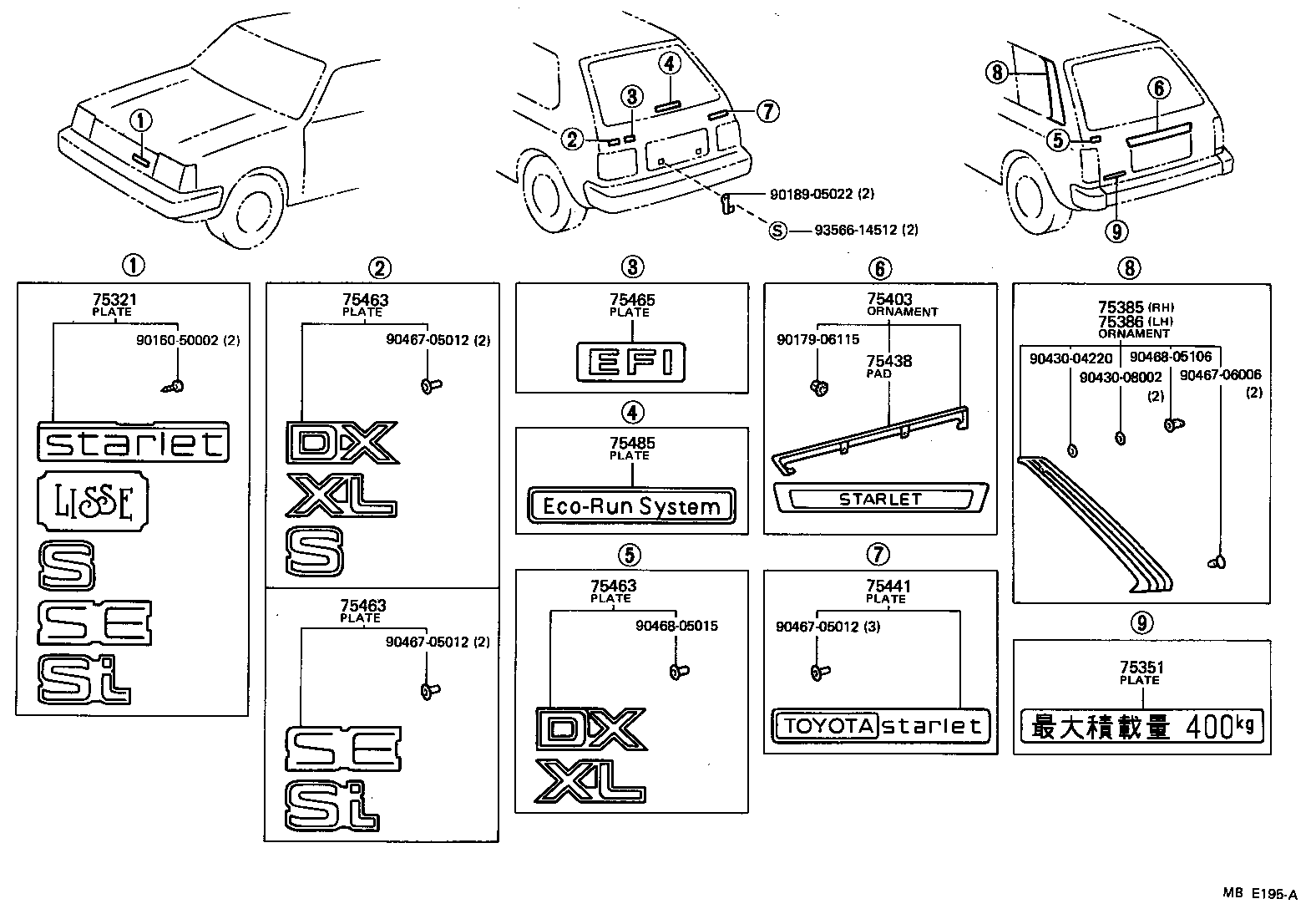

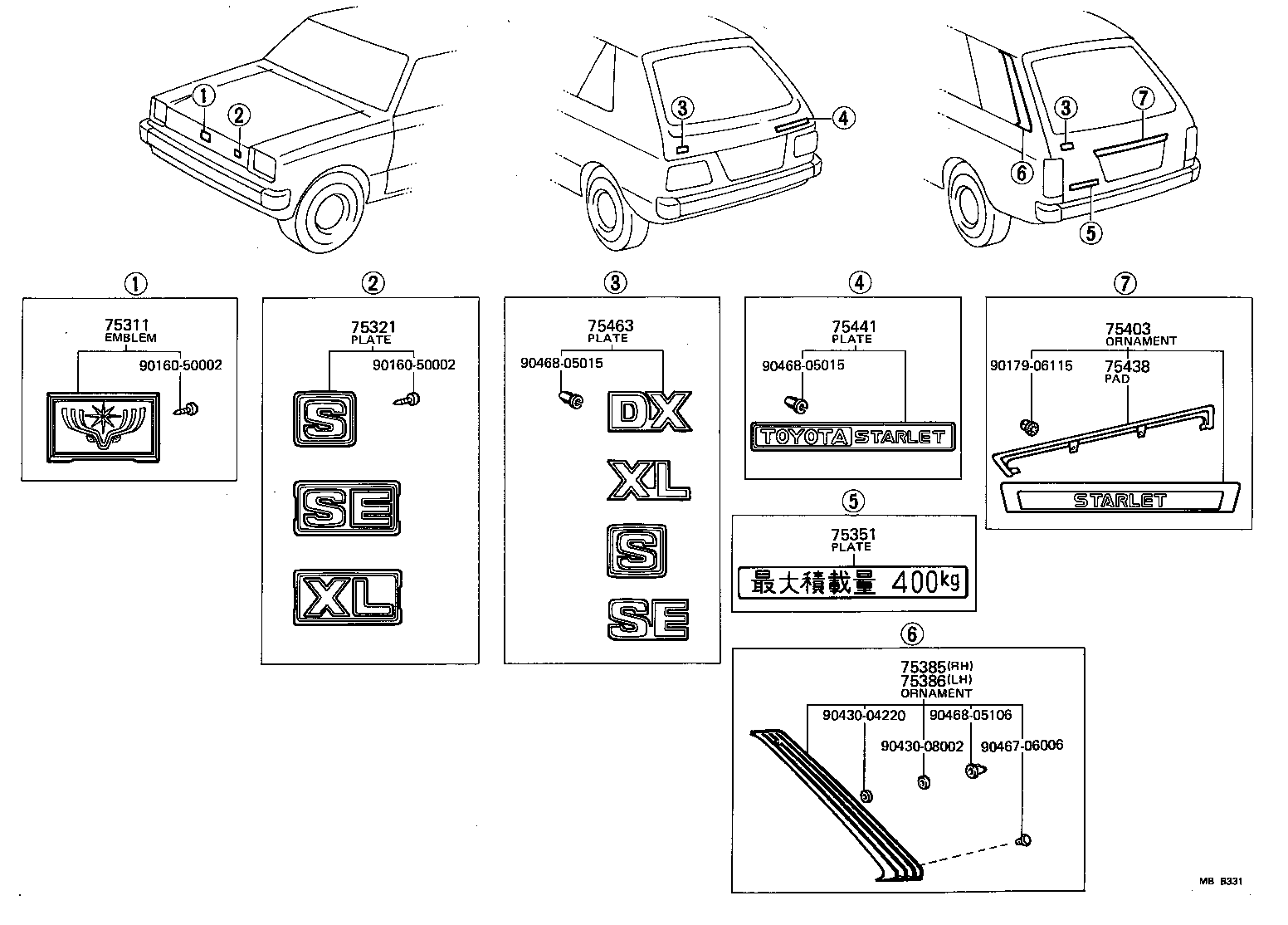

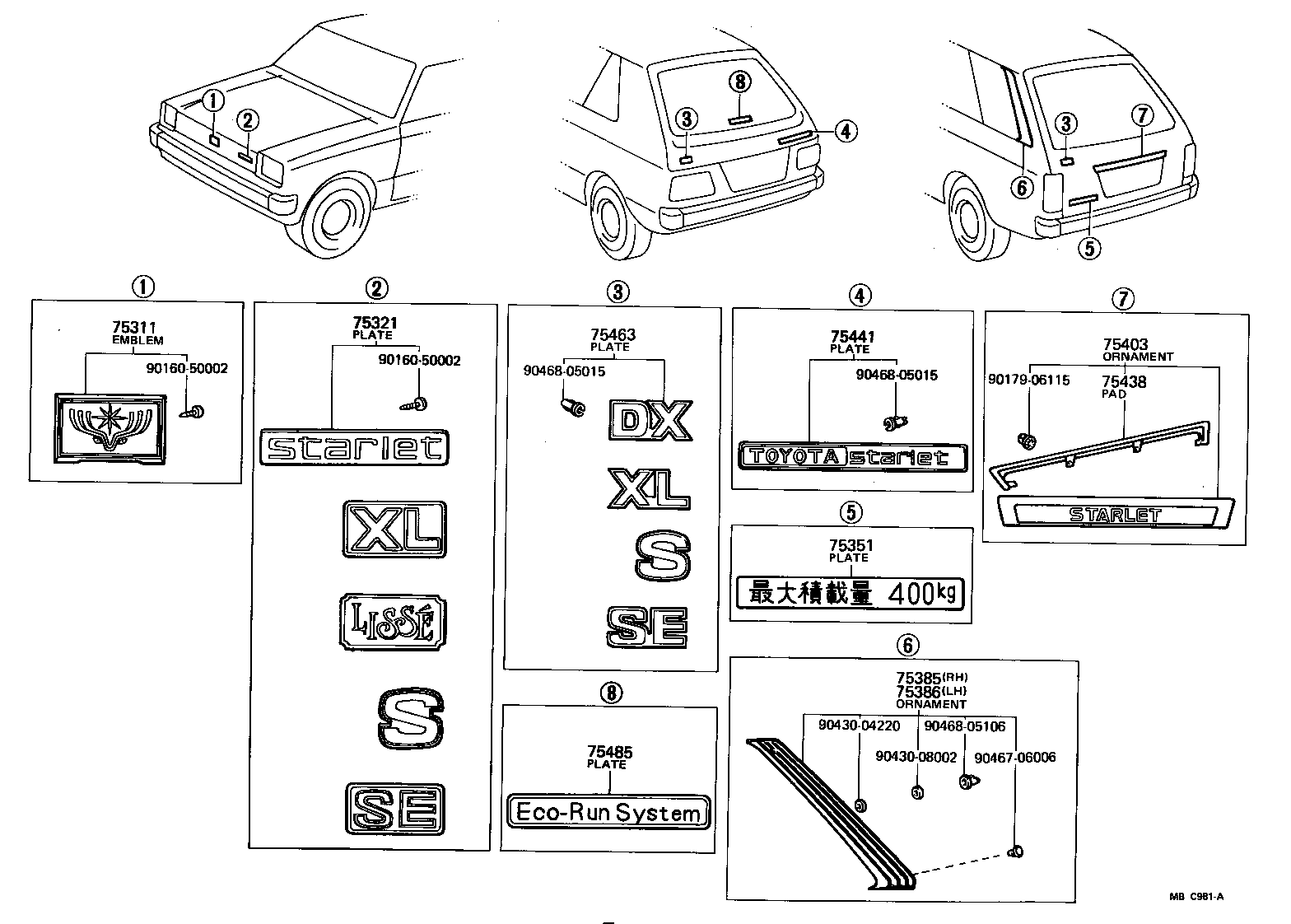

Figure MB8478C MB8478C 1978-02 → 1980-05 Figure MBB331 MBB331 1980-05 → 1981-08 Figure MBC981A MBC981A 1981-08 → 1982-08 Figure MBE195A MBE195A 1982-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75323 Retainer, Radiator Grille
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75385 Ornament, Roof Side, RH
75386 Ornament, Roof Side, LH
75403 Ornament Sub-assy, Back Door
75438 Pad, Back Door Ornament
75441 Plate, Rear Name, NO.1
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
