Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

48 part groups · 12 illustrations

Illustrations

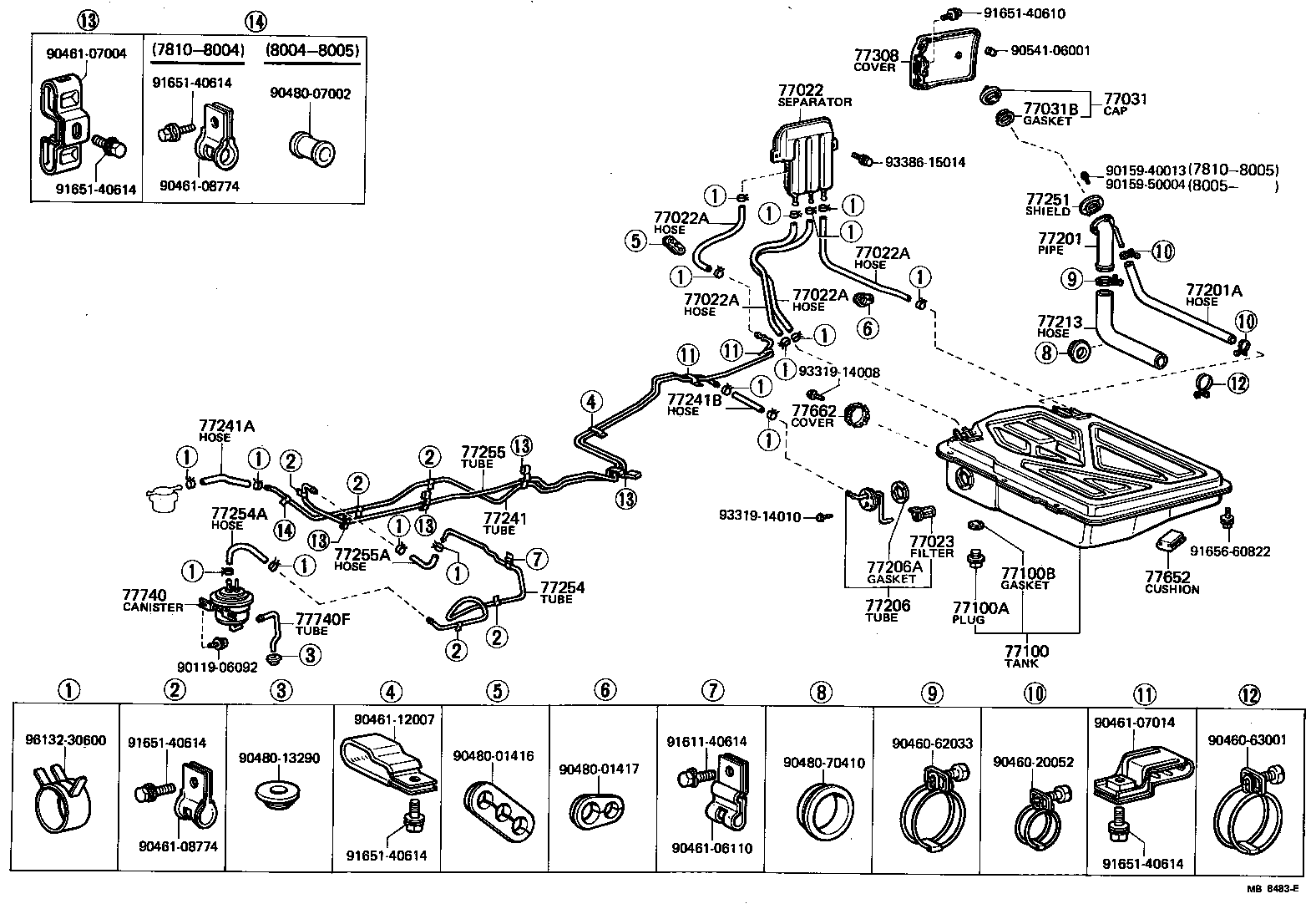

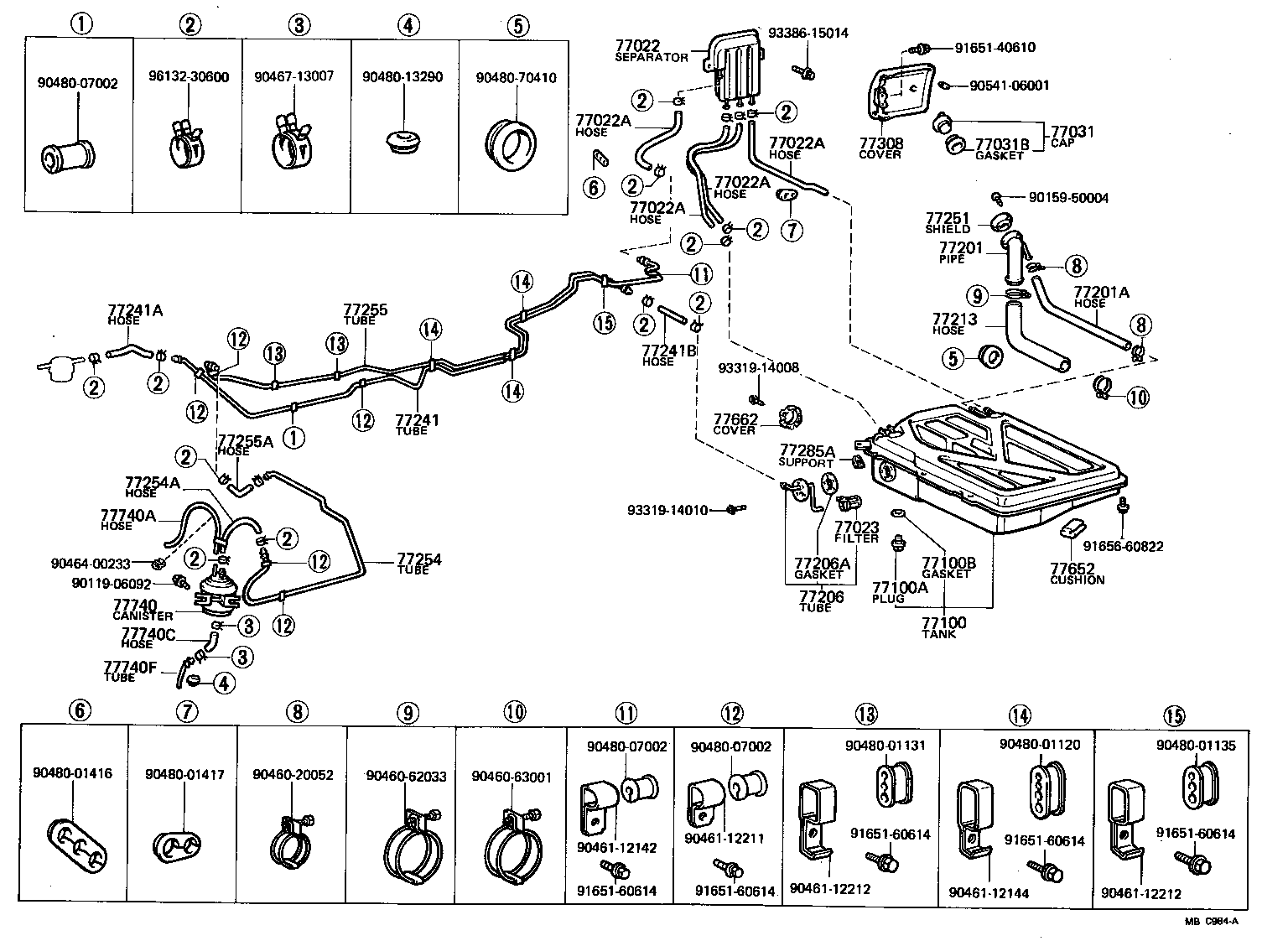

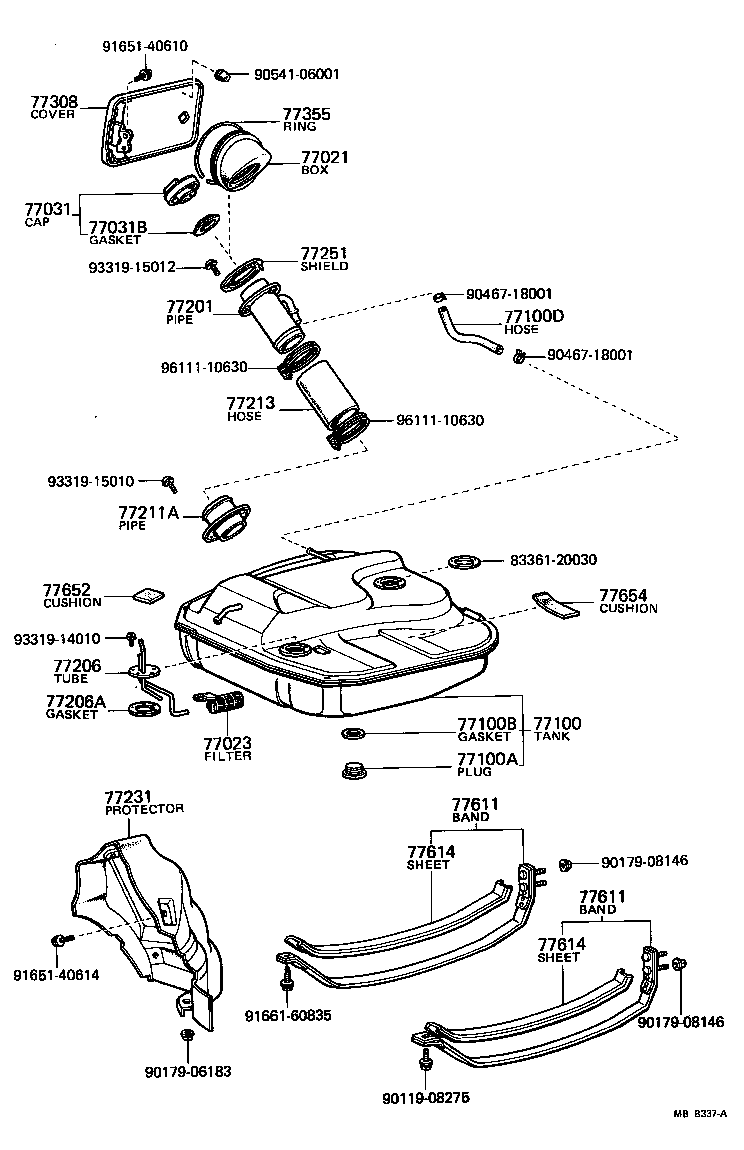

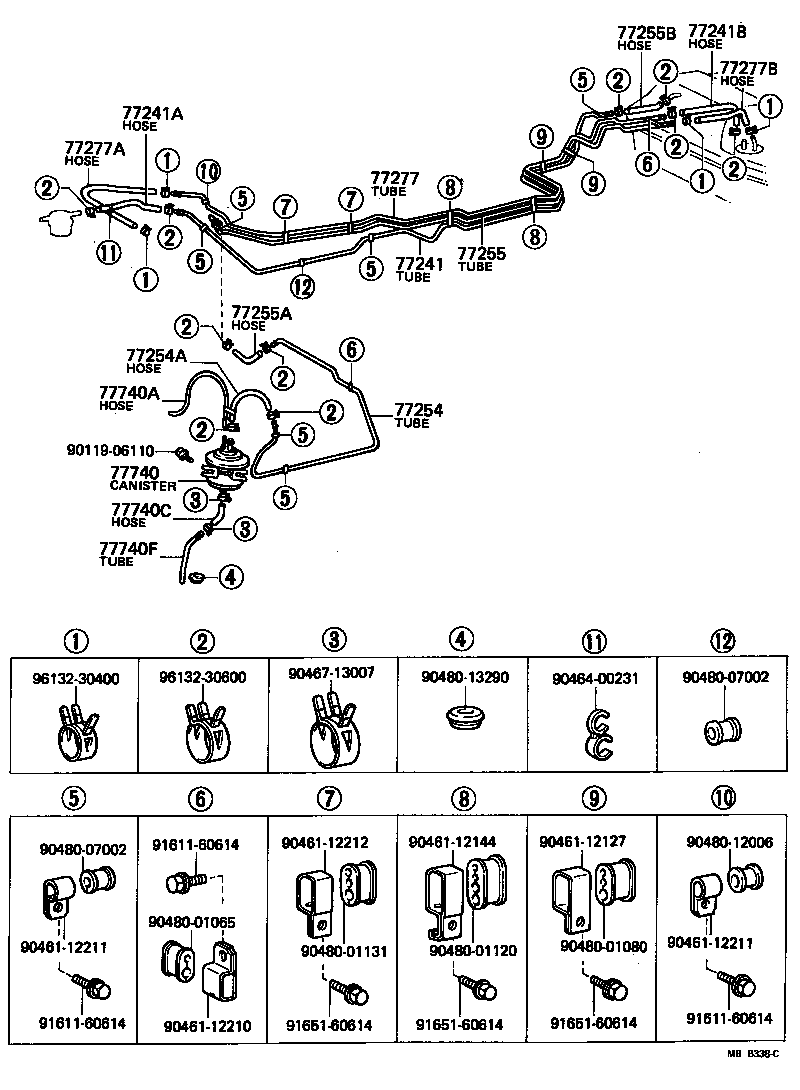

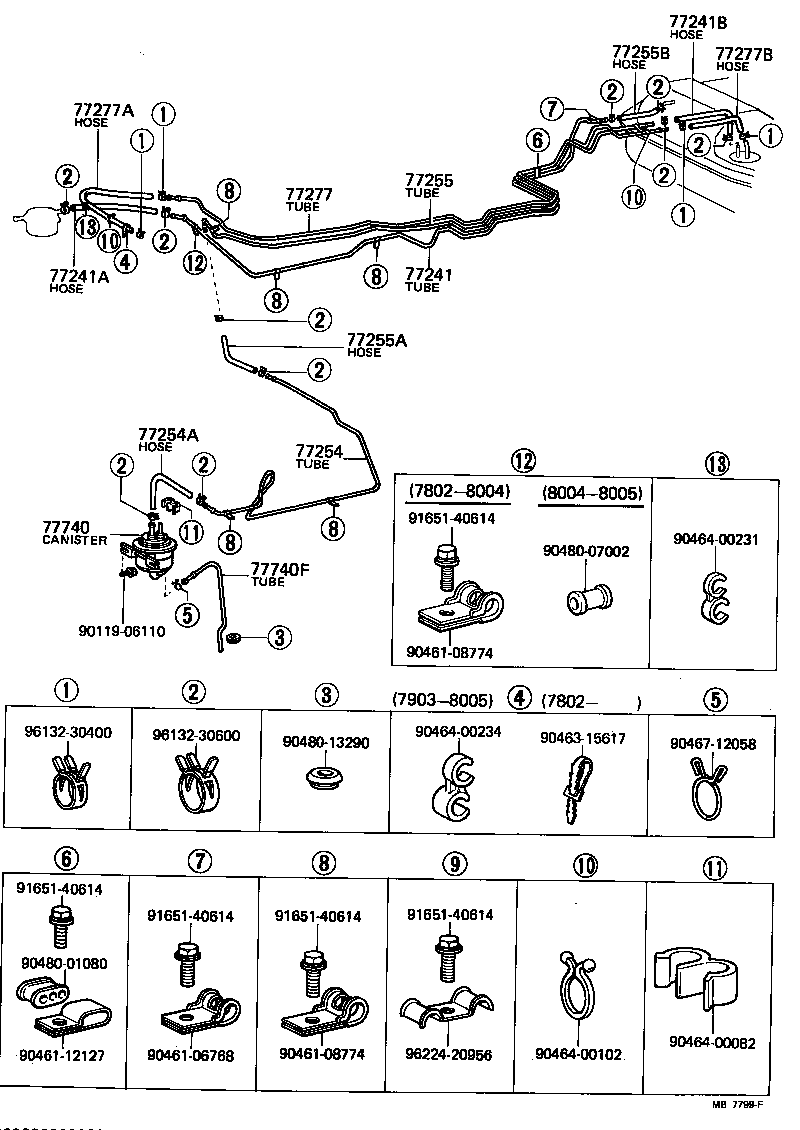

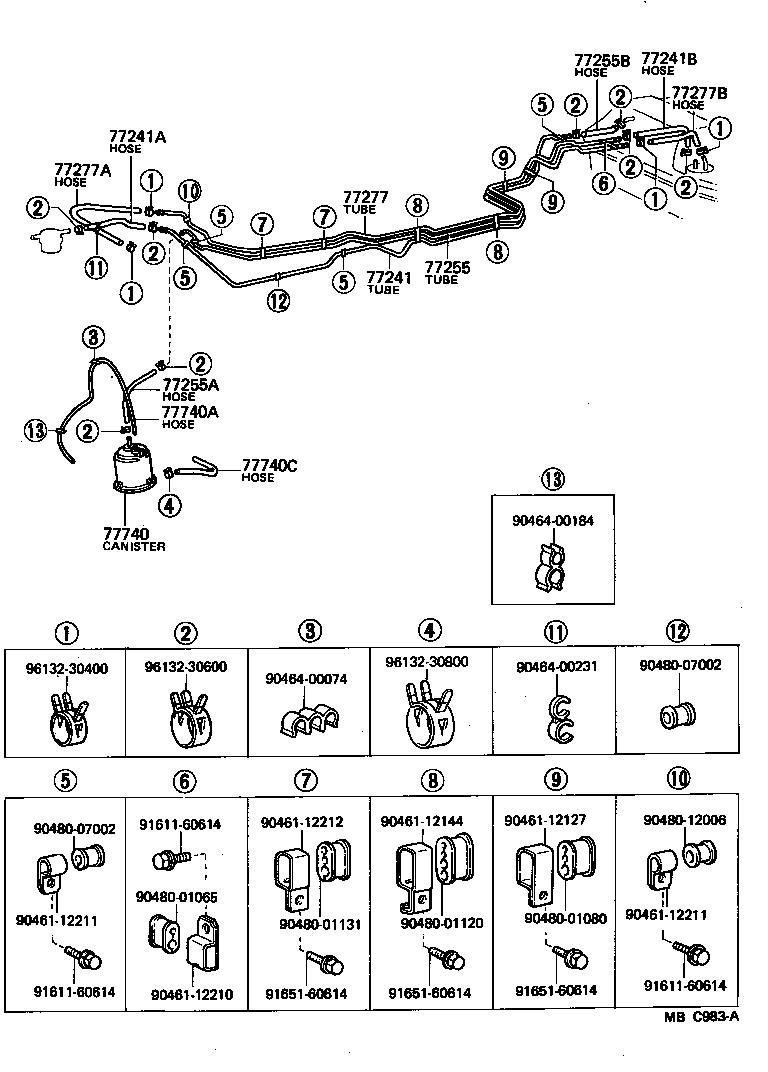

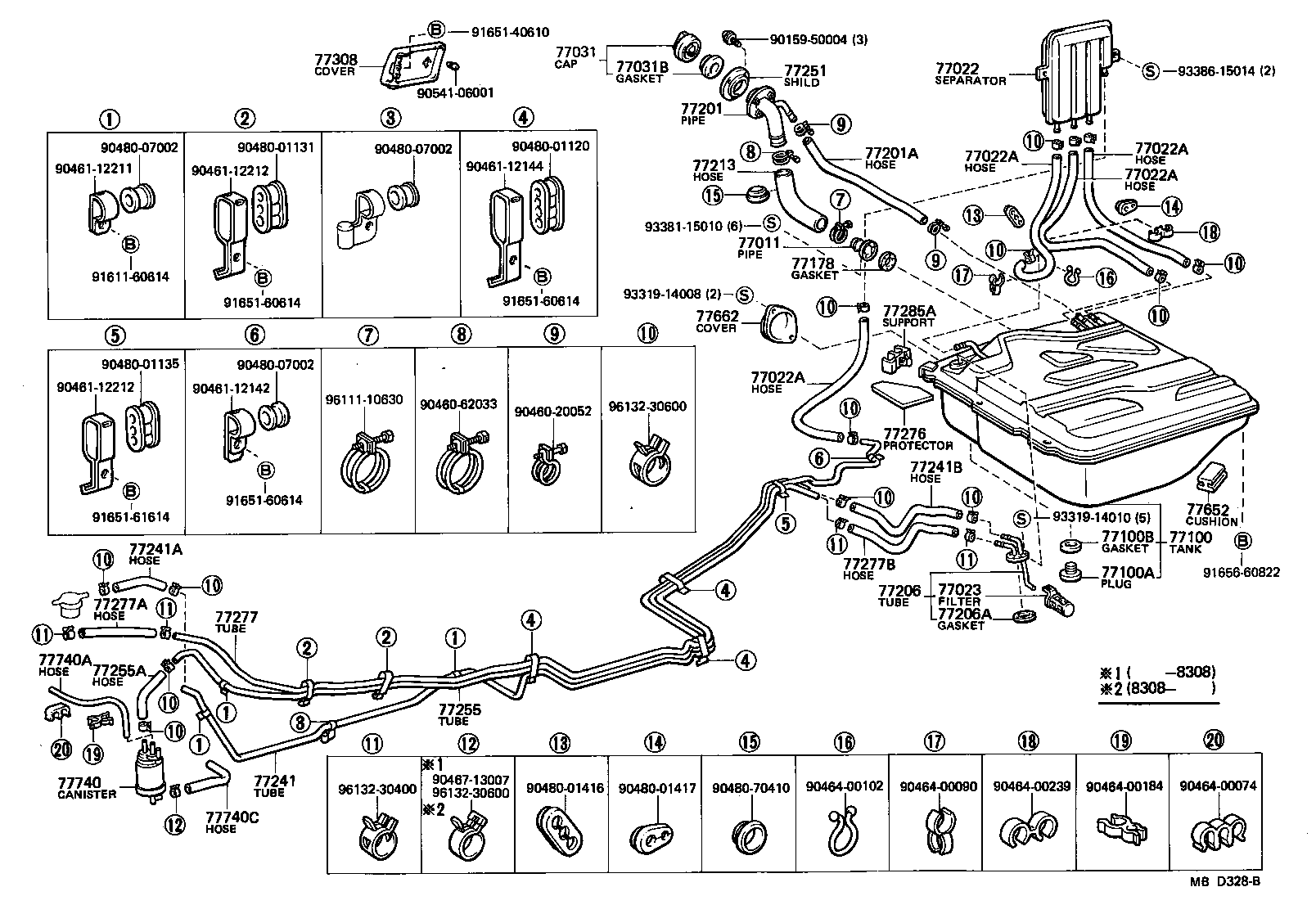

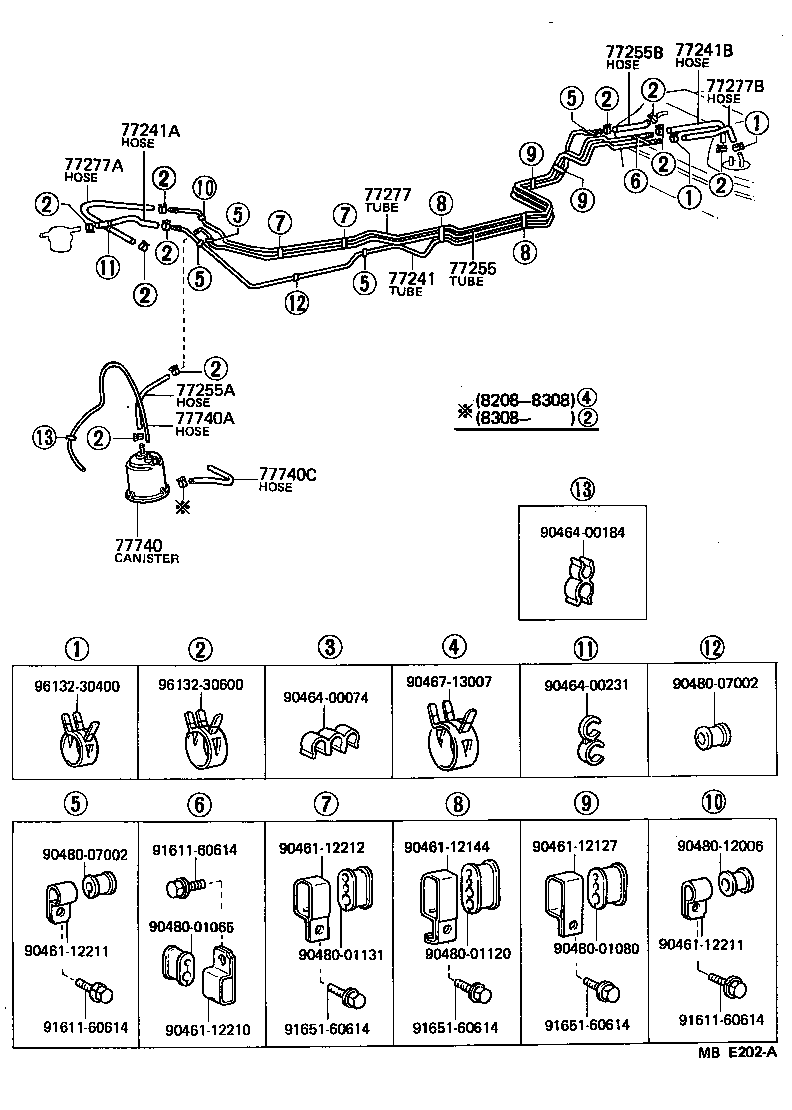

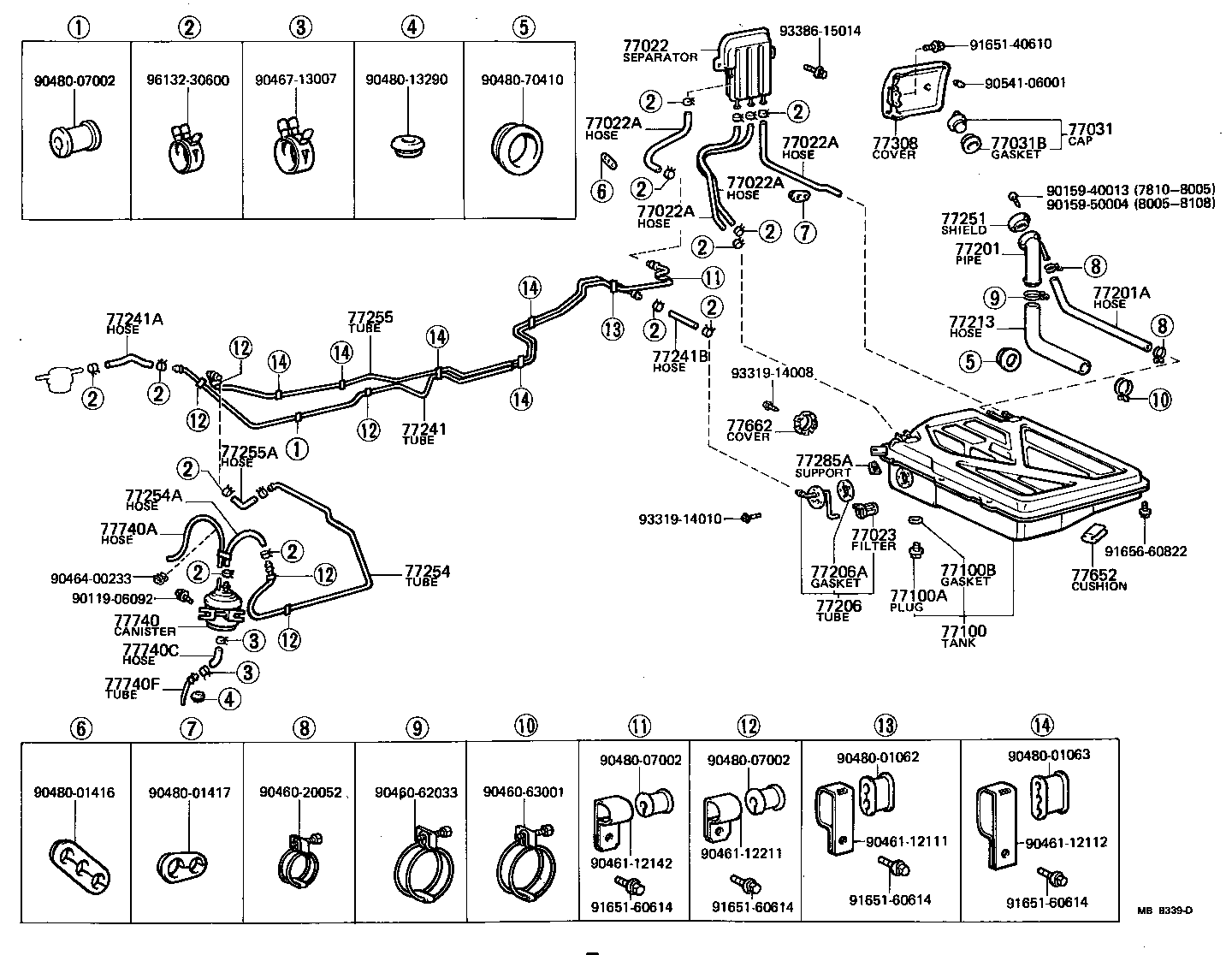

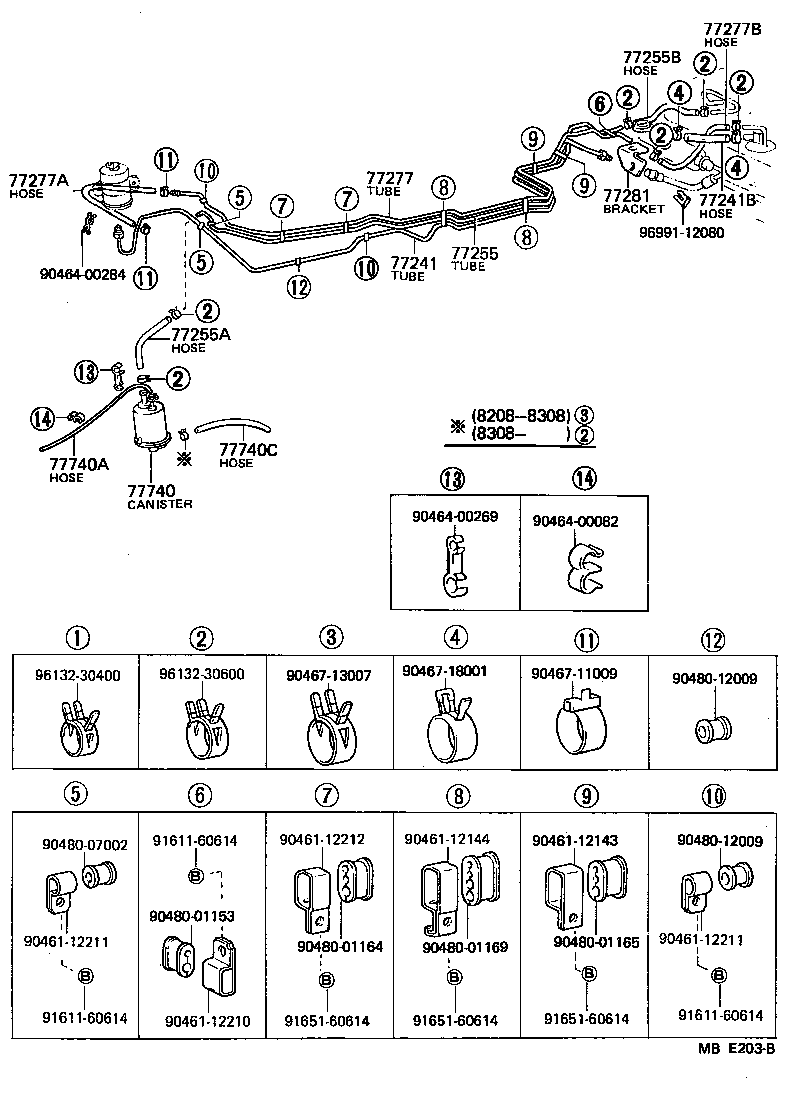

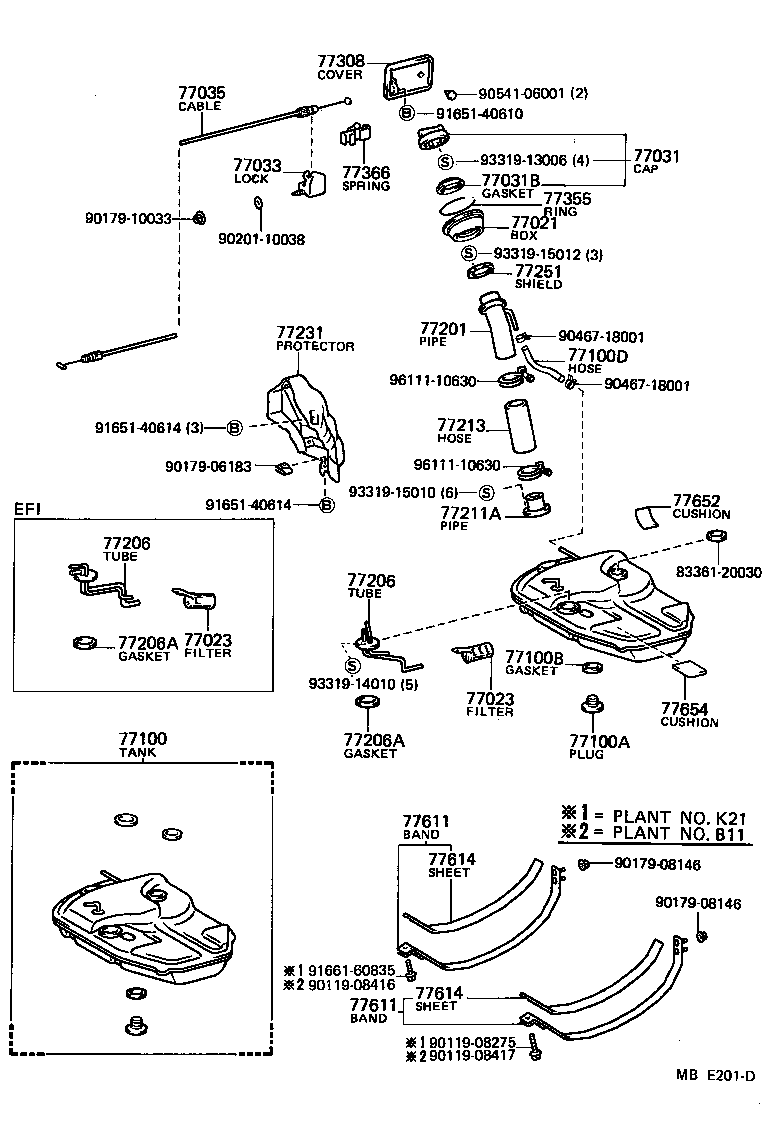

Figure MB7801E MB7801E 1978-02 → 1980-05 Figure MB7799F MB7799F 1978-02 → 1980-05 Figure MBB337A MBB337A 1980-05 → 1982-08 Figure MBB338C MBB338C 1980-05 → 1981-08 Figure MBC983A MBC983A 1981-08 → 1982-08 Figure MBE201D MBE201D 1982-08 → — Figure MBE202A MBE202A 1982-08 → — Figure MBE203B MBE203B 1982-08 → — Figure MB8483E MB8483E 1978-10 → 1980-05 Figure MBB339D MBB339D 1980-05 → 1981-08 Figure MBC984A MBC984A 1981-08 → 1982-01 Figure MBD328B MBD328B 1982-01 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77021 Box Assy, Fuel Tank Inlet
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77178 Gasket, Fuel Tank Filler Pipe, Lower
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77211A Pipe, Fuel Tank Filler, Lower
77213 Hose, Fuel Tank Sub Inlet
77231 Protector, Inlet Tube
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77251 Shield, Fuel Tank, Inlet, NO.1
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77255B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2)
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77281 Bracket, Fuel Main Tube, NO.1
77285A Support, Fuel Return And Main Tube
77308 Cover Sub-assy, Fuel Inlet Box
77355 Ring, Inlet Box
77366 Spring, Fuel Filler Opening Lid Hinge
77611 Band, Fuel Tank
77614 Seat, Fuel Tank Band
77652 Cushion, Fuel Tank, NO.1
77654 Cushion, Fuel Tank, NO.2
77662 Cover, Fuel Tank Gage
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
