Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 10 illustrations

Illustrations

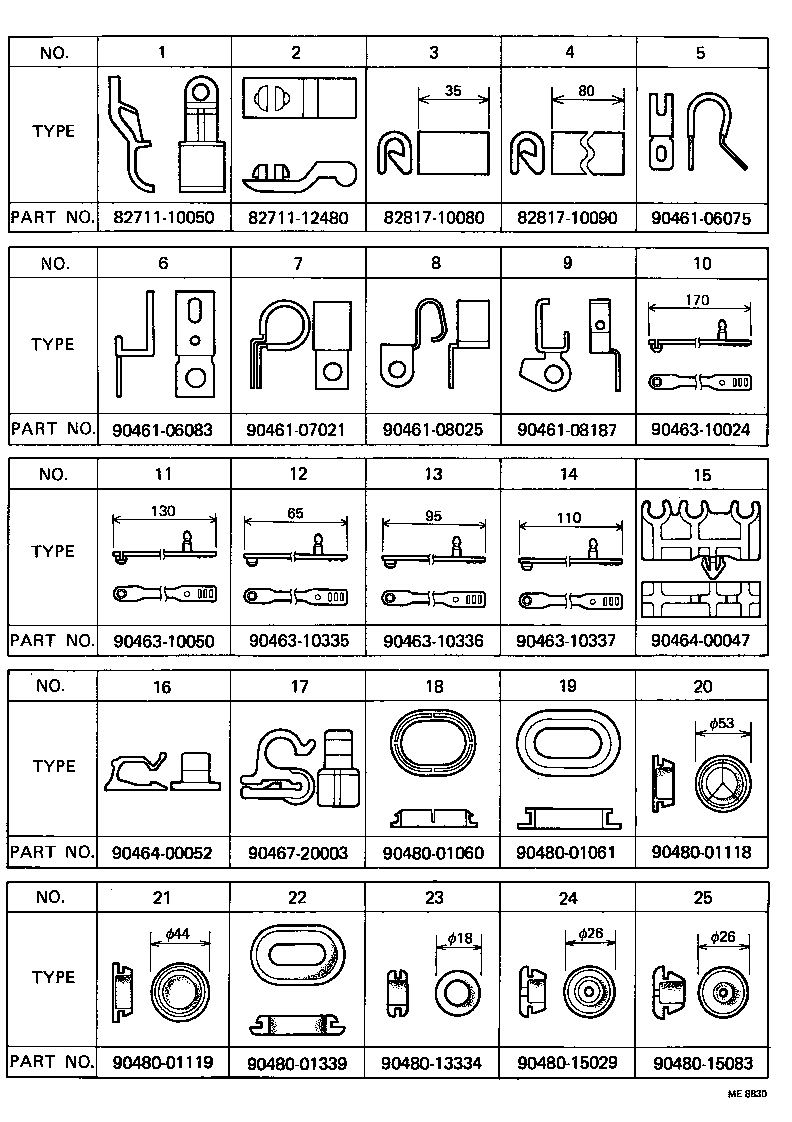

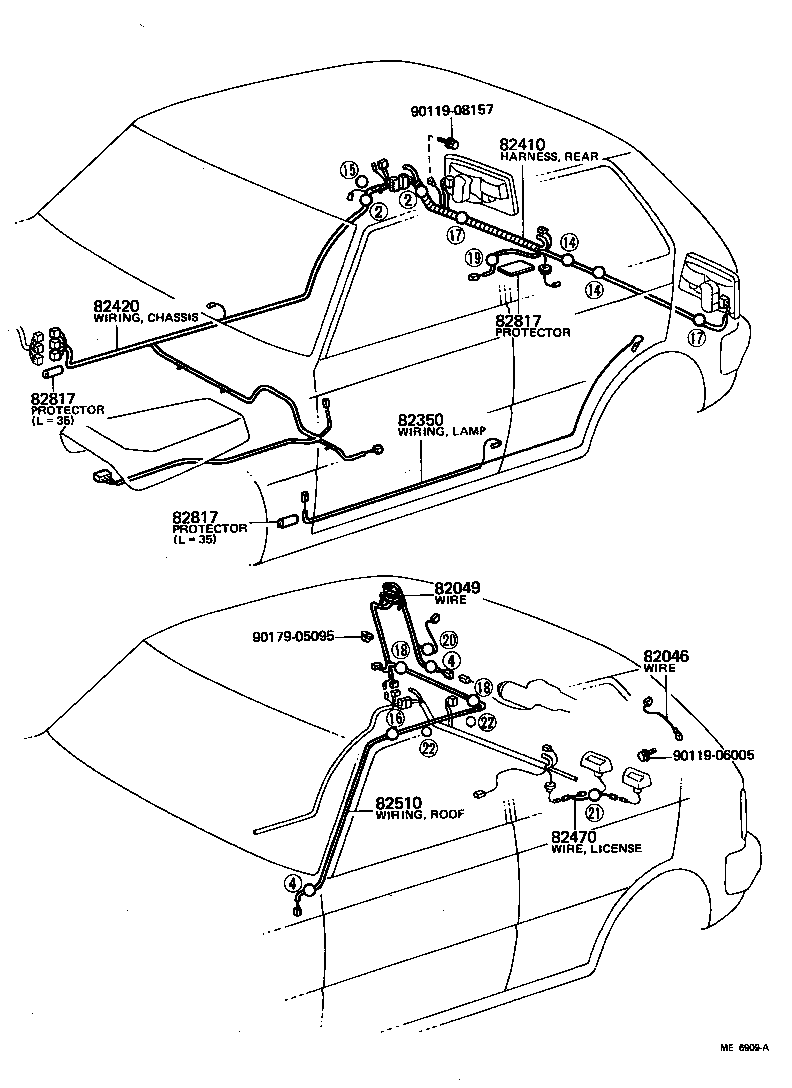

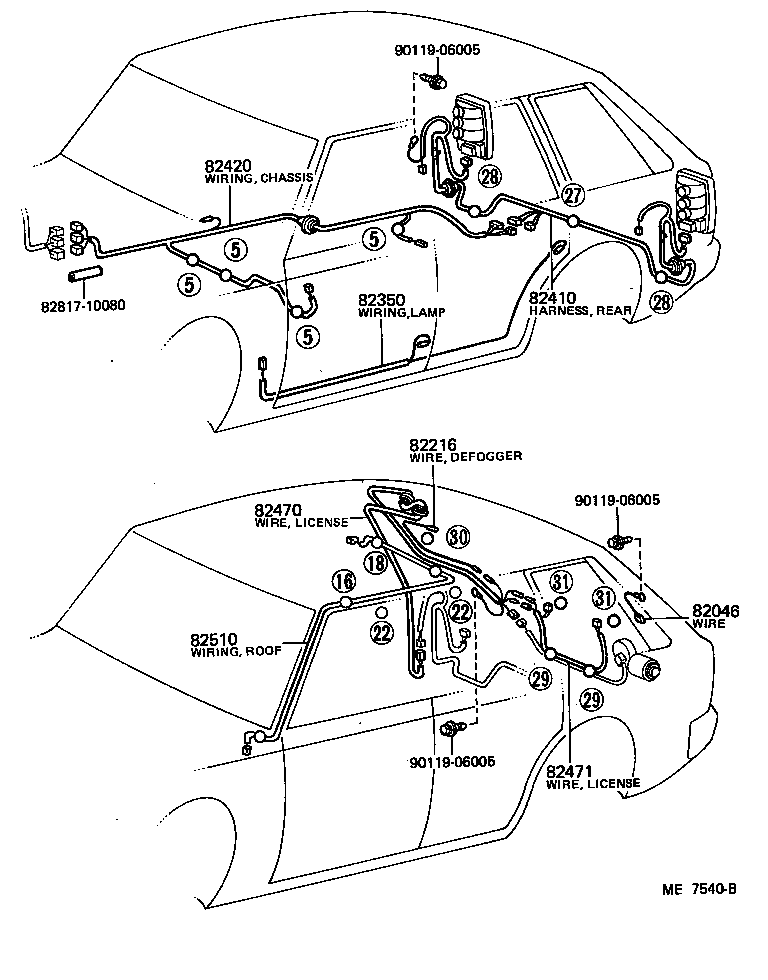

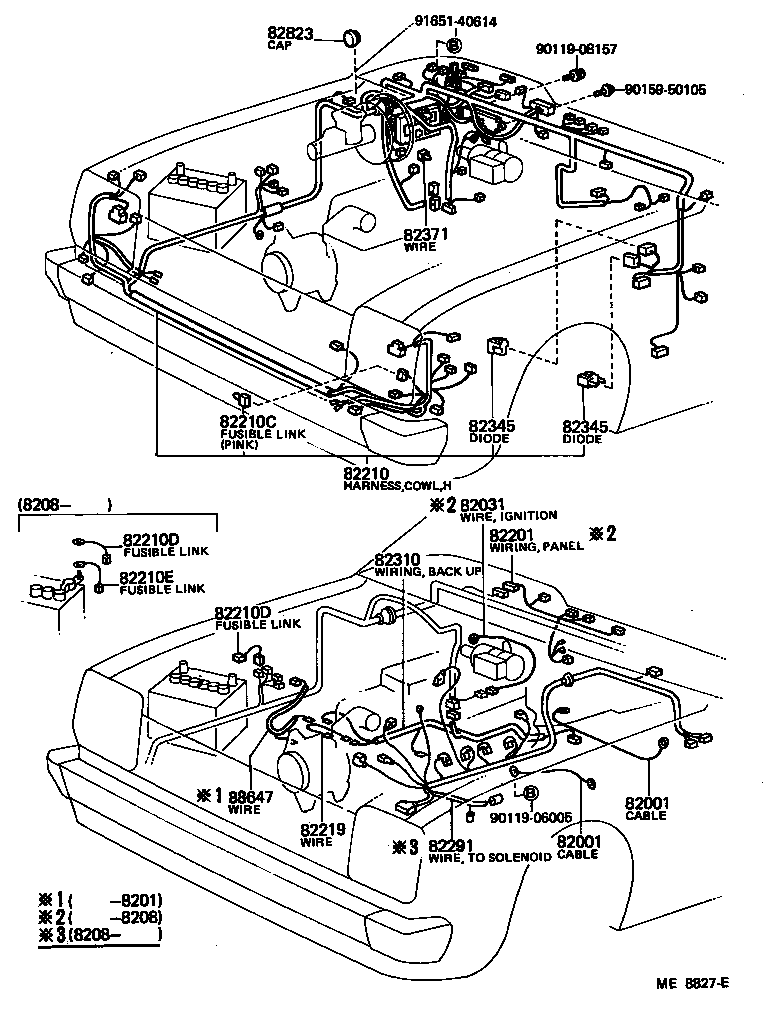

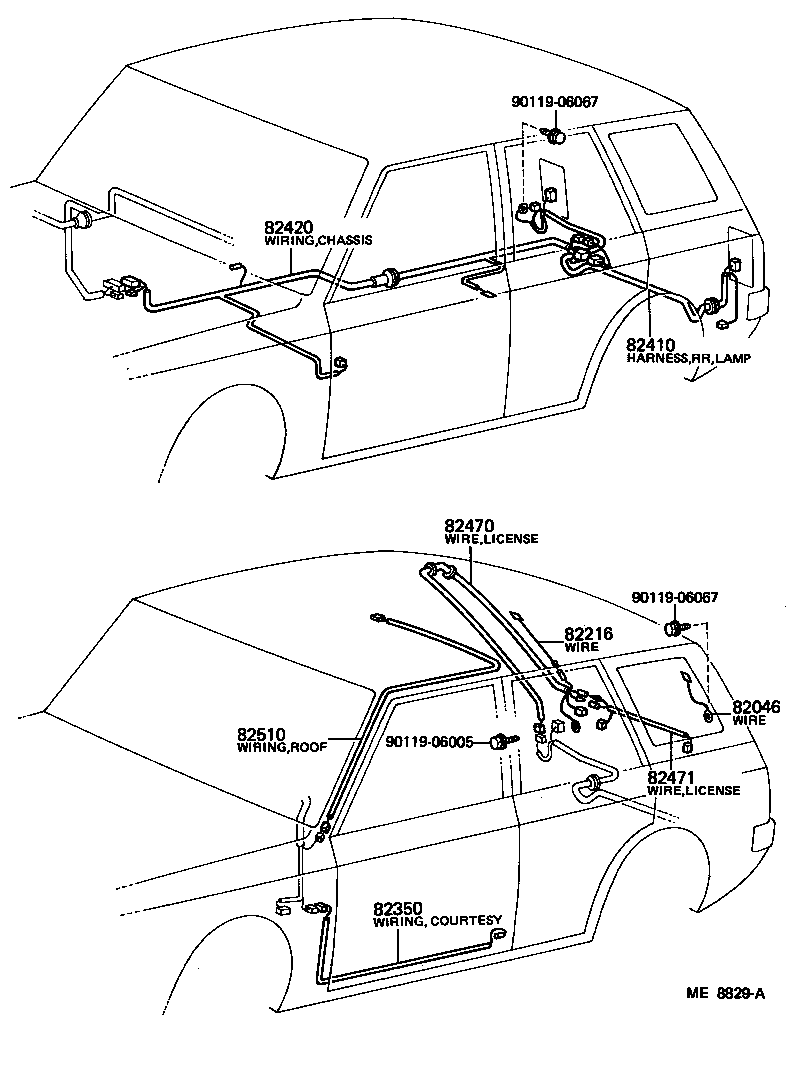

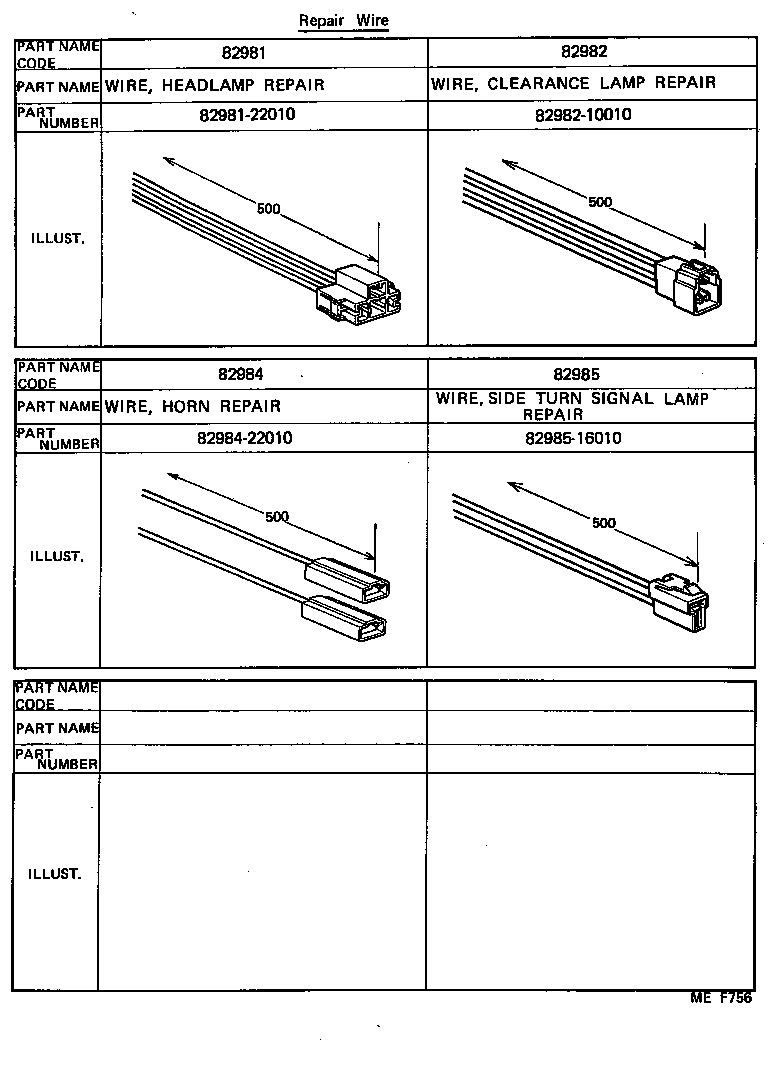

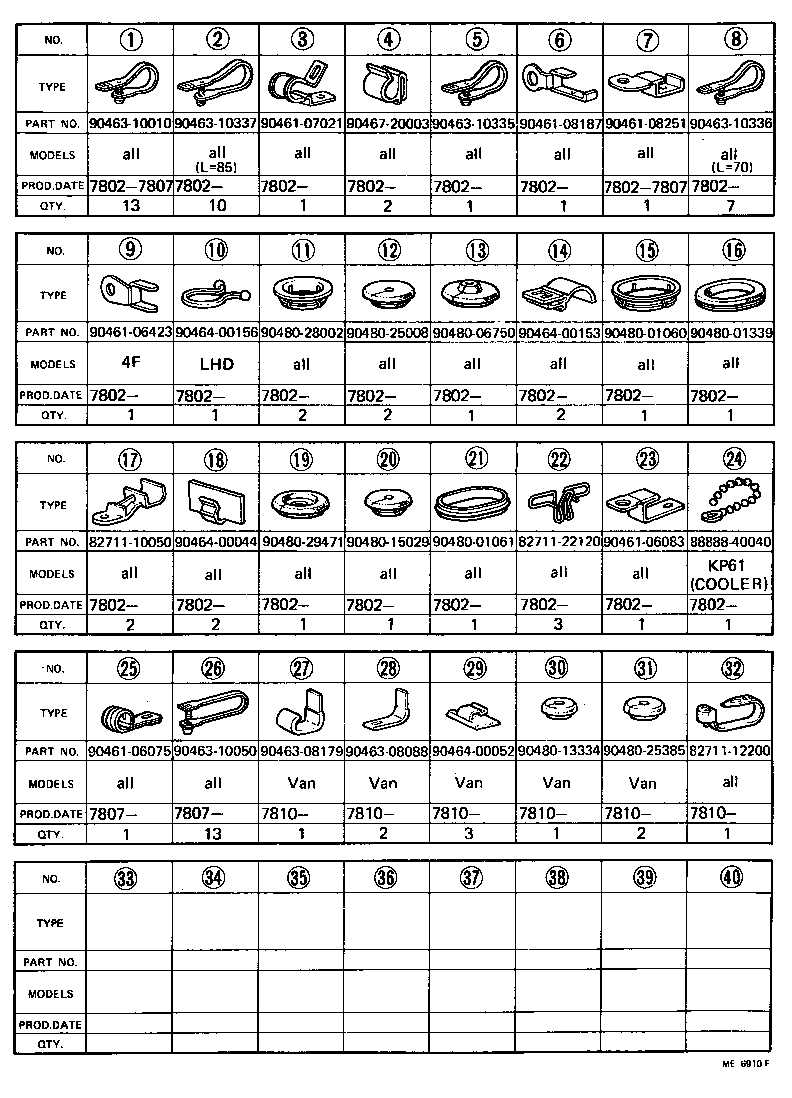

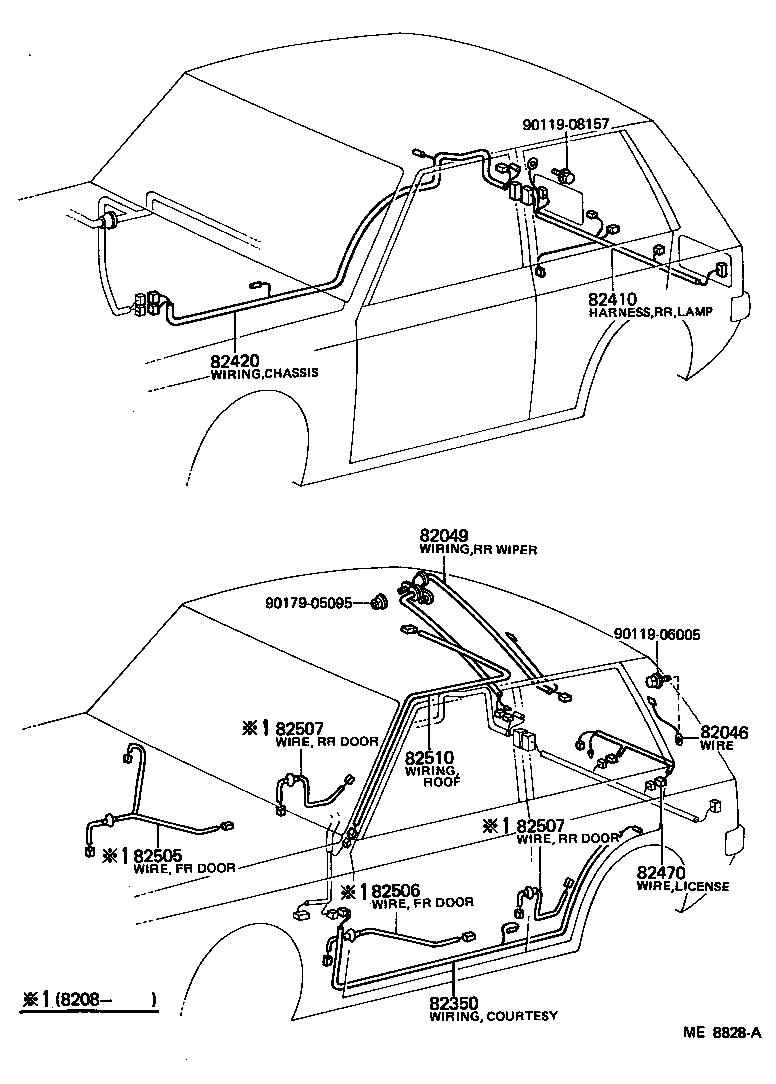

Figure ME6908E ME6908E 1978-02 → 1980-05 Figure ME6909A ME6909A 1978-02 → 1980-05 Figure ME7540B ME7540B 1978-10 → 1980-05 Figure ME6910F ME6910F 1978-02 → 1980-05 Figure ME8827E ME8827E 1980-05 → — Figure ME8828A ME8828A 1980-05 → — Figure ME8829A ME8829A 1980-05 → — Figure ME8830 ME8830 1980-05 → — Figure ME8831F ME8831F 1980-05 → — Figure MEF756 MEF756 1981-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82028 Wiring Sub-assy, Cowl
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82049 Wiring Sub-assy, Rear Wiper
82201 Wiring Sub-assy, Instrument Panel
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82241C Wire, Relay
82291 Wiring, TO Solenoid
82310 Wiring Assy, TO Back UP Lamp Switch
82345 Diode
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82371 Wire, Wiper Relay
82410 Harness Assy, Wiring TO Rear Lamp
82420 Wiring Assy, Chassis
82470 Wire Assy, License Lamp Feed
82471 Wire, License Lamp Feed, NO.2
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
88647 Wire Sub-assy, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
