Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Indicator

10 part groups · 3 illustrations

Illustrations

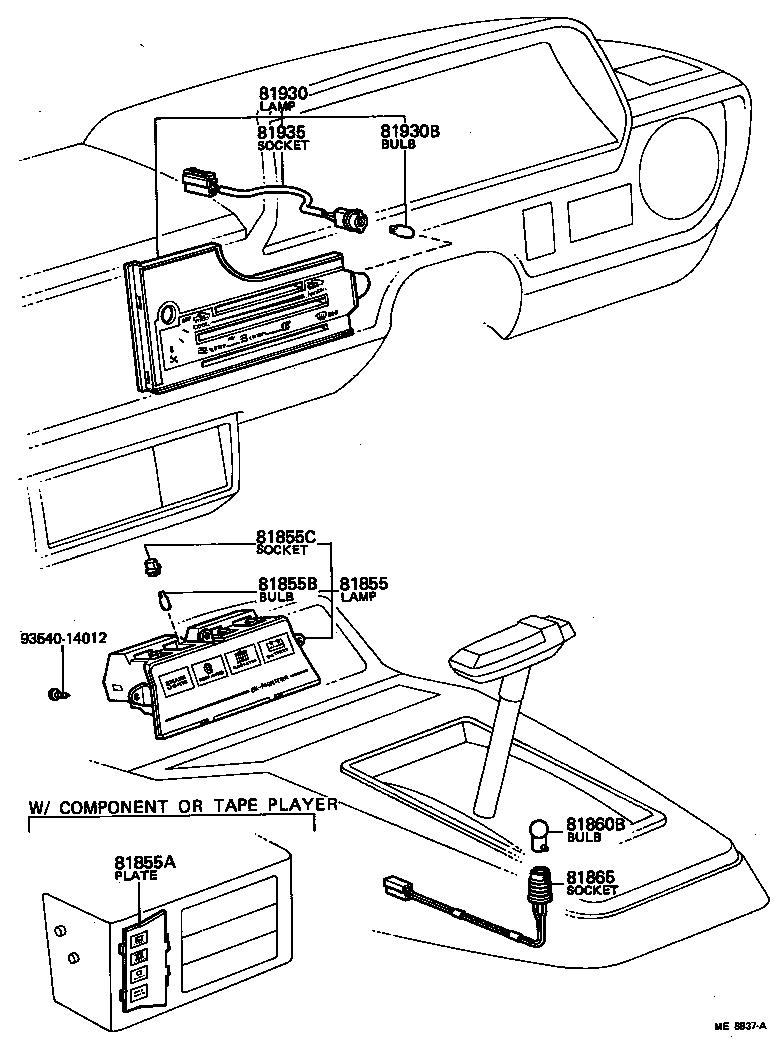

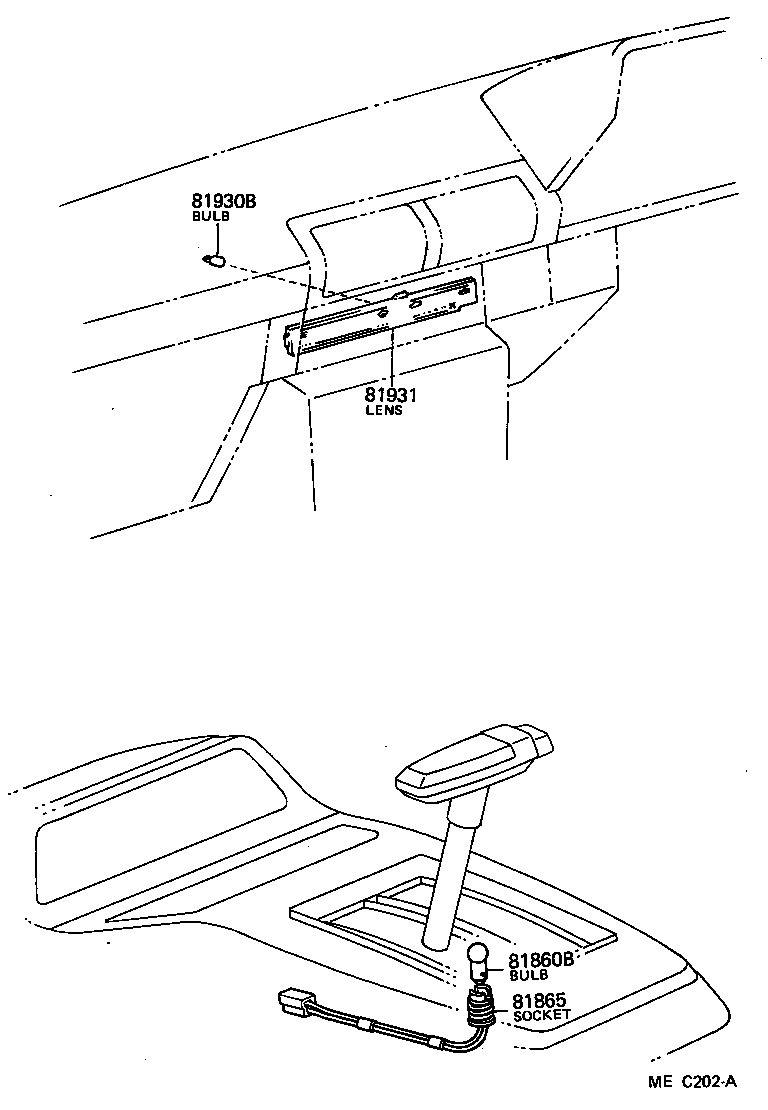

Figure ME6913 ME6913 1978-02 → 1980-05 Figure ME8837A ME8837A 1980-05 → 1982-08 Figure MEC202A MEC202A 1982-08 → —

Part groups

PNCDescription
81855 Lamp Assy, Indicator (FOR OK MONITER)
81855A Plate, Indicator Lamp (FOR OK MONITOR)
81855B Bulb, Indicator Lamp (FOR OK MONITER)
81855C Socket & Wire, Indicator Lamp
81860B Bulb, Transmission Indicator Lamp
81865 Socket And Wire, Transmission Indicator Lamp
81930 Lamp Assy, Heater Control Indicator, NO.1
81930B Bulb, Heater Control Indicator Lamp
81931 Lens, Heater Control Indicator
81935 Socket And Wire, Heater Control Indicator Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
