Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan
Discontinued model
Data version 1985-03

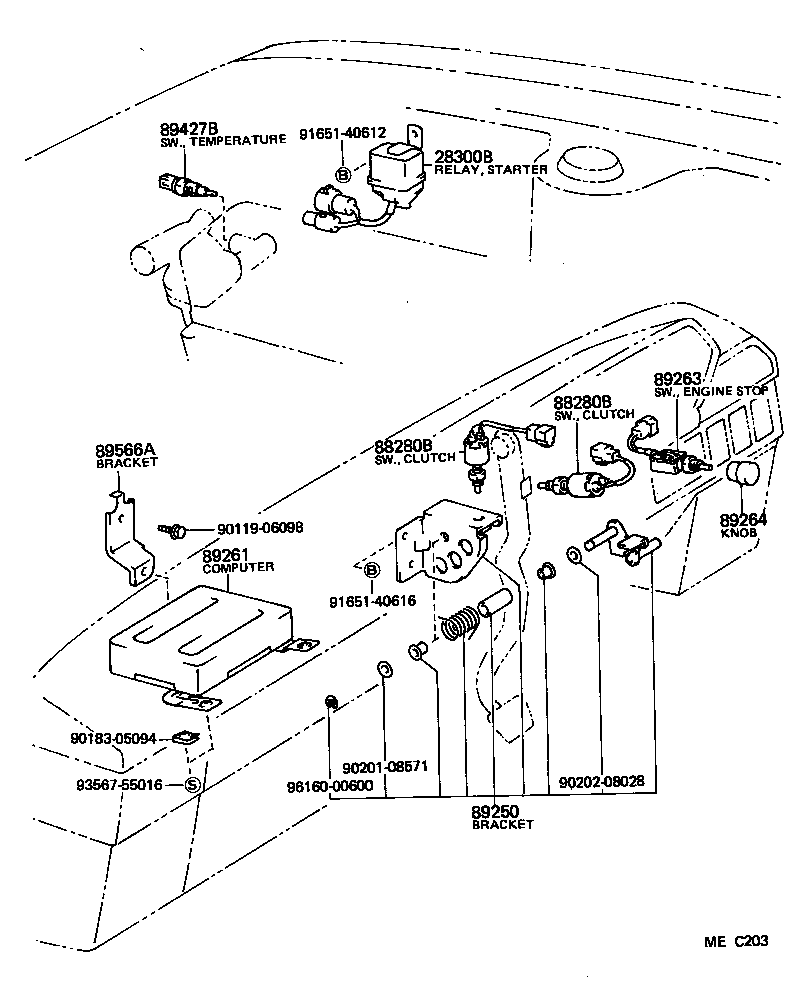

Eco-run System
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300B | Relay Assy, Starter |
| 88280B | Switch Assy, Clutch |
| 89250 | Bracket Assy, Clutch Switch |
| 89263 | Switch, Engine Stop And Start |
| 89264 | Knob, Engine Stop & Start |
| 89427B | Switch, Temperature Detect (FOR ERS) |
| 89566A | Bracket, Fuel Injection Computer (FOR ERS) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
