Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

28 part groups · 11 illustrations

Illustrations

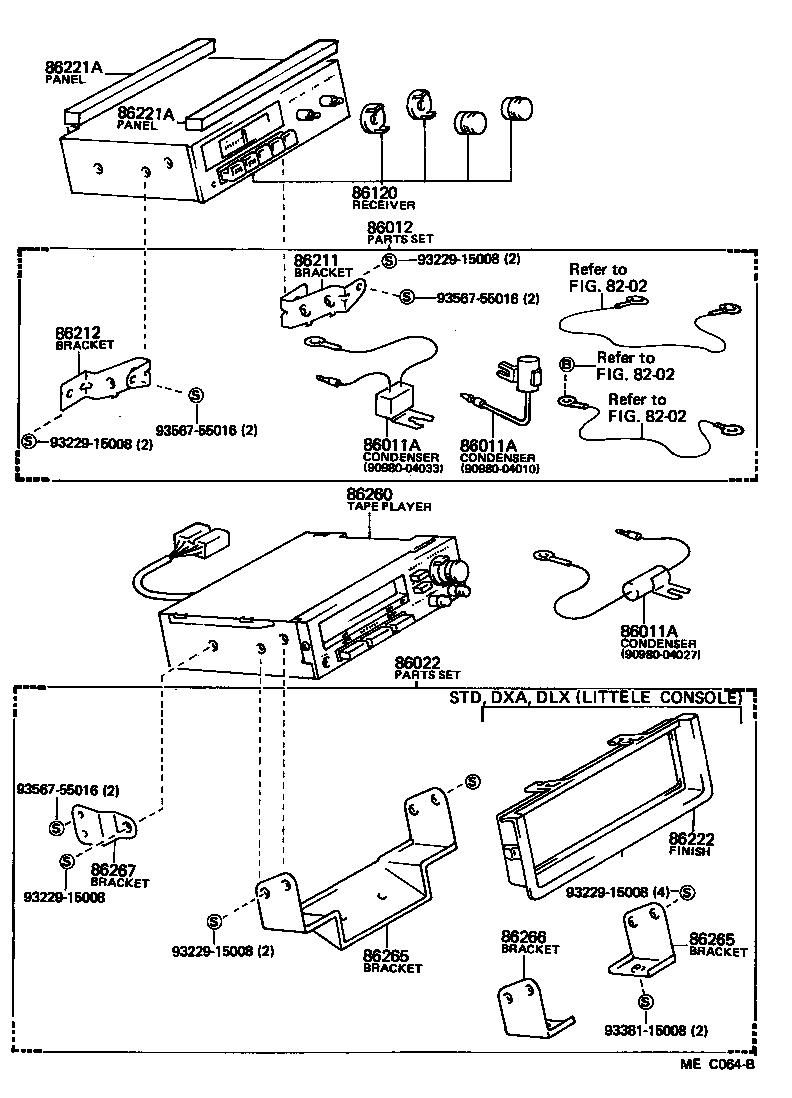

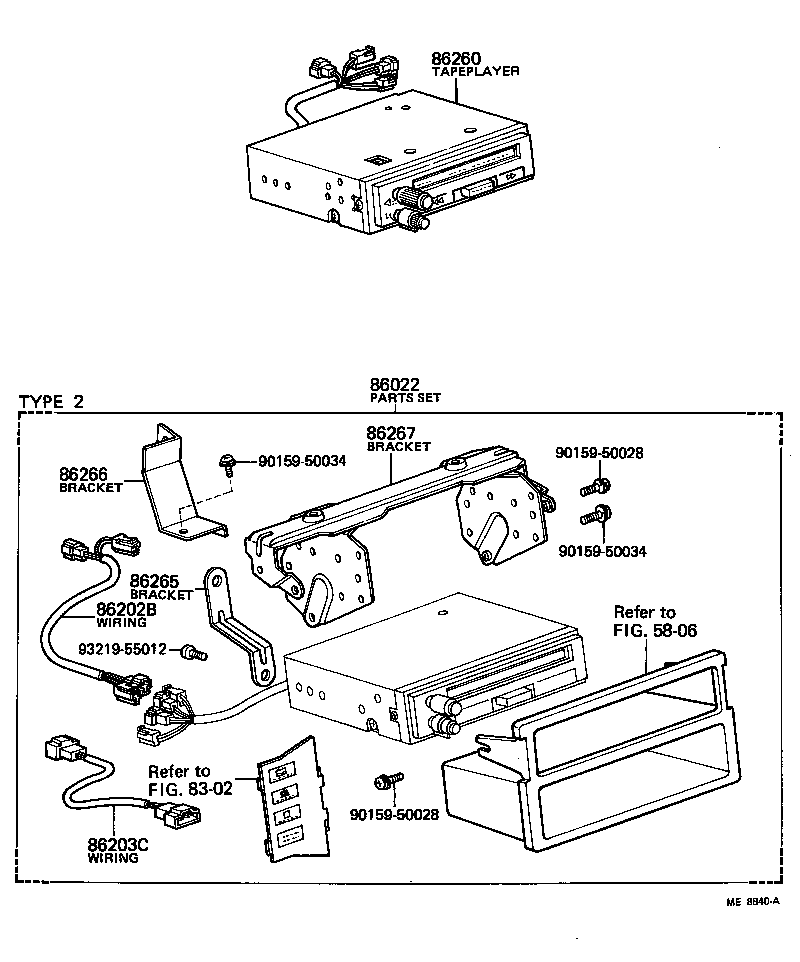

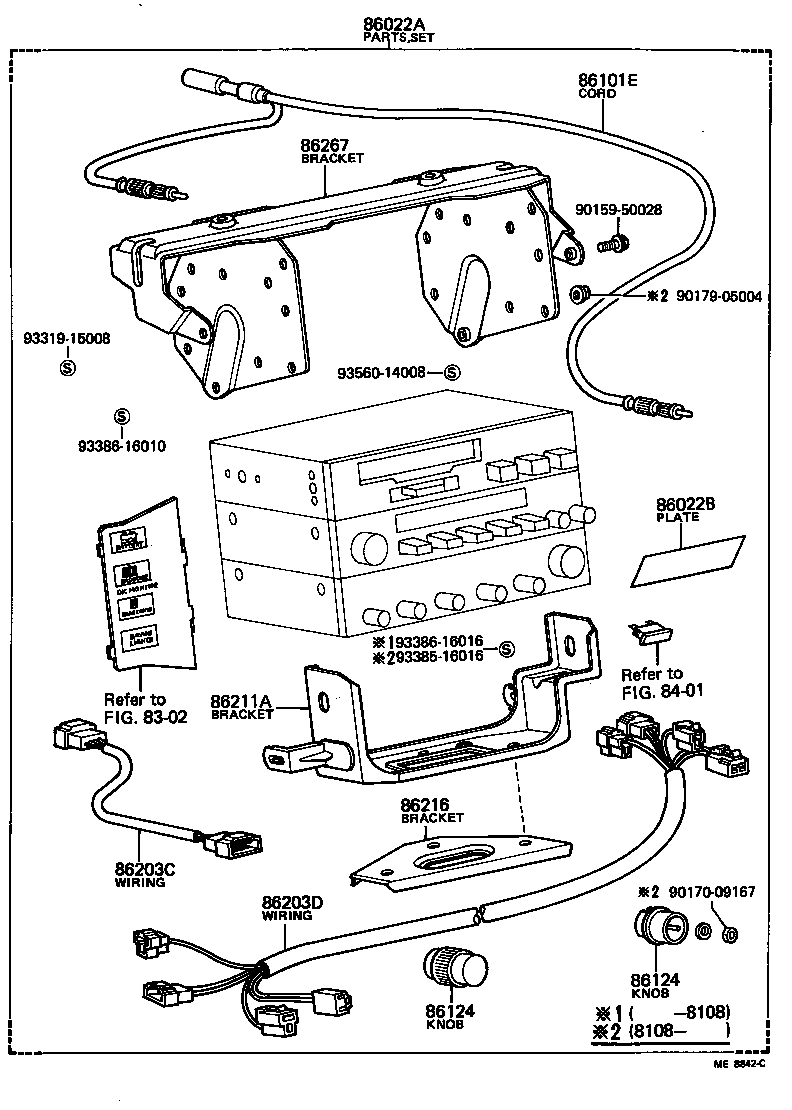

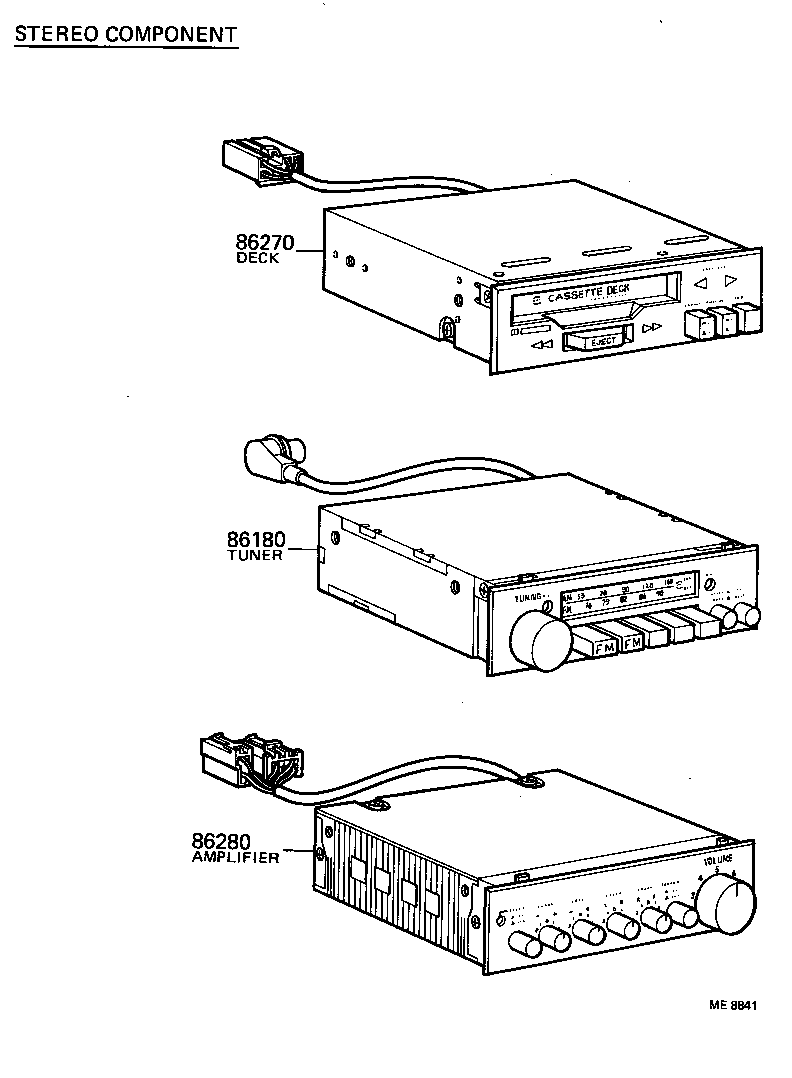

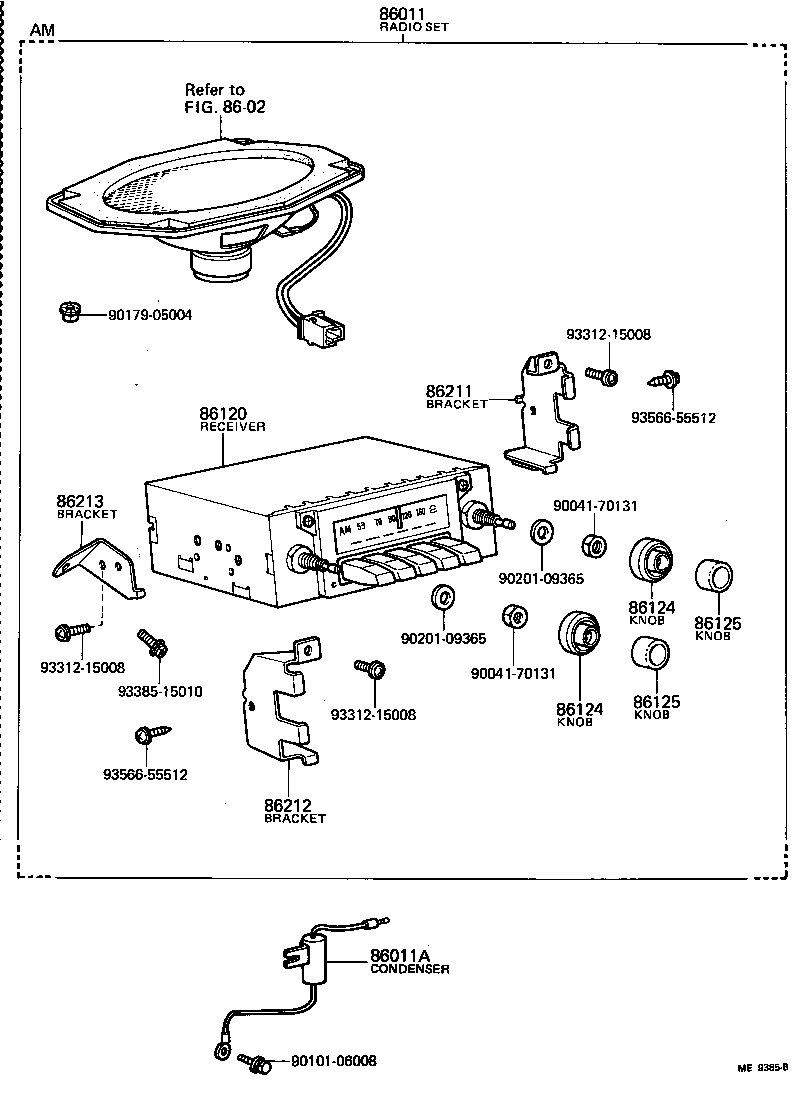

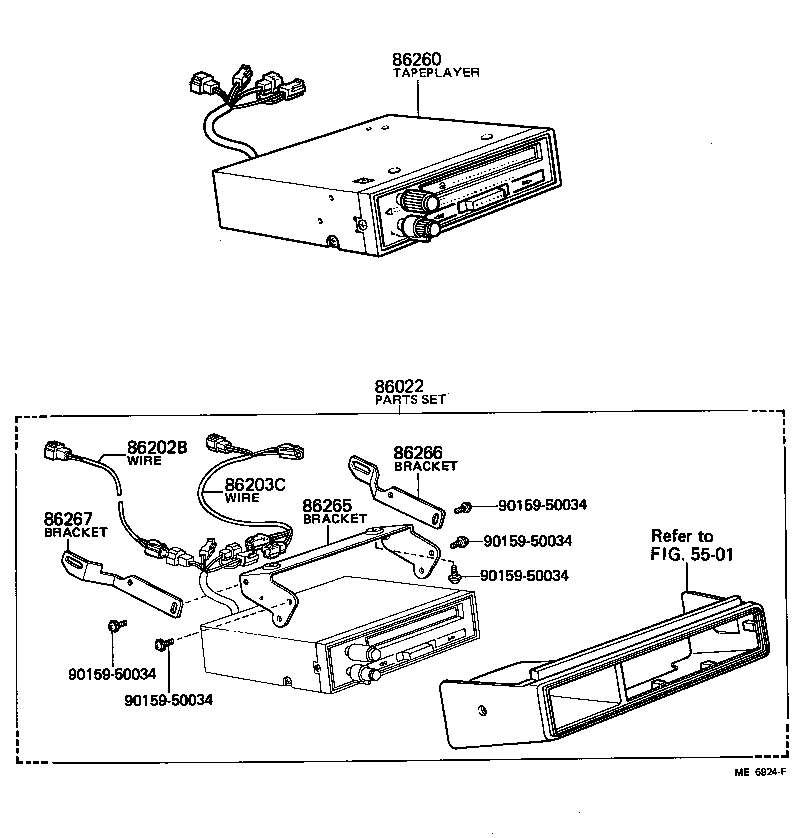

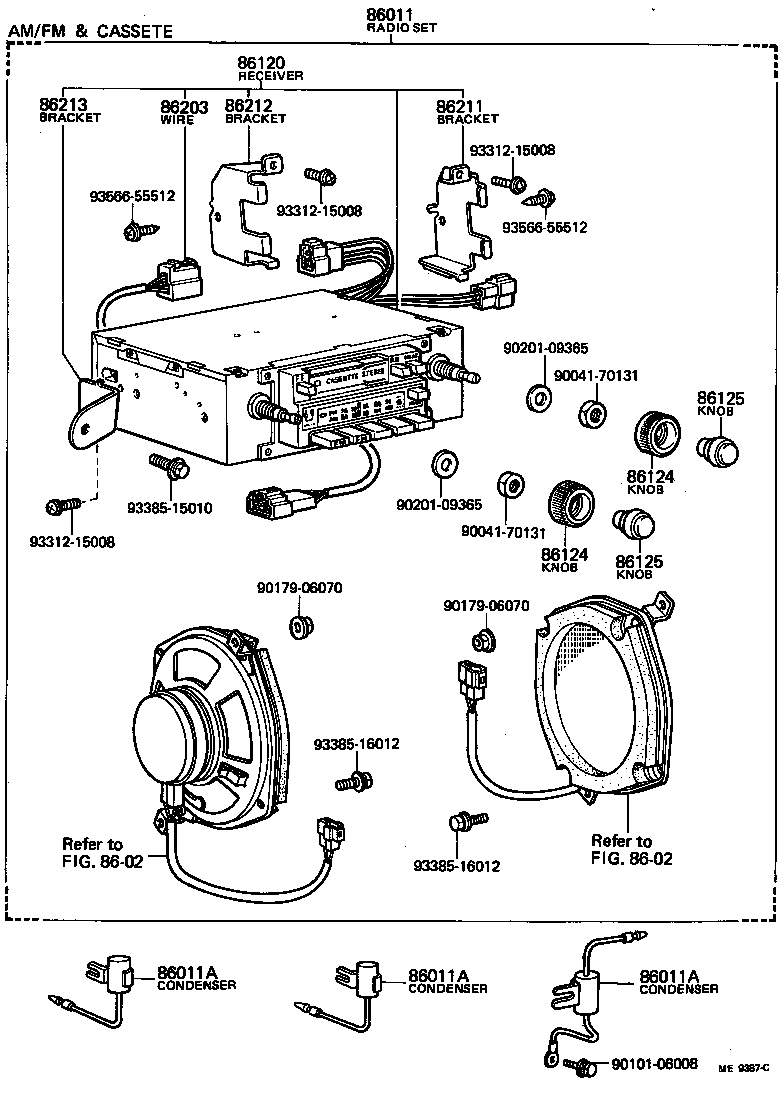

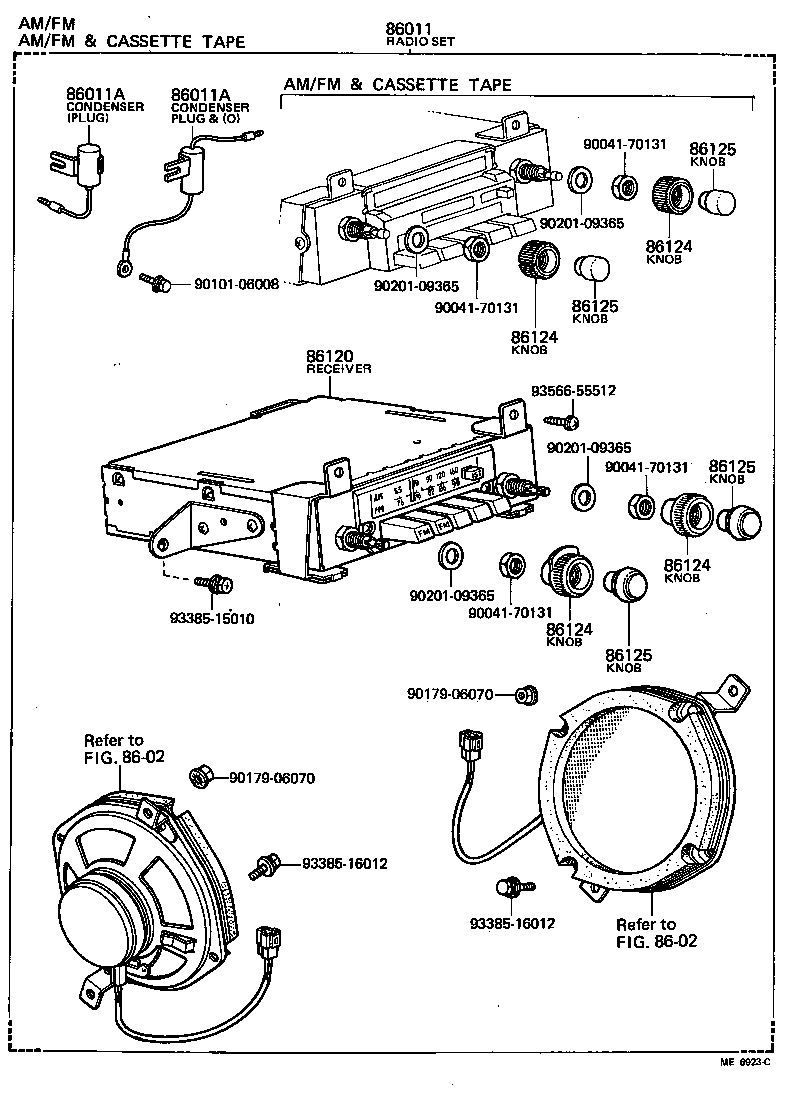

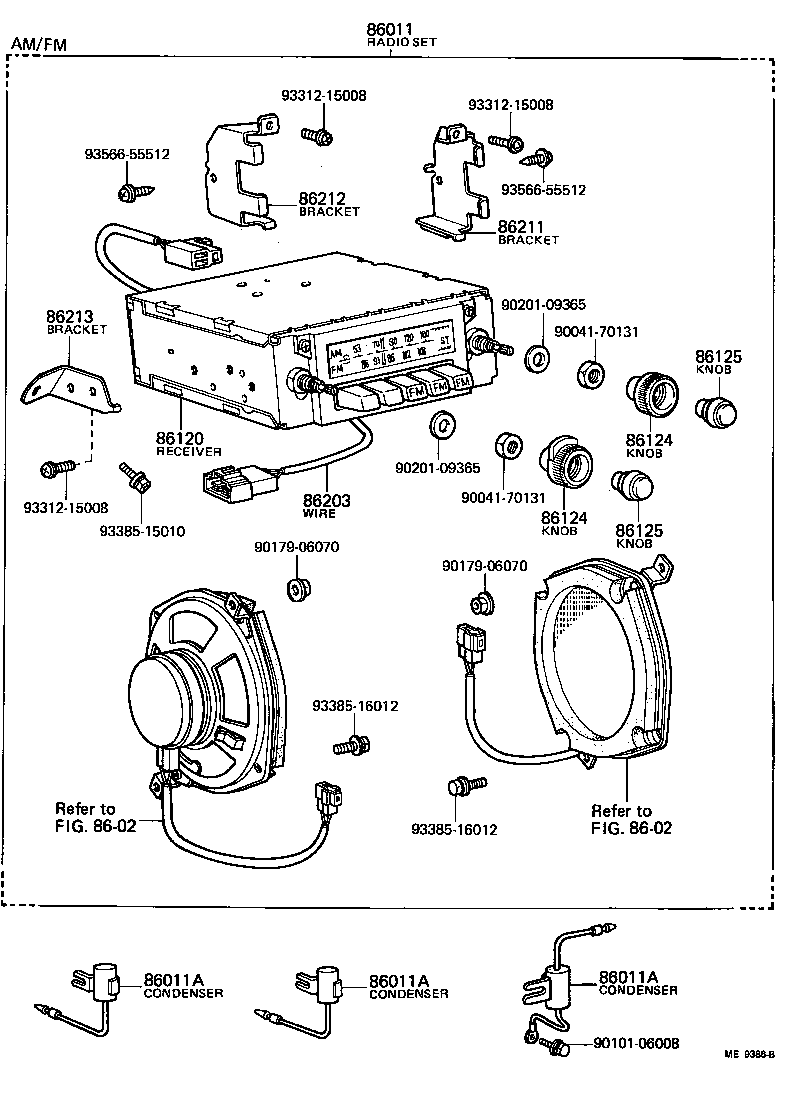

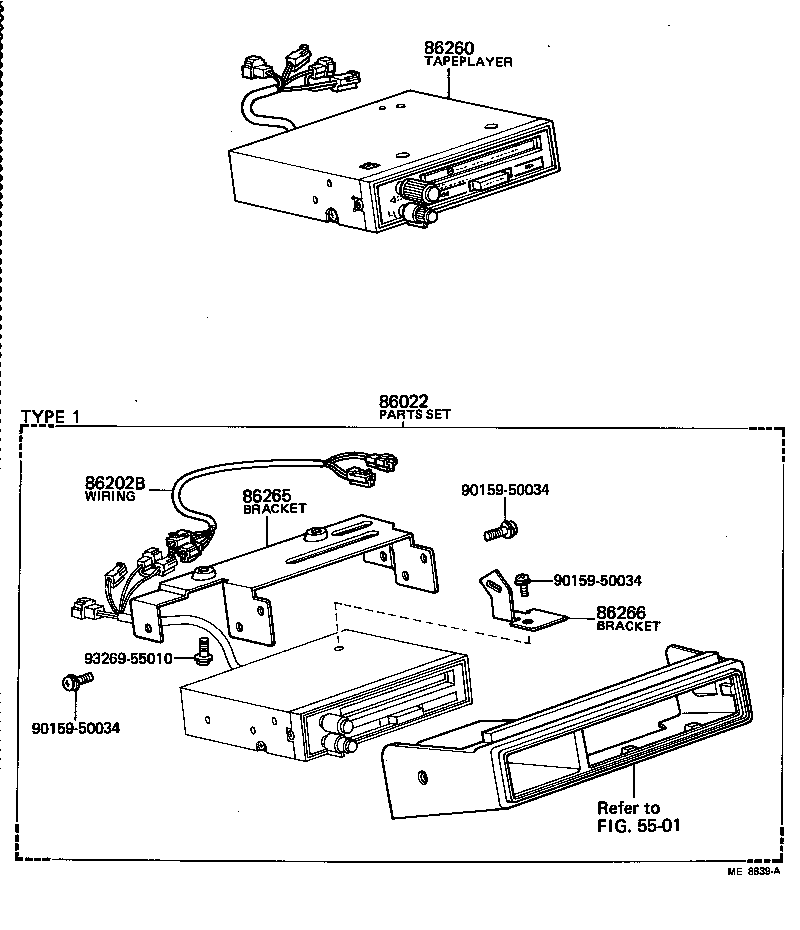

Figure ME6922C ME6922C 1978-02 → 1980-05 Figure ME6923C ME6923C 1978-02 → 1980-05 Figure ME9385B ME9385B 1980-05 → 1982-08 Figure ME9386B ME9386B 1980-05 → 1982-08 Figure ME9387C ME9387C 1980-05 → 1982-08 Figure ME6924F ME6924F 1978-02 → 1980-05 Figure ME8839A ME8839A 1980-05 → 1982-08 Figure ME8840A ME8840A 1980-05 → 1982-08 Figure ME8841 ME8841 1980-05 → 1982-08 Figure ME8842C ME8842C 1980-05 → 1982-08 Figure MEC064B MEC064B 1982-08 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86012 Parts Set, Radio Setting
86022 Parts Set, Tape Player Setting
86022A Parts Set, Stereo Component Setting
86022B Plate, Caution
86101E Cord Sub-assy, Antenna, NO.3
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86180 Tuner Assy, Stereo Component
86202B Wire, Tape Player
86203 Wire, Radio
86203C Wire, Tape Player
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86211A Bracket, Stereo Component, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86216 Bracket, Stereo Component, NO.2
86221A Panel, Radio Receiver
86222 Finish, Tape Player
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
86270 Deck Assy, Stereo Component
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
