Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan
Discontinued model
Data version 1985-03
Speaker
17 part groups · 4 illustrations
Part groups

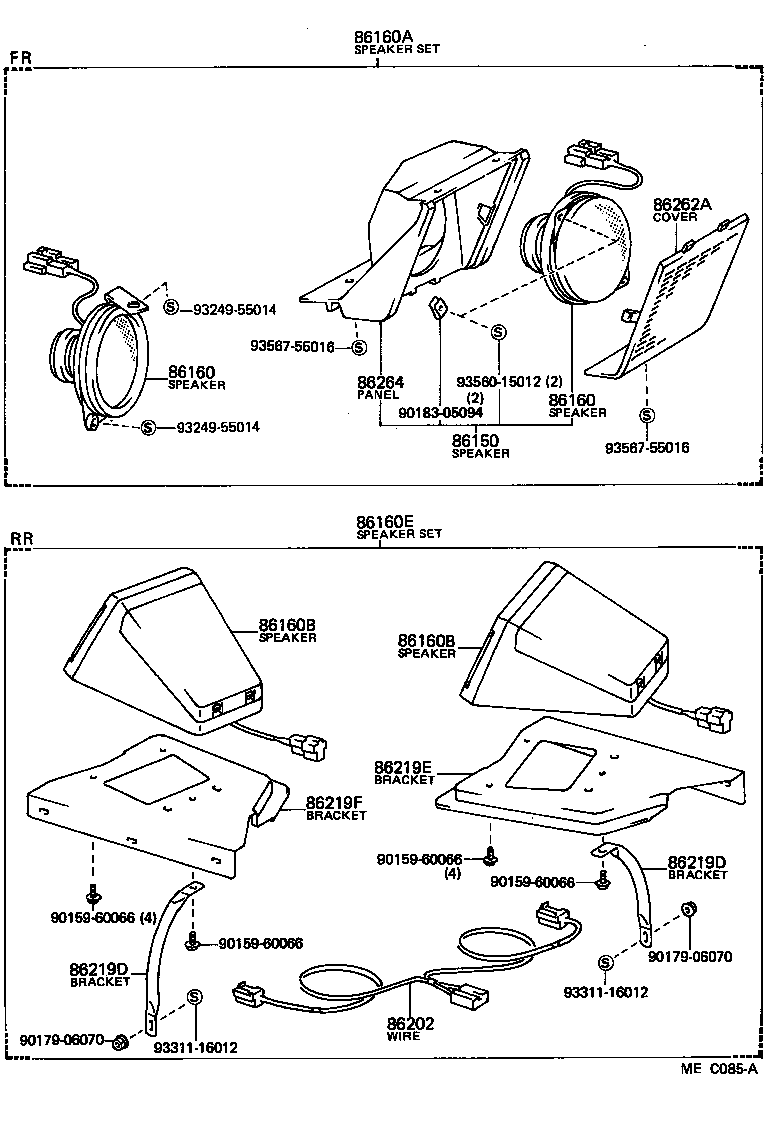

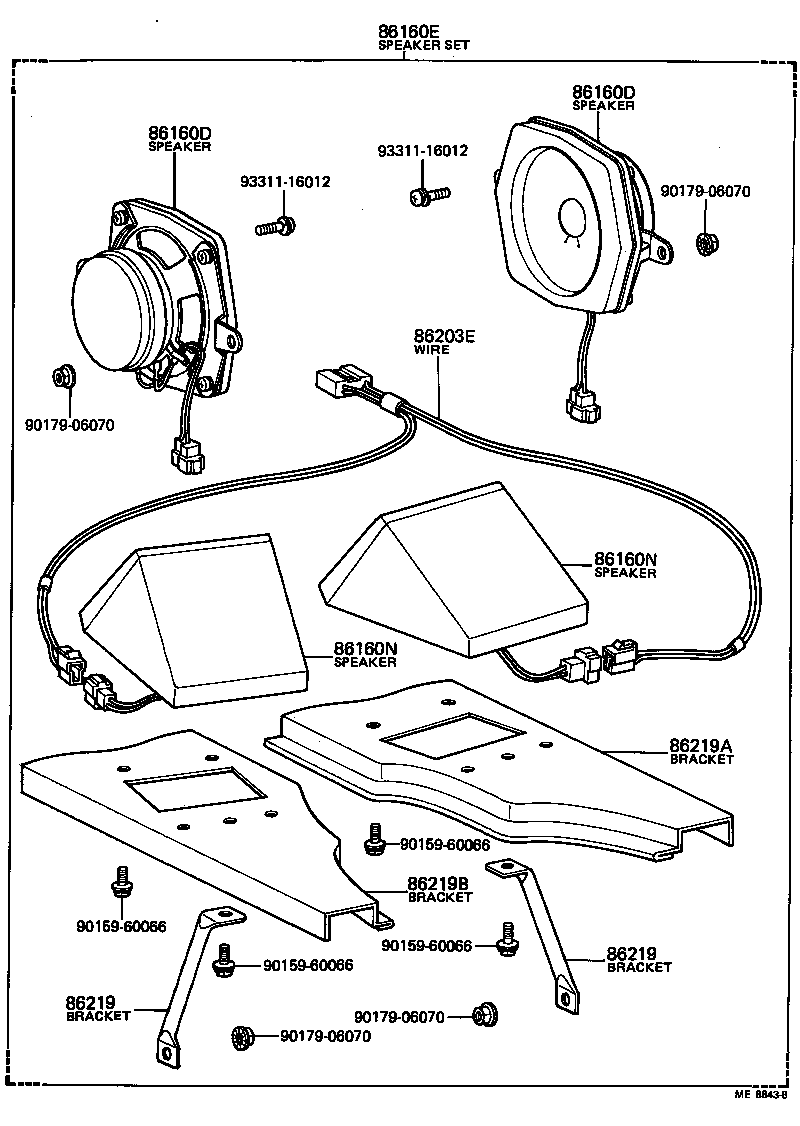

| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160A | Speaker Set, Front |
| 86160B | Speaker Assy, Rear |
| 86160D | Speaker Assy, Stereo Component, Front |
| 86160E | Speaker Set, Stereo Component |
| 86160N | Speaker Assy, Stereo Component, Rear |
| 86202 | Wire, Speaker, NO.1 |
| 86203E | Wire, Stereo Component Speaker, NO.1 |
| 86219 | Bracket, Stereo Component Speaker, NO.1 |
| 86219A | Bracket, Stereo Component Speaker, NO.2 |
| 86219B | Bracket, Stereo Component Speaker, NO.3 |
| 86219D | Bracket, Speaker, Rear NO.1 |
| 86219E | Bracket, Speaker, Rear NO.2 |
| 86219F | Bracket, Speaker, Rear NO.3 |
| 86262A | Cover, Speaker, Front |
| 86264 | Grille, Speaker, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
