Toyota Starlet
1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan
Discontinued model
Data version 1985-03

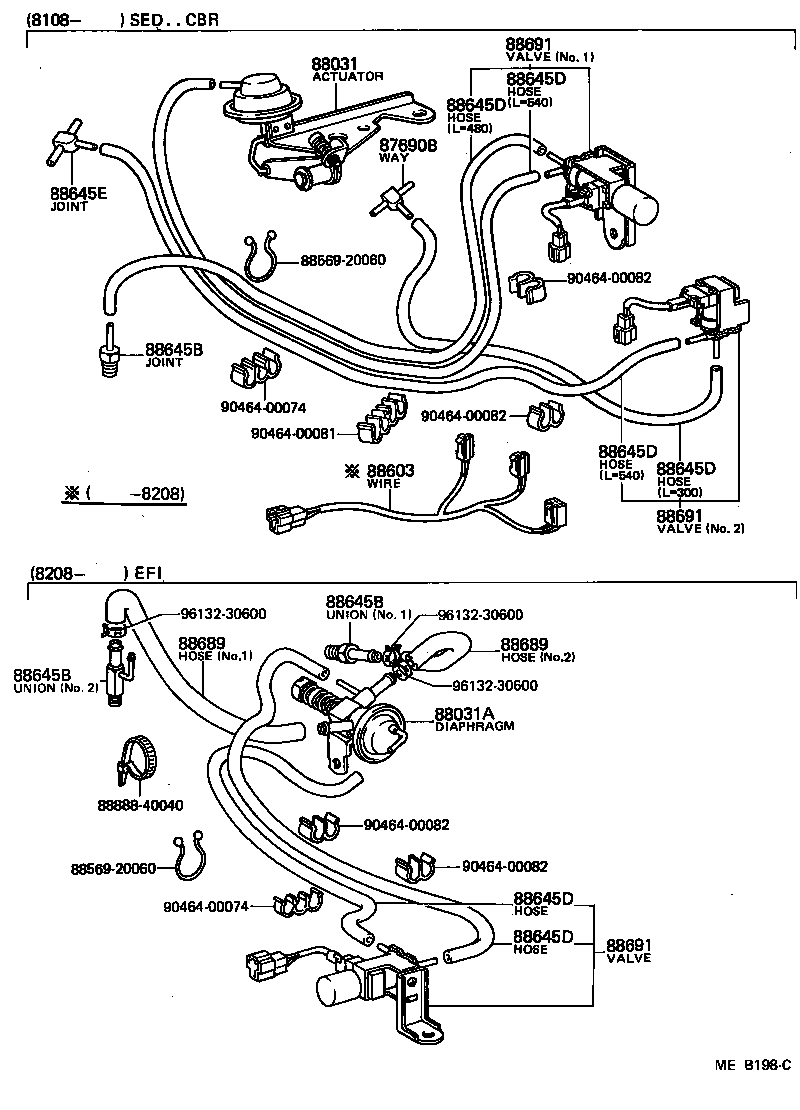

Heating & Air Conditioning - Vacuum Piping
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87690B | Way, 3 |
| 88031 | Actuator Set, Idle-up |
| 88031A | Diaphragm Sub-assy, Idle-up Actuator |
| 88603 | Wire, Idle UP Device |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88645E | Joint, NO.2 (FOR IDLE UP DEVICE) |
| 88689 | Hose, Damper Control Diaphragm Vacuum |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
