Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

29 part groups · 6 illustrations

Illustrations

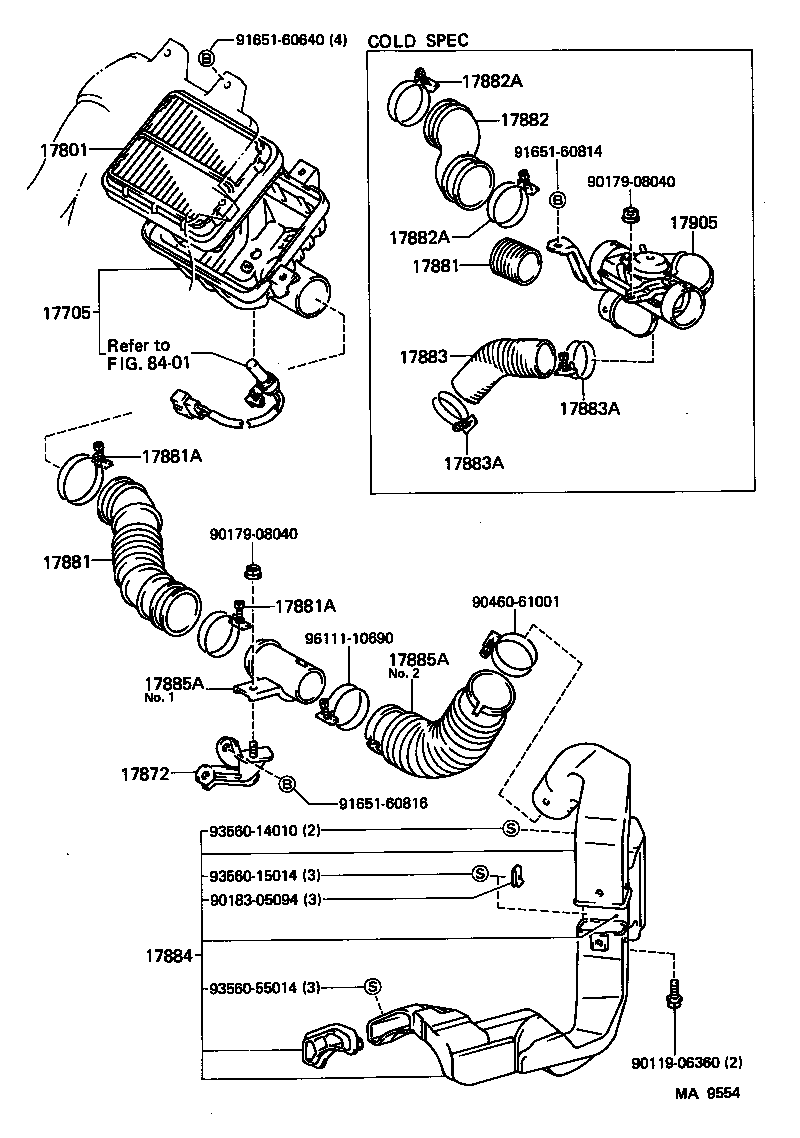

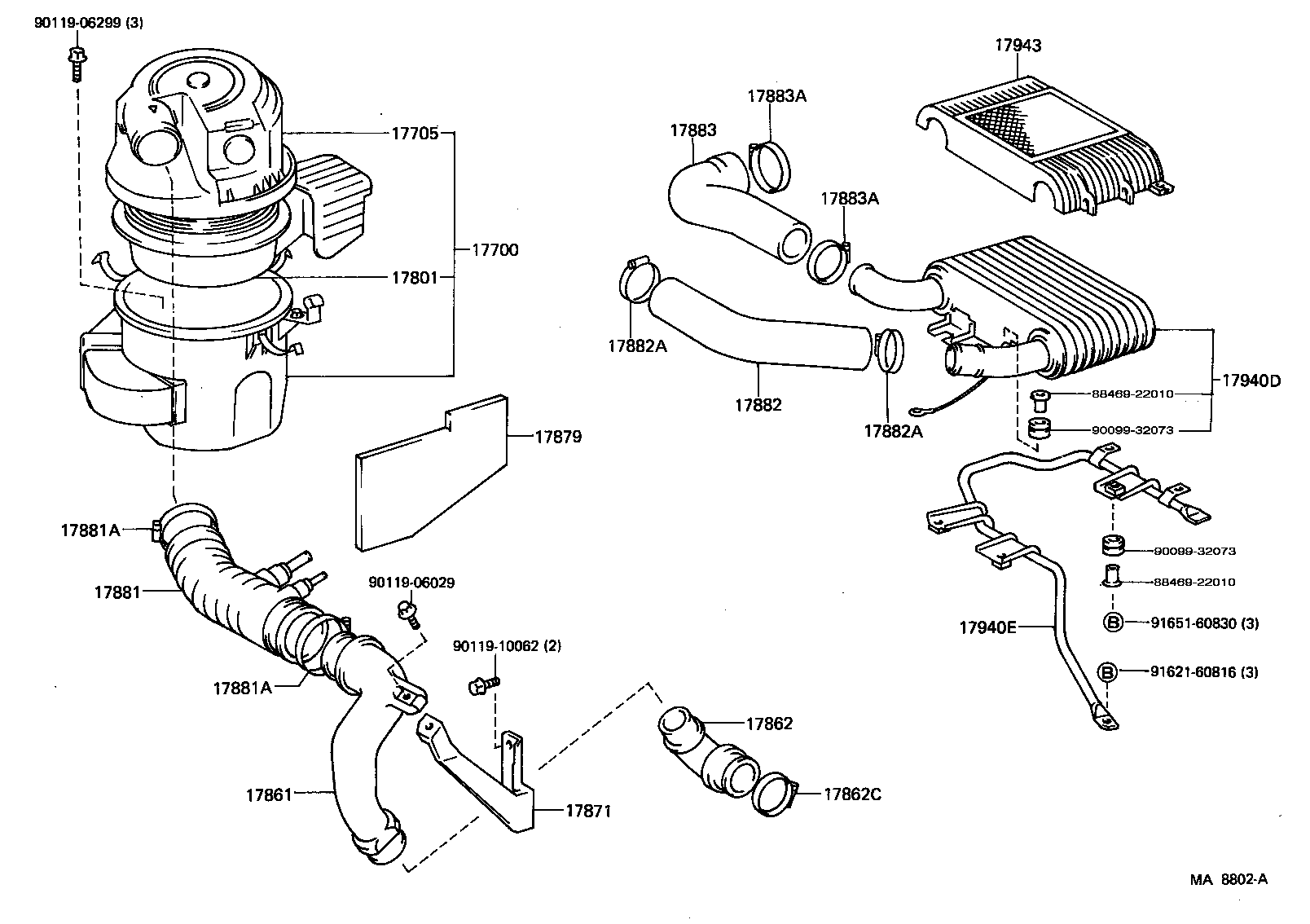

Figure MA7837C MA7837C 1984-10 → — Figure MA7838B MA7838B 1984-10 → 1986-12 Figure MA7838B MA7838B 1986-12 → — Figure MA9438 MA9438 1986-12 → — Figure MA8802A MA8802A 1986-01 → — Figure MA9554 MA9554 1986-12 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17767 Bracket, Air Cleaner
17769 Support, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17862 Connector, Intake Air, NO.2
17862C Clamp(FOR INTAKE AIR CONNECTOR NO.2)
17871 Stay, Air Connector
17872 Bracket, Intake Air Connector
17879 Pad, Air Cleaner Inlet
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17885A Hose, Air Cleaner, NO.5
17905 Valve Sub-assy, Air Cleaner Inlet
17940D Intercooler Assy
17940E Bracket, Intercooler Support
17943 Protector, Intercooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
