Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

8 part groups · 2 illustrations

Illustrations

Figure MF3476

MF3476 1984-10 → —

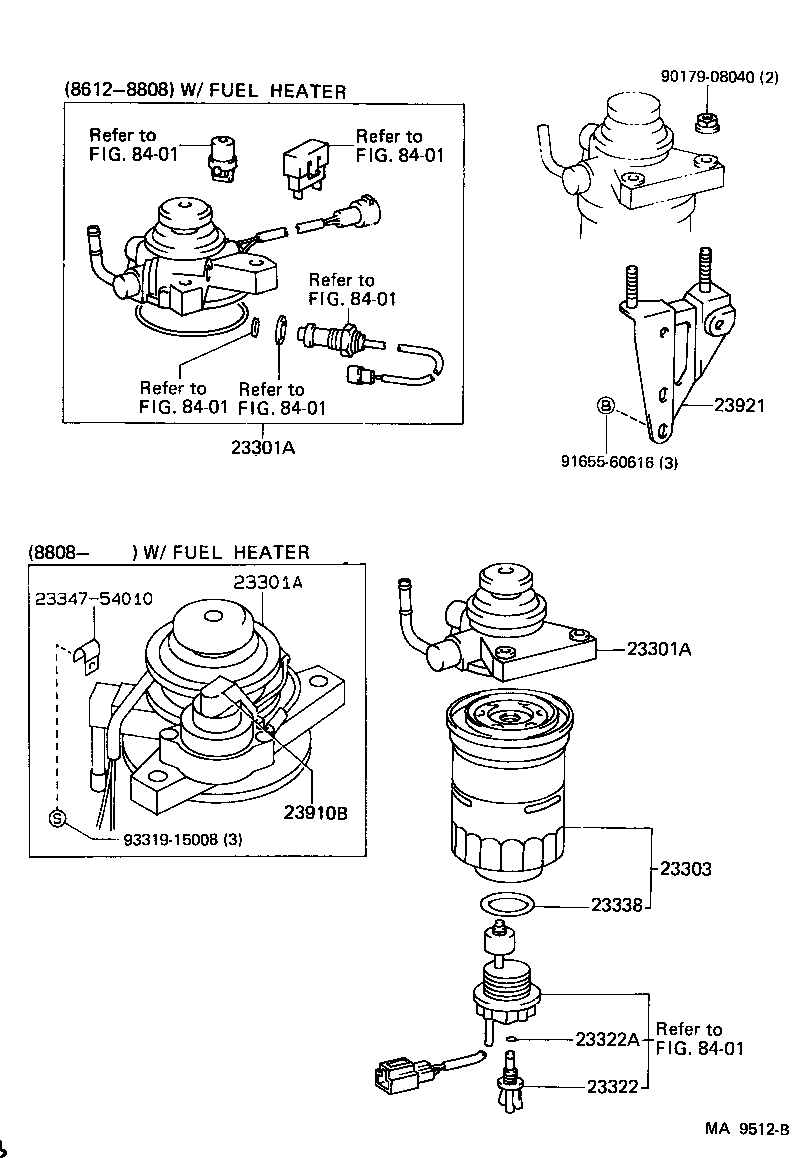

Figure MA9512B

MA9512B 1986-12 → —

Part groups

PNC	Description
23300	Filter Assy, Fuel
23301A	Cap Assy, Fuel Filter
23303	Element Sub-assy, Fuel Filter
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23338	Gasket(FOR WARNING SWITCH)
23910B	Heater Assy, Fuel
23921	Support, Fuel Filter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
