Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

26 part groups · 3 illustrations

Illustrations

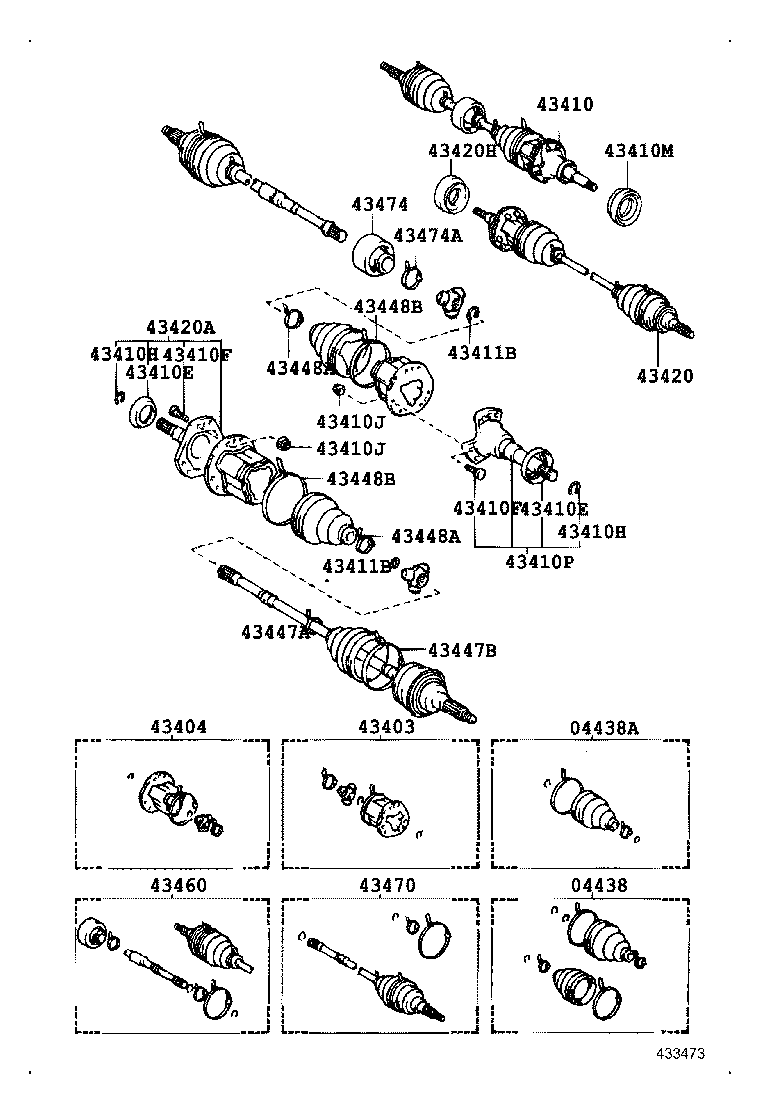

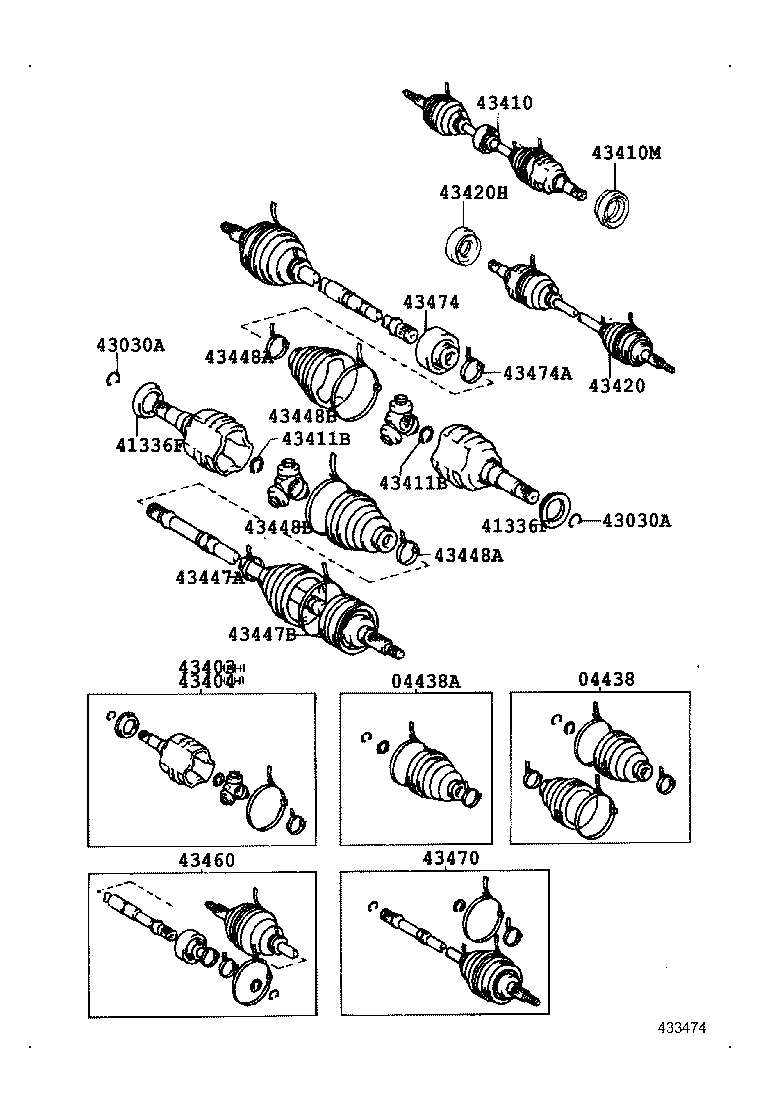

Figure 433472 433472 1984-10 → — Figure 433473 433473 1986-01 → 1987-12 Figure 433474 433474 1987-12 → —

Part groups

PNCDescription
04438 Boot Kit, Front Drive Shaft
04438A Boot Kit, Front Drive Shaft Inboard Joint
41336F Cover, Dust(FOR FRONT AXLE INBOARD JOINT SET)
43030A Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT)
43247 Deflector, Front Wheel Bearing Dust, NO.2
43403 Joint Set, Front Axle Inboard, RH
43404 Joint Set, Front Axle Inboard, LH
43410 Shaft Assy, Front Drive, RH
43410E Cover, Dust (FOR FRONT DRIVE SHAFT)
43410F Bolt, Serration (FOR FRONT DRIVE SHAFT)
43410H Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
43410J Nut (FOR FRONT DRIVE SHAFT)
43410M Oil Seal, Front Drive Shaft, RH
43410P Shaft Sub-assy, Front Drive, RH
43411B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
43420 Shaft Assy, Front Drive, LH
43420A Shaft Assy, Front Drive, LH
43420H Oil Seal, Front Drive Shaft, LH
43447A Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447B Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448A Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448B Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474 Damper, Drive Shaft
43474A Clamp (FOR DRIVE SHAFT DAMPER SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
