Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

19 part groups · 4 illustrations

Illustrations

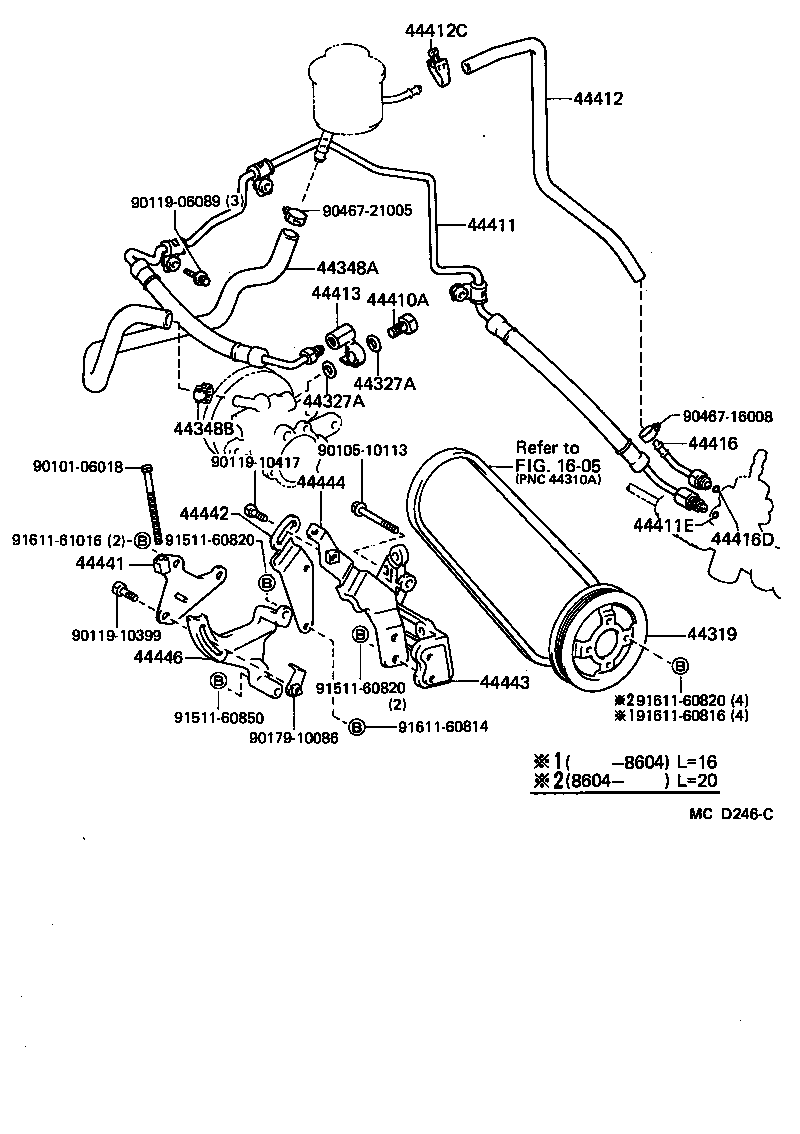

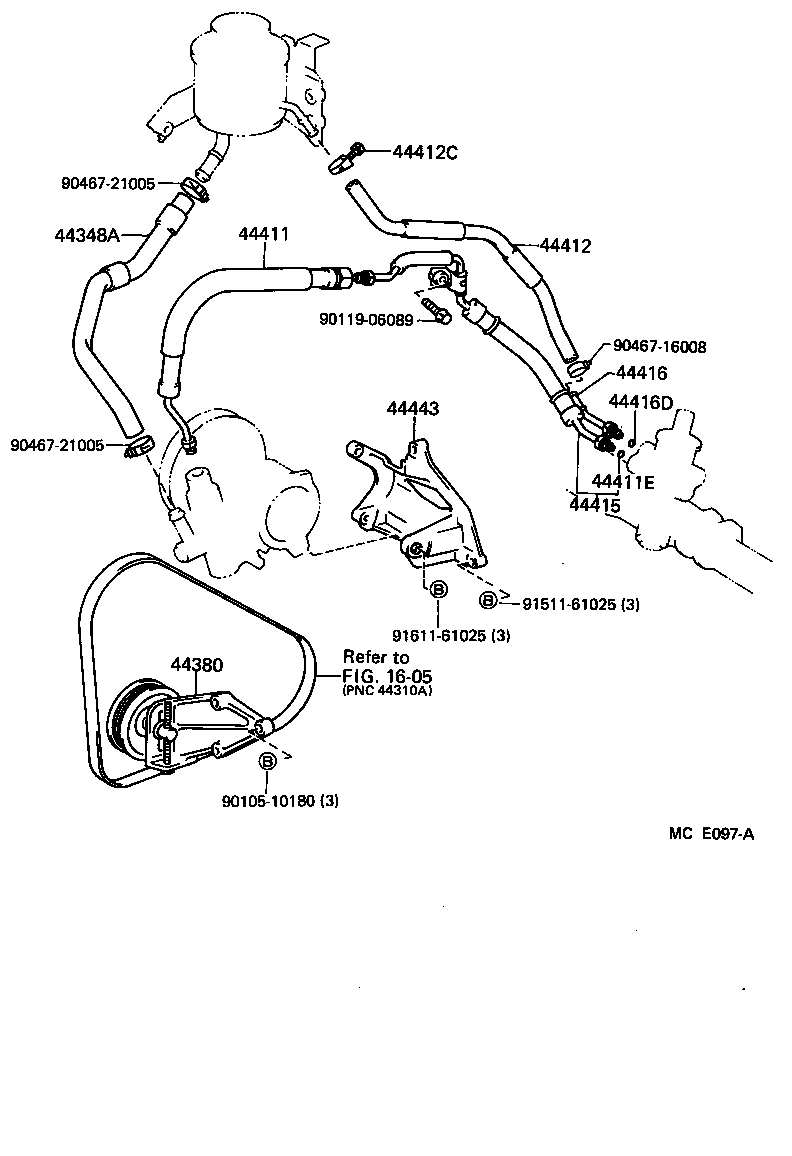

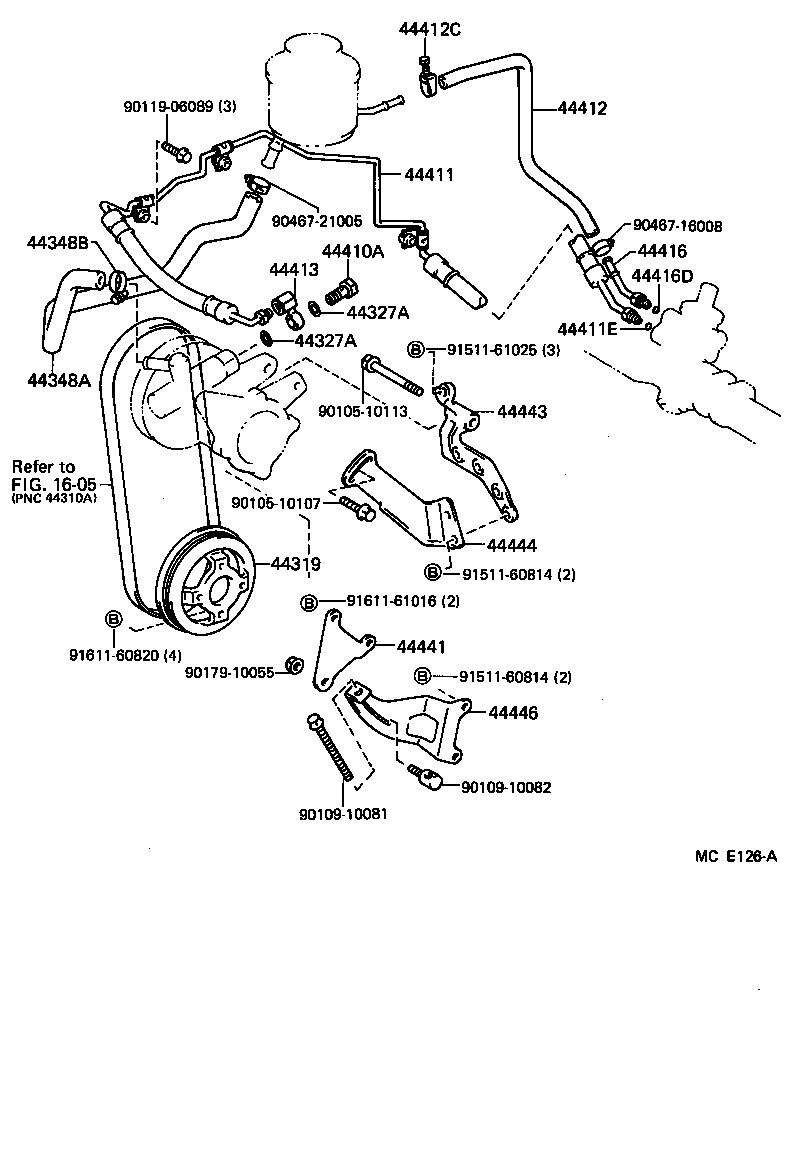

Figure MCB586D MCB586D 1984-10 → — Figure MCE126A MCE126A 1986-12 → — Figure MCD246C MCD246C 1986-01 → — Figure MCE097A MCE097A 1986-12 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44380 Pulley Assy, Power Steering Idle W/Bracket
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411E Ring, O(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44413 Tube, Pressure Feed, NO.1
44415 Hose, Pressure Feed, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
