Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 6 illustrations

Illustrations

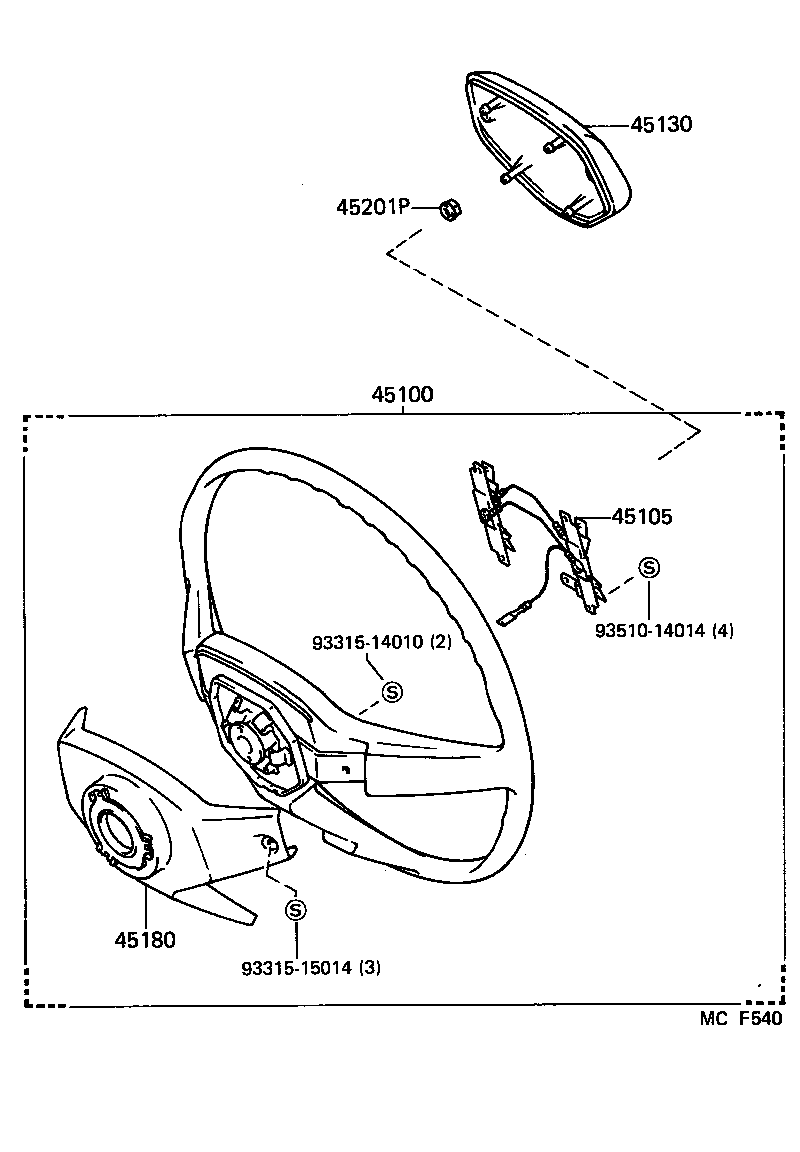

Figure MCB587A MCB587A 1984-10 → — Figure MCB485A MCB485A 1984-10 → — Figure MC9751E MC9751E 1986-01 → 1987-12 Figure MCF540 MCF540 1987-12 → — Figure MCF233 MCF233 1987-08 → 1987-09 Figure MCF233 MCF233 1989-01 → 1989-03

Part groups

PNCDescription
45100 Wheel Assy, Steering
45103 Hub Sub-assy, Steering Wheel
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45137 Plate, Horn Button Stop
45142 Seat, Horn Button Contact, NO.1
45155A Spacer, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
