Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

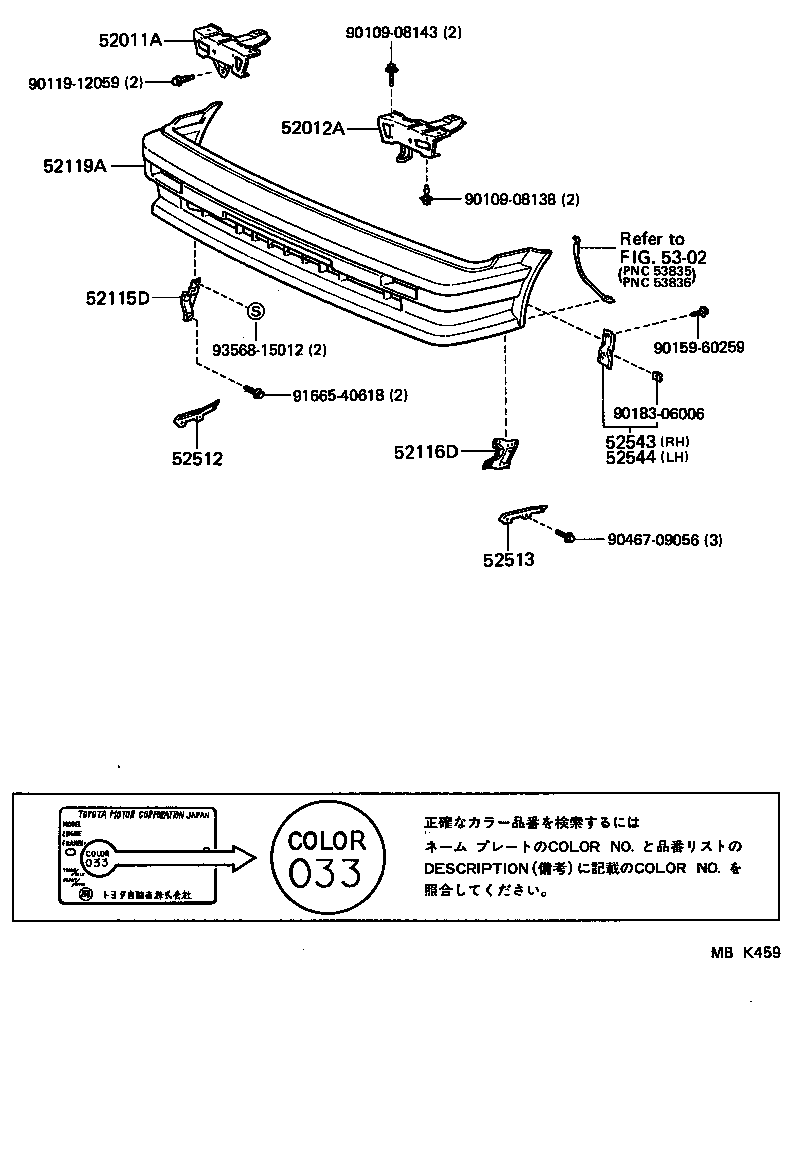

Figure MBH146B MBH146B 1984-10 → — Figure MBK459 MBK459 1986-01 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52115D Support, Front Bumper Side, NO.2 RH
52116A Support, Front Bumper Side, LH
52116D Support, Front Bumper Side, NO.2 LH
52119A Cover, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52677 Support, Front Bumper Side, NO.2, RH
52678 Support, Front Bumper Side, NO.2, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
