Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

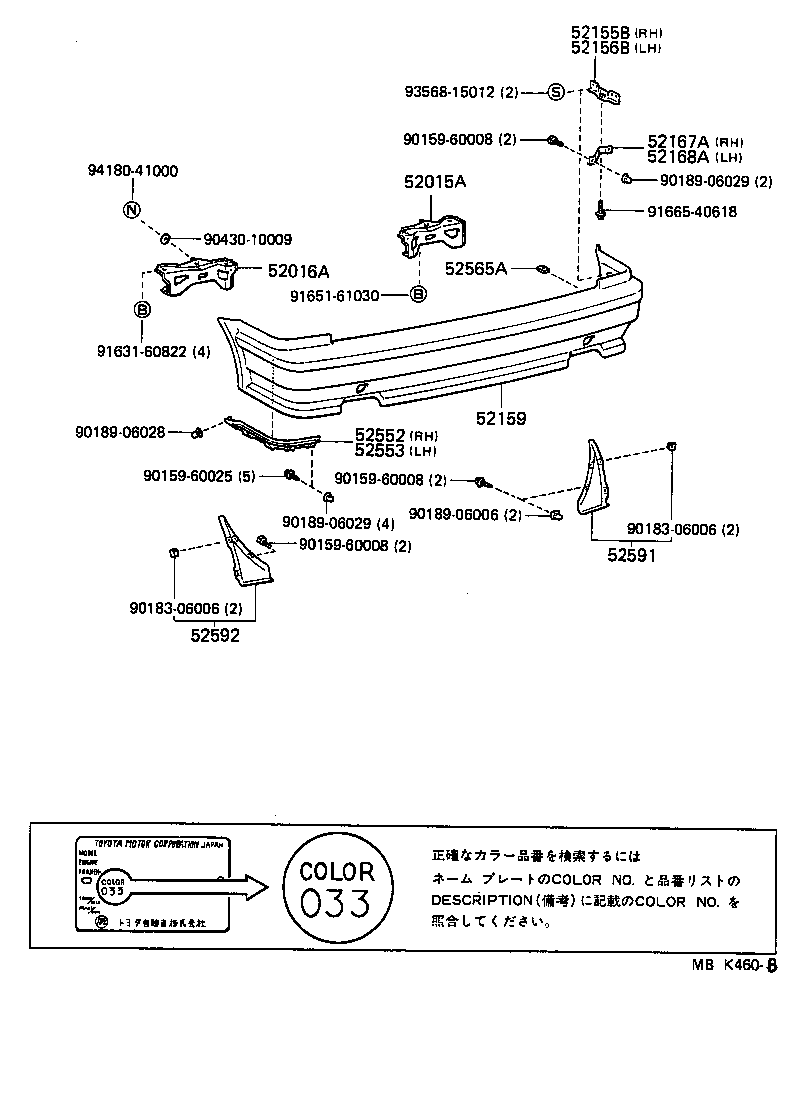

Figure MBL490C MBL490C 1984-10 → — Figure MBK460B MBK460B 1986-01 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52155B Support, Rear Bumper Side, NO.2 RH
52155C Support, Rear Bumper Side, NO.1 RH
52156B Support, Rear Bumper Side, NO.2 LH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
