Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

33 part groups · 2 illustrations

Illustrations

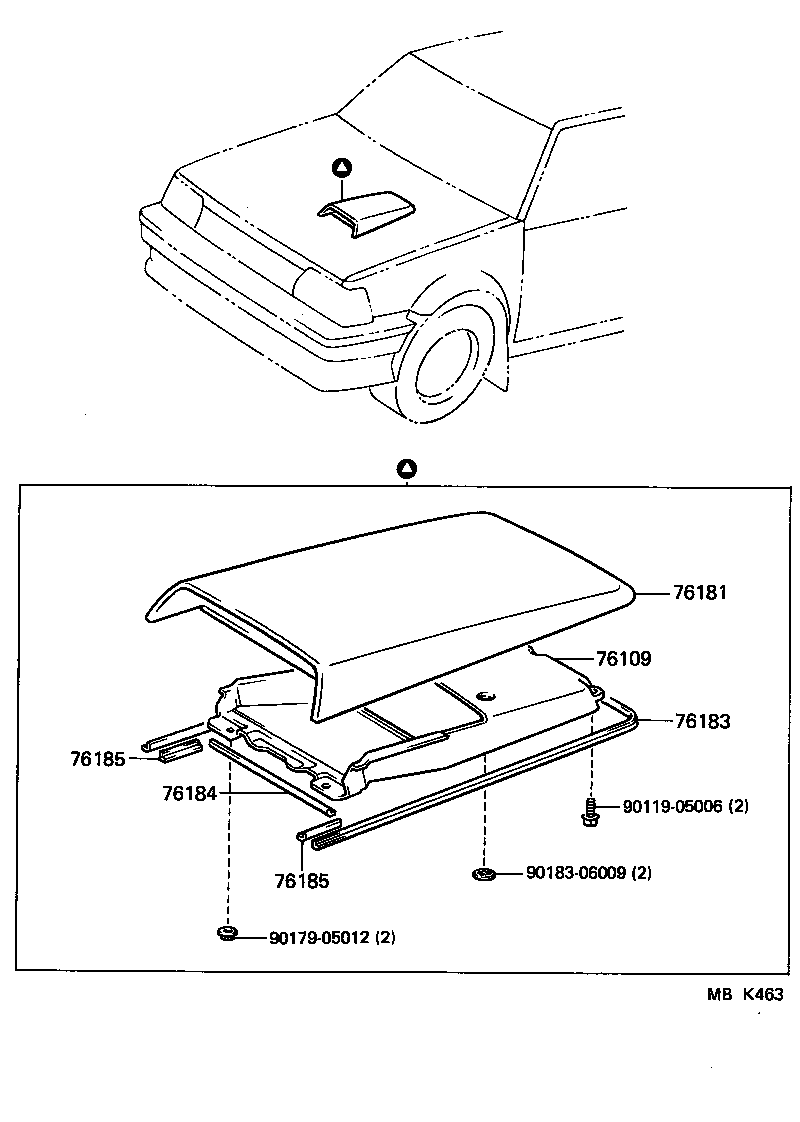

Figure MBK462E MBK462E 1984-10 → — Figure MBK463 MBK463 1986-01 → —

Part groups

PNCDescription
53155C Seal, Radiator Grille, NO.1
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383 Seal, Hood TO Cowl Top
53383A Clip(FOR HOOD TO COWL TOP SEAL)
53384A Bumper, Fender TO Hood
53385A Retainer, Hood Bumper, RH
53386A Retainer, Hood Bumper, LH
53395A Seal, Hood TO Front End Panel, NO.1
53396A Seal, Hood TO Front End Panel, NO.2
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53835 Brace, Front Fender TO Extension, RH
53836 Brace, Front Fender TO Extension, LH
53851 Brace, Front Fender TO Radiator Support, RH
53852 Brace, Front Fender TO Radiator Support, LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882 Packing, Front Fender Main
53911 Panel, Front Valance
58743B Protecter, Front Fender Panel, RH
58744B Protecter, Front Fender Panel, LH
76109 Guide Sub-assy, Hood Air Intake
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
