Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan
Discontinued model
Data version 1990-07

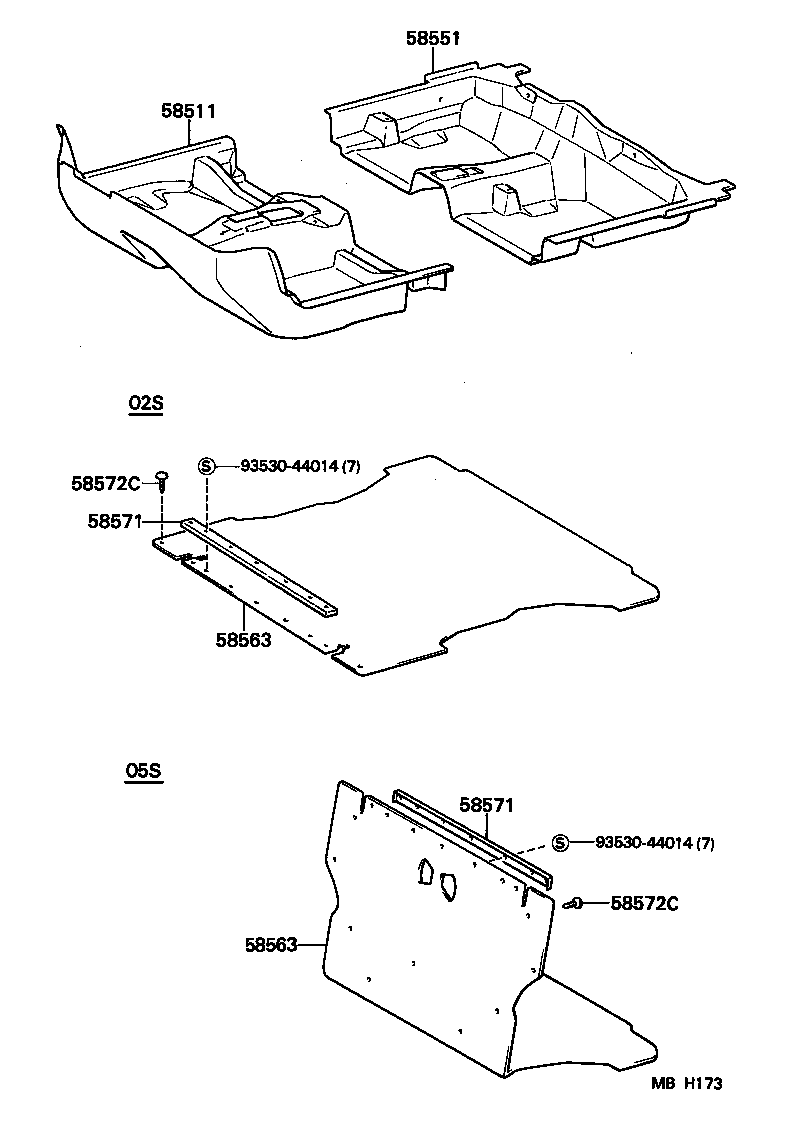

Mat & Carpet
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58046B | Belt Sub-assy, Luggage Hold, A |
| 58402B | Belt Sub-assy, Luggage Hold, Front |
| 58410R | Board Assy, Deck |
| 58511 | Mat, Floor, Front |
| 58520 | Carpet Assy, Front Floor |
| 58551 | Mat, Floor, Rear |
| 58560 | Carpet Assy, Floor, Rear |
| 58563 | Mat, Rear Floor |
| 58564 | Carpet, Rear Floor |
| 58571 | Set Plate, Rear Floor Mat, Front |
| 58572C | Clip, Rear Floor Mat Set |
| 58579C | Clip, Rear Floor Carpet Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
