Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 2 illustrations

Illustrations

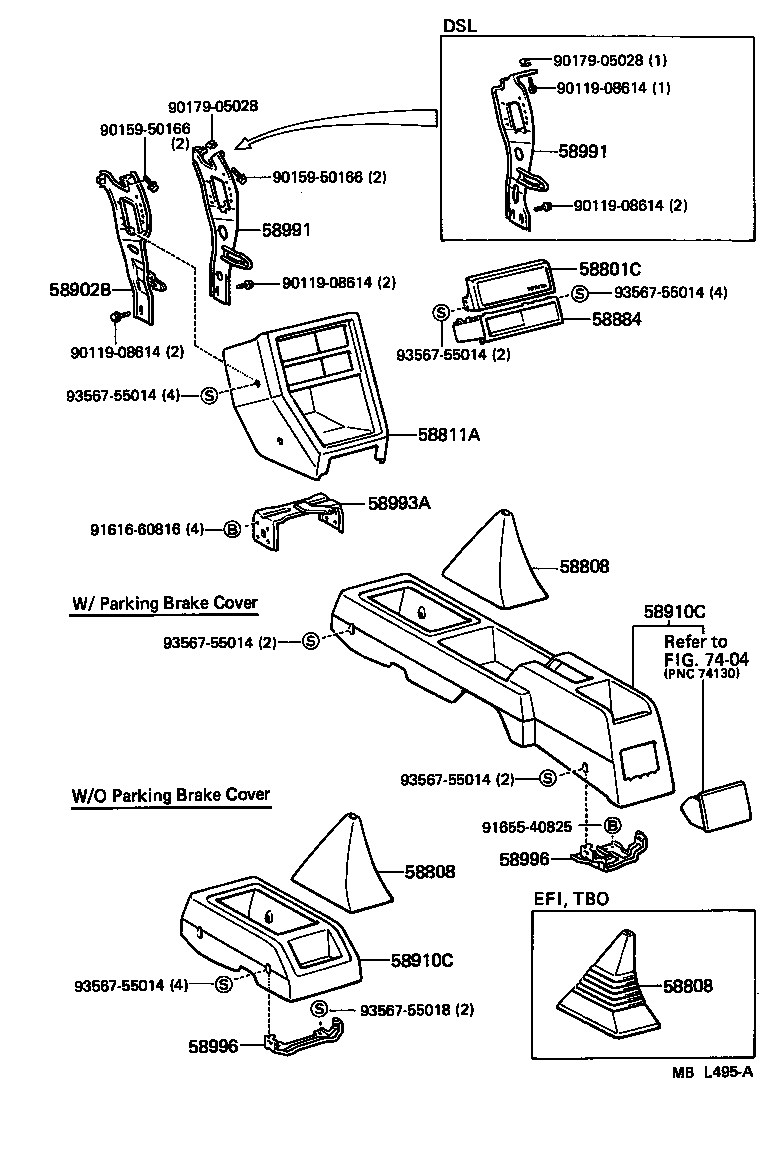

Figure MBH175B MBH175B 1984-10 → 1986-12 Figure MBL495A MBL495A 1986-12 → —

Part groups

PNCDescription
58801C Panel, Stereo Player Finish
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58871 Cushion, Console Box
58884 Cover, Stereo Opening
58902B Bracket Sub-assy, Console Box Hinge, NO.1
58910C Box Assy, Console, Rear
58951C Door, Box
58971 Lock, Console Compartment Door
58991 Bracket, Console Box Mounting, Upper
58993 Bracket, Console Box Mounting, Rear
58993A Bracket, Console Box Mounting, Lower
58996 Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
