Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan
Discontinued model
Data version 1990-07

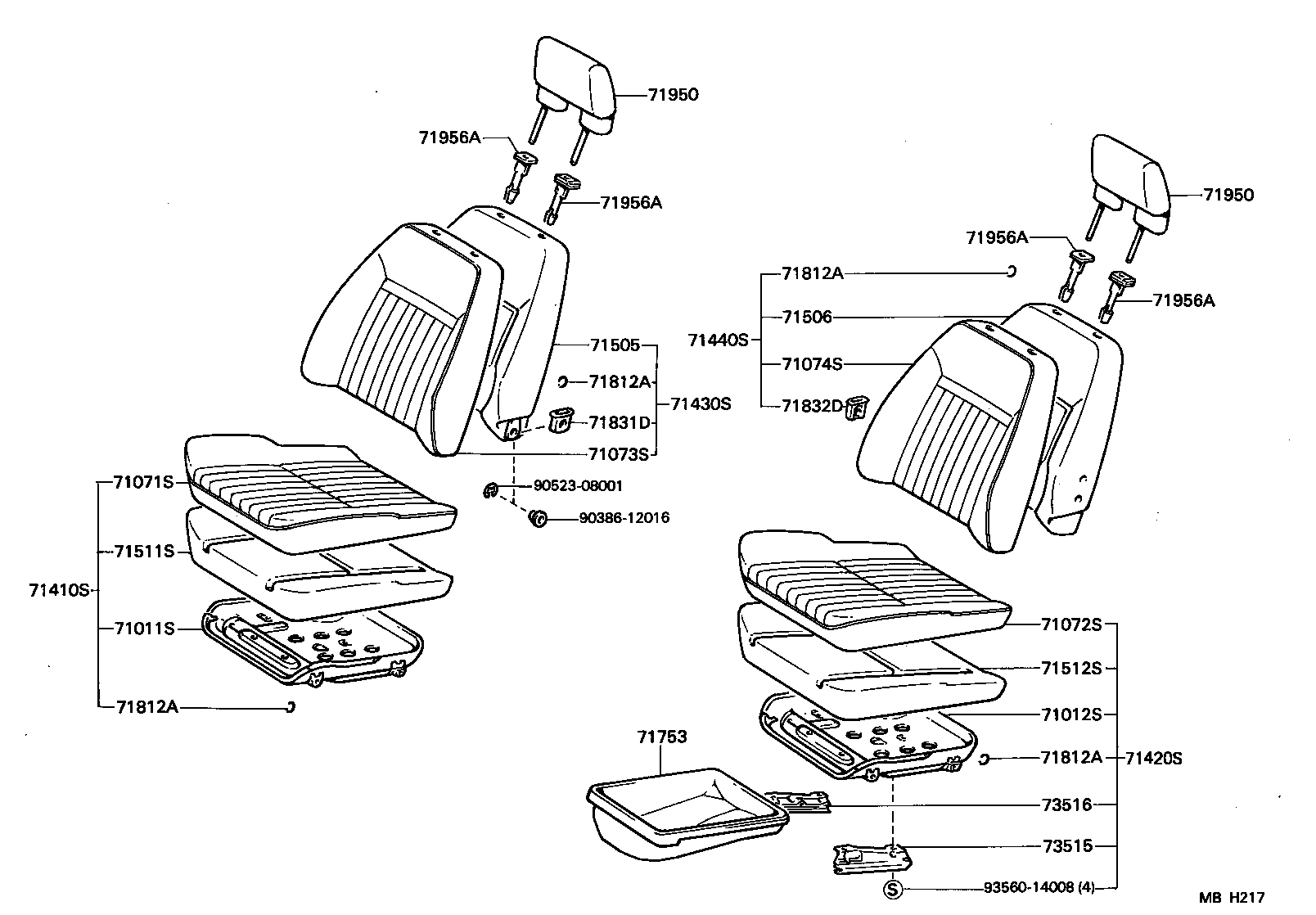

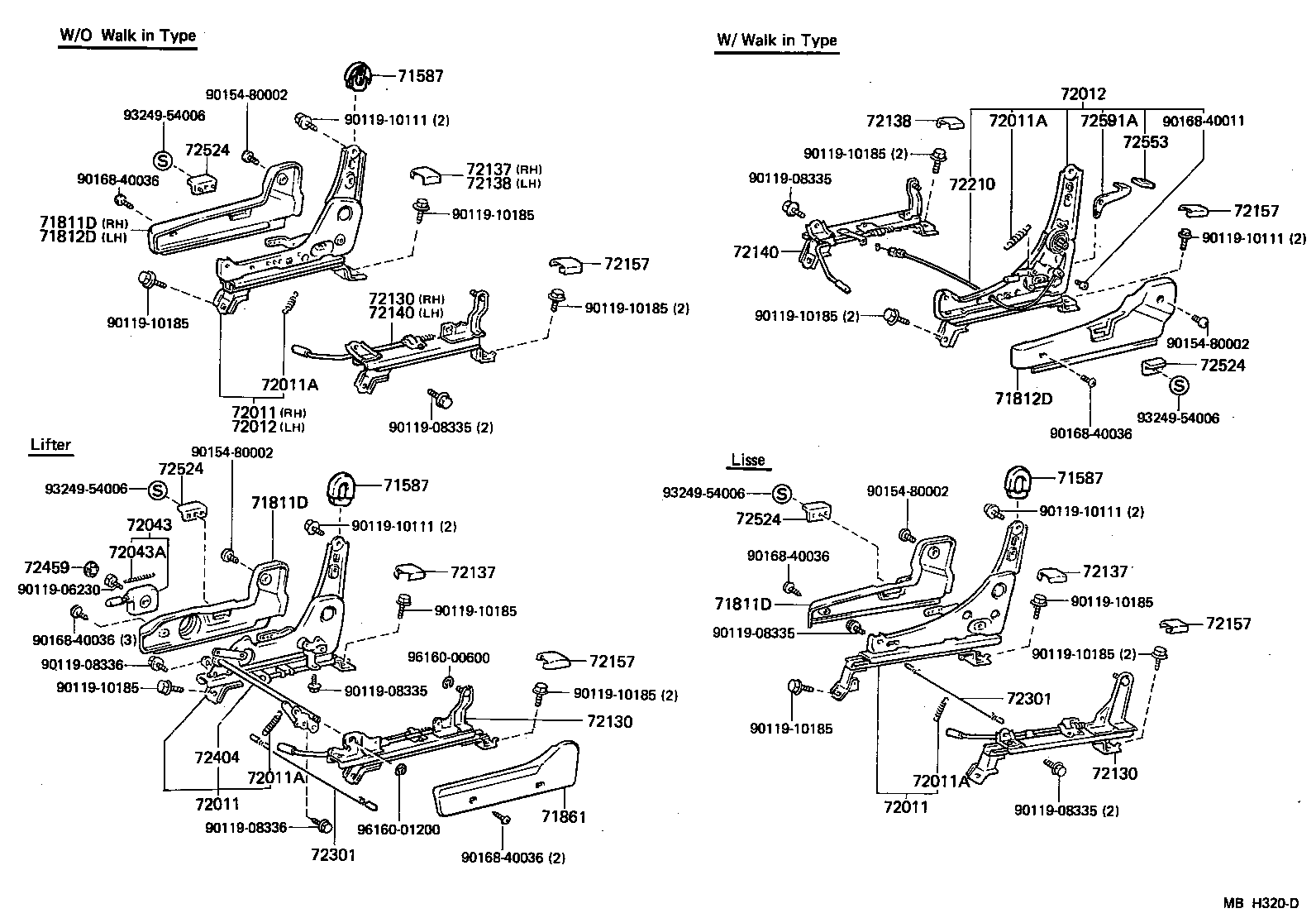

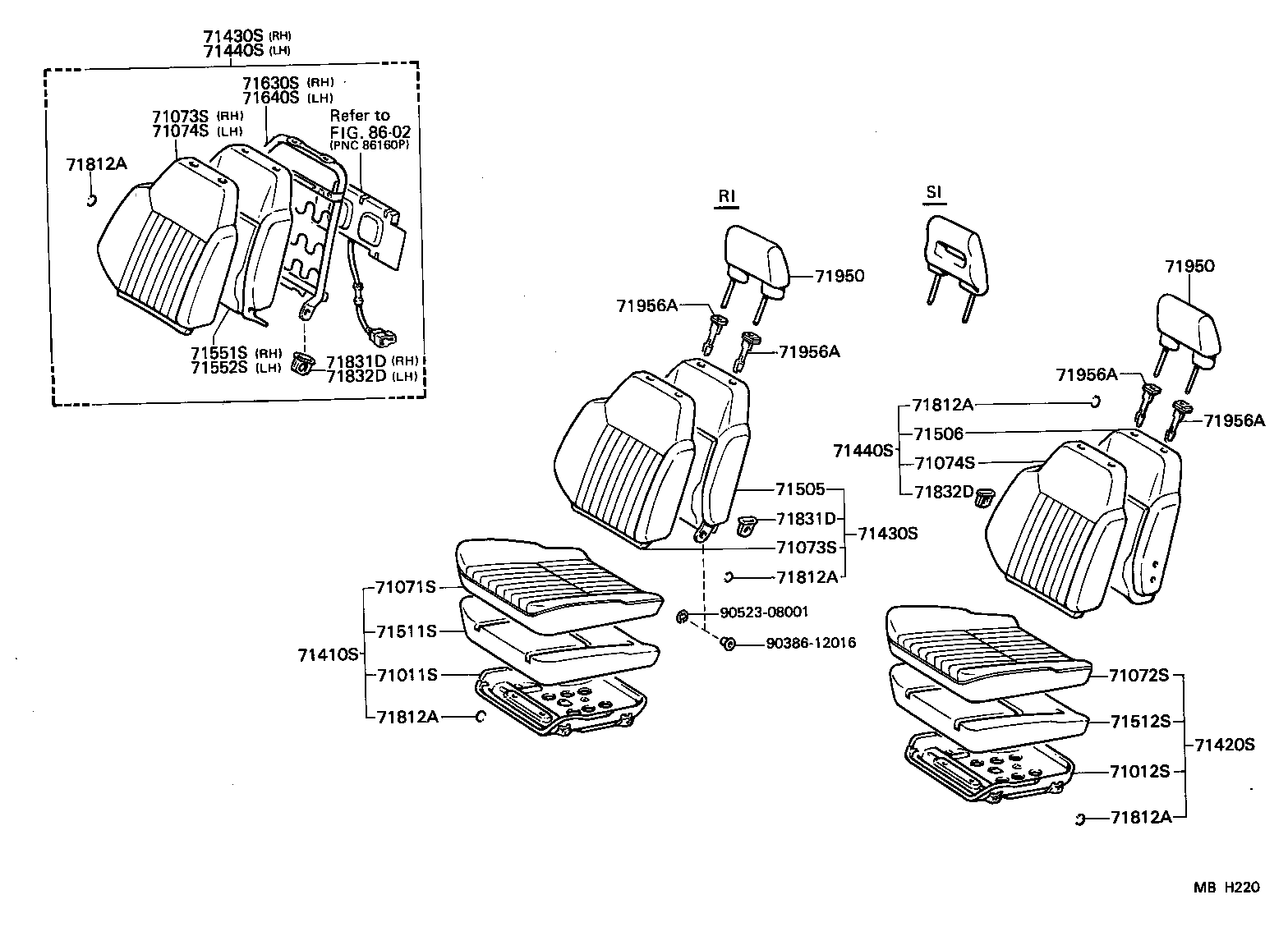

Front Seat & Seat Track
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71753 | Tray, Front Seat Under |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011A | Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72043 | Lever Sub-assy, Seat Lifter |
| 72043A | Spring, Tension (FOR SEAT LIFTER LEVER) |
| 72130 | Track Assy, RH Seat, Inner |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72140 | Track Assy, LH Seat, Inner |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72210 | Cable Assy, Seat Track Control |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72404 | Link Sub-assy, Vertical Seat |
| 72459 | Cap, Vertical Seat Adjuster Knob |
| 72524 | Handle, Reclining Adjuster Release |
| 72553 | Cover, Reclining Pedal |
| 72591A | Lever, Reclining Remote Control |
| 73515 | Rail, Front Seat Under Tray, NO.1 |
| 73516 | Rail, Front Seat Under Tray, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
