Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

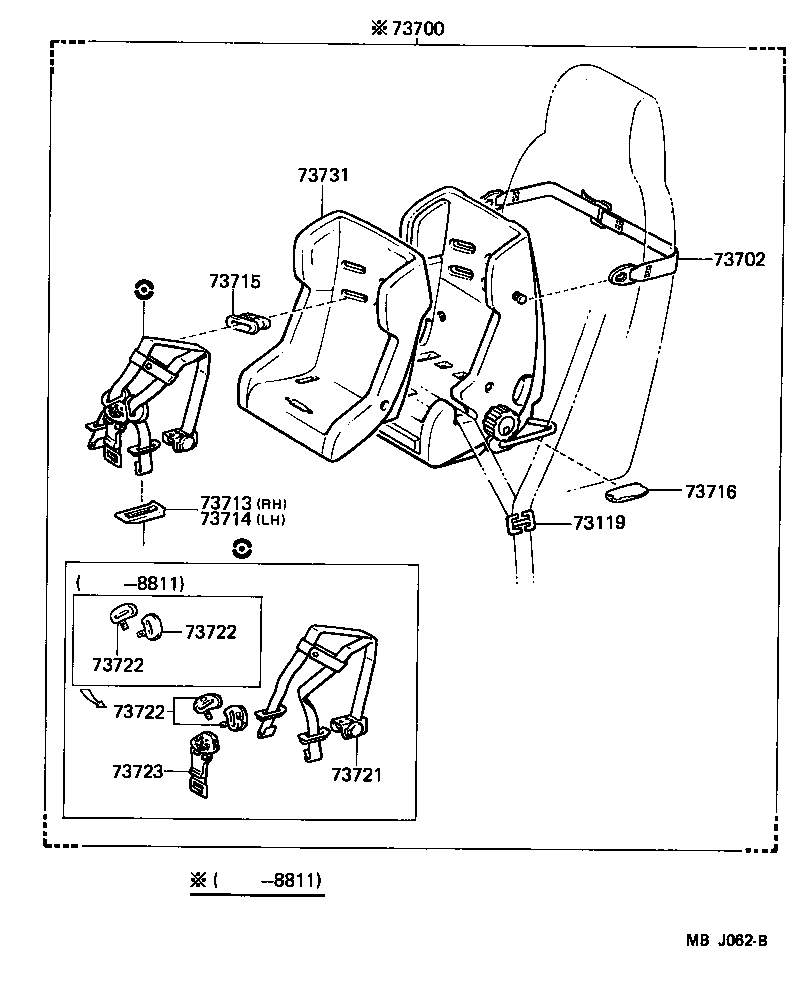

Figure MBH227C MBH227C 1984-10 → — Figure MBJ062B MBJ062B 1985-02 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73297 Cover, Quarter Trim OR Center Pillar Belt Hole
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73700 Seat Assy, Child Restraint
73702 Belt Sub-assy, Child Restraint Seat Holder
73713 Cap, Child Restraint Seat Belt, RH
73714 Cap, Child Restraint Seat Belt, LH
73715 Protector, Child Restraint Seat Belt
73716 Protector, Child Restraint Seat
73721 Belt, Child Restraint Seat
73722 Tongue,Child Restraint Seat Belt
73723 Crotch, Child Restraint Seat Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
