Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

25 part groups · 10 illustrations

Illustrations

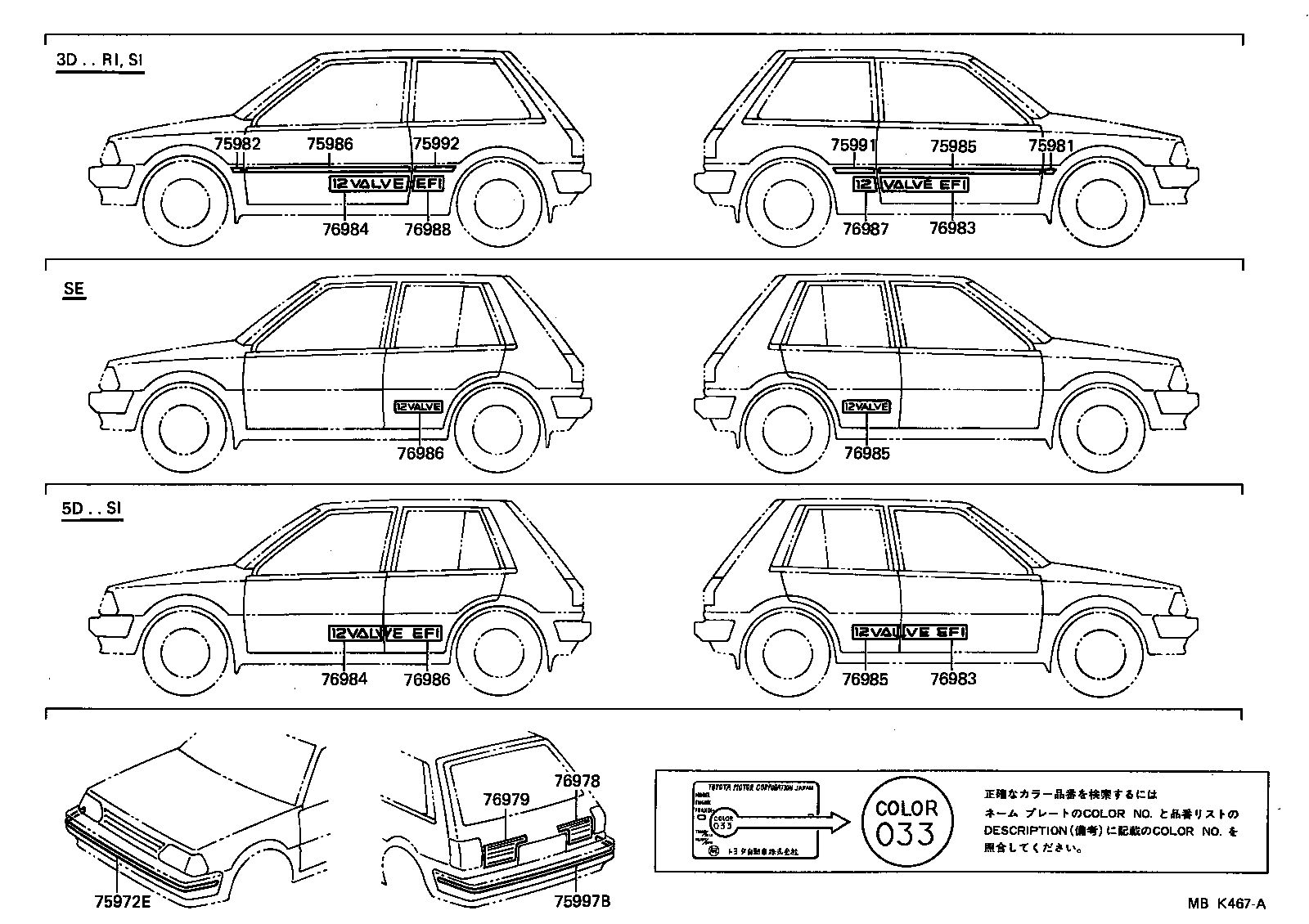

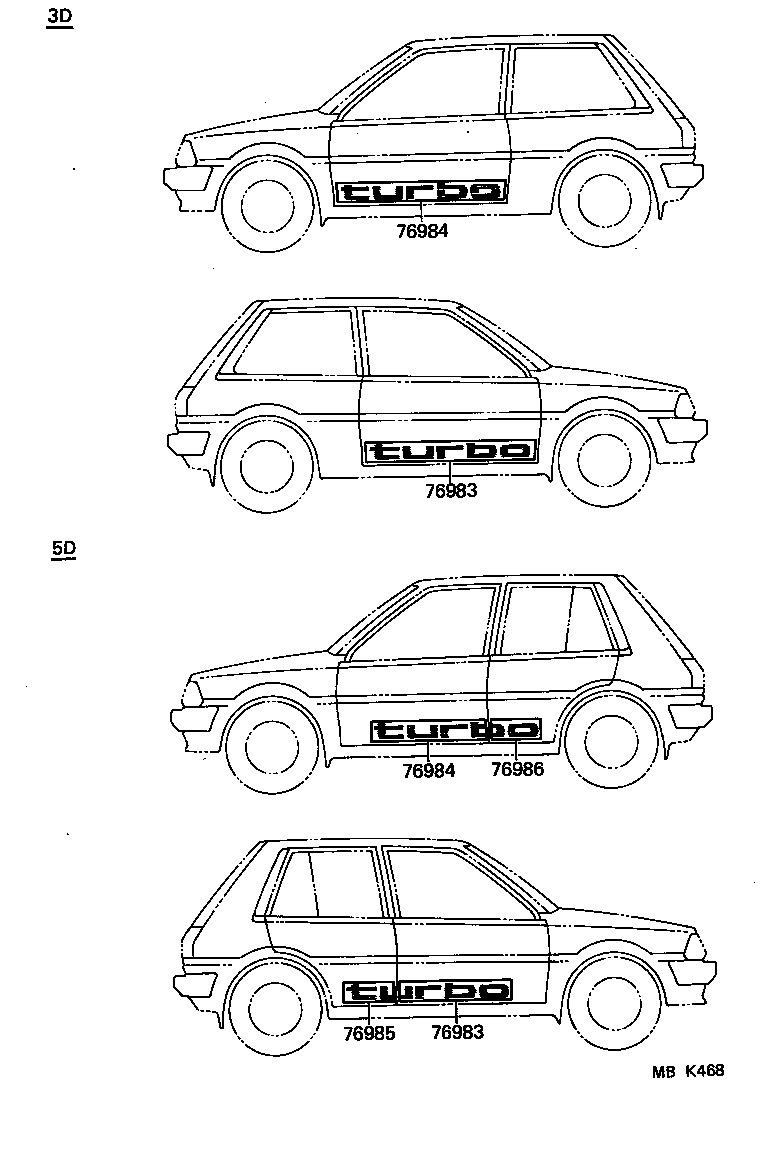

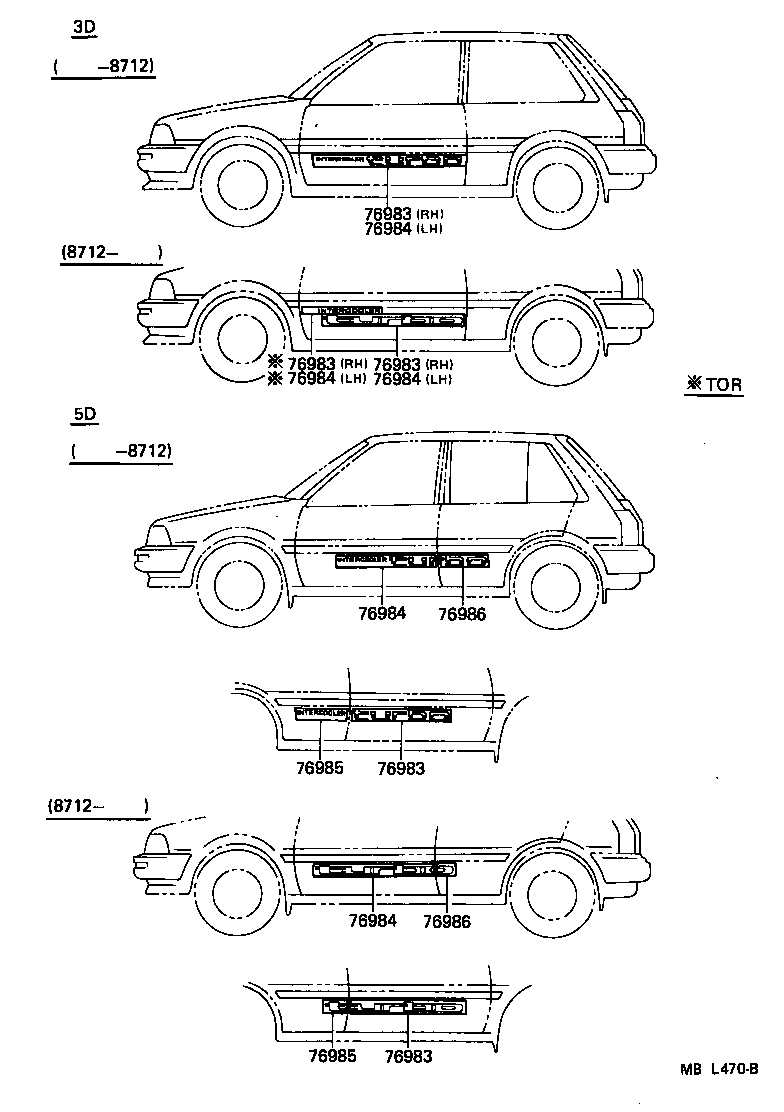

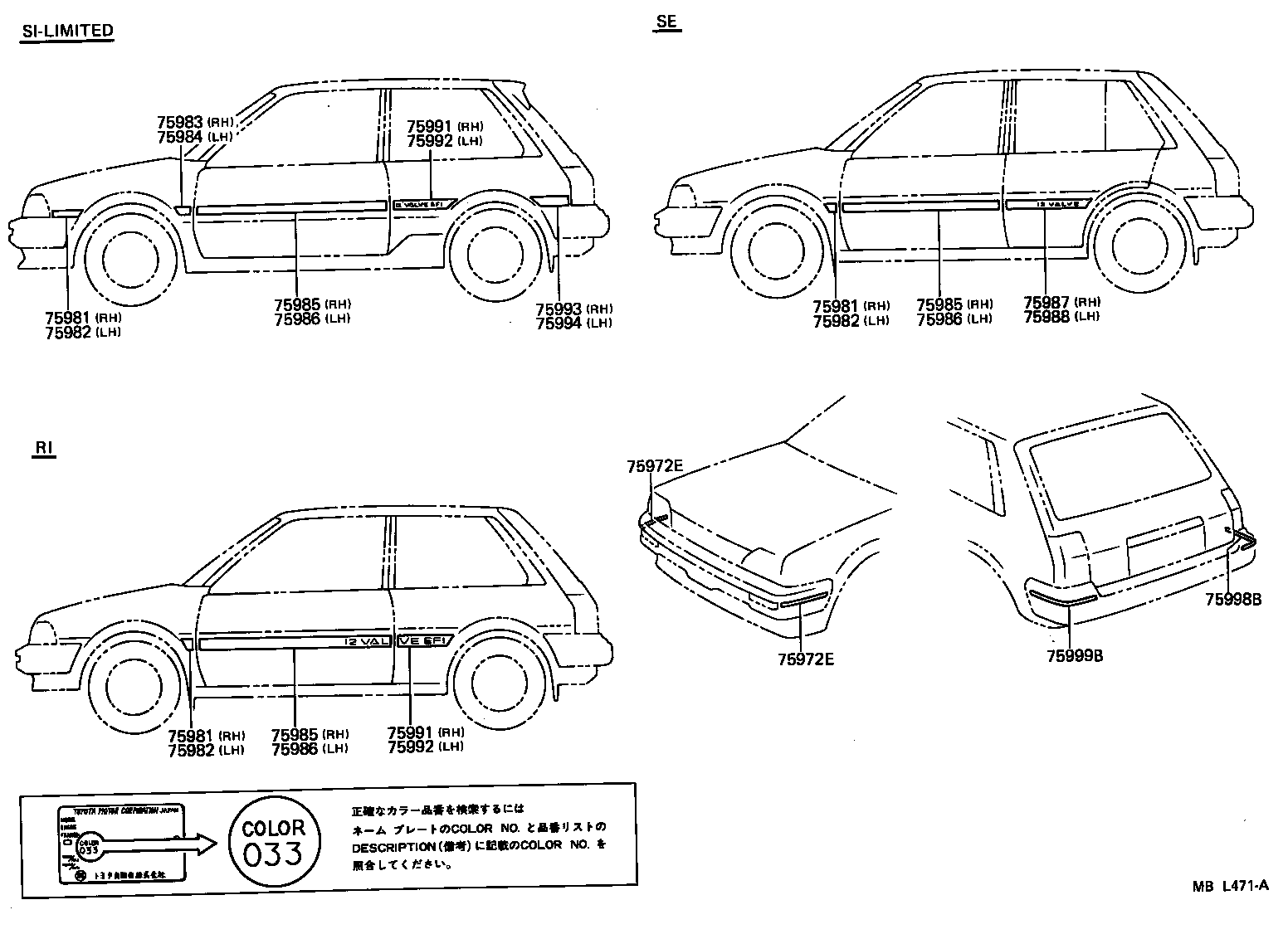

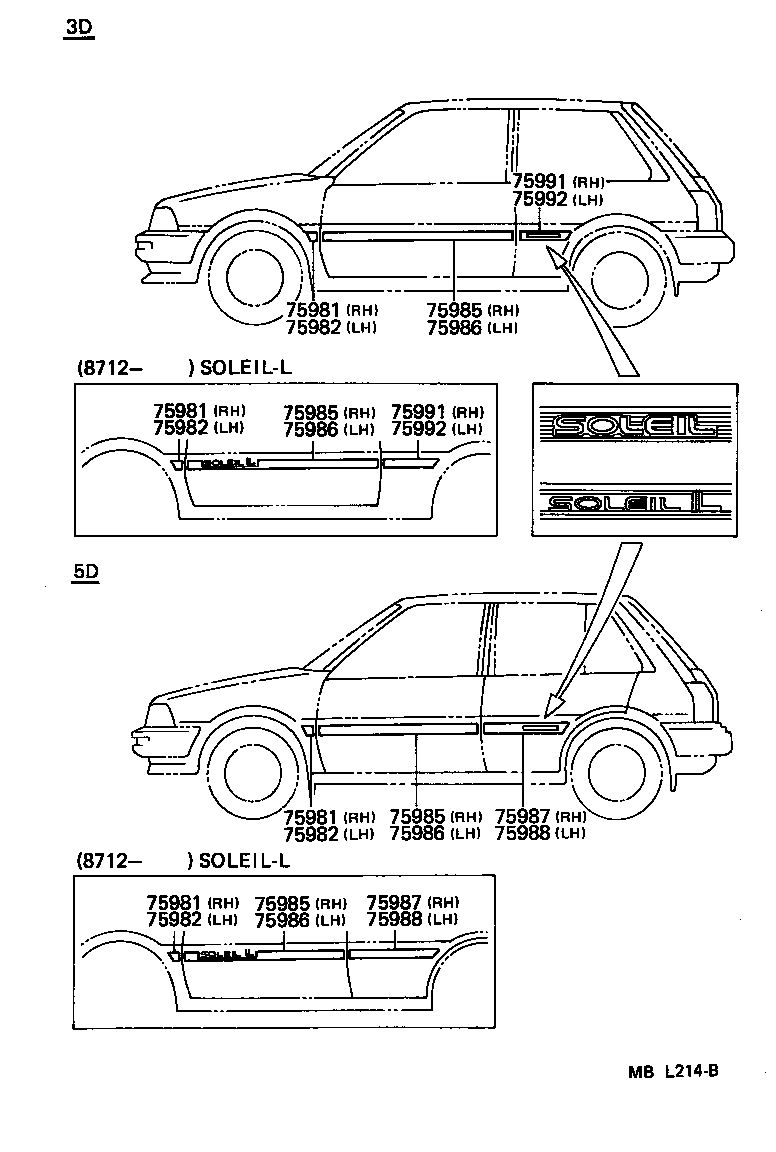

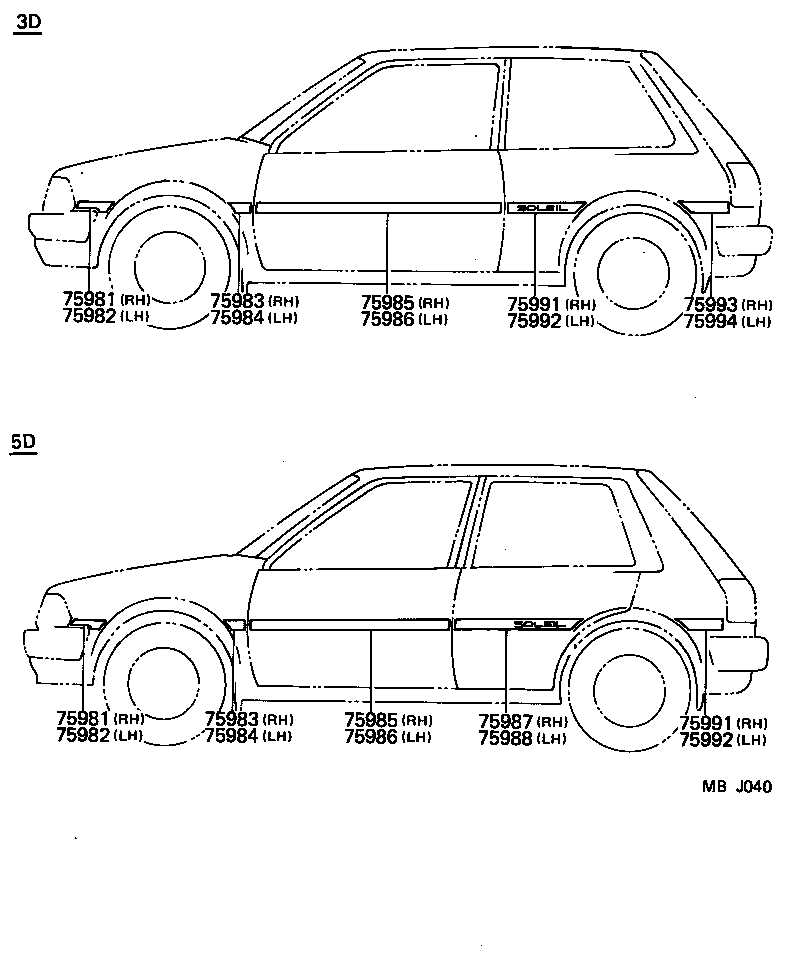

Figure MBH248B MBH248B 1984-10 → 1986-01 Figure MBK467A MBK467A 1986-01 → 1986-12 Figure MBL471A MBL471A 1986-12 → — Figure MBJ040 MBJ040 1985-01 → 1986-12 Figure MBL214B MBL214B 1986-12 → — Figure MBK468 MBK468 1986-01 → 1986-12 Figure MBL470B MBL470B 1986-12 → — Figure MBL558A MBL558A 1987-01 → 1987-03 Figure MBN167 MBN167 1987-08 → 1987-09 Figure MBS332 MBS332 1989-01 → 1989-03

Part groups

PNCDescription
75972E Stripe, Front Bumper
75979 Stripe, Fuel Filler Opening Lid
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75993 Stripe, Quarter, RH NO.2
75994 Stripe, Quarter, LH NO.2
75997B Stripe, Rear Bumper
75998B Stripe, Rear Bumper Side, RH
75999B Stripe, Rear Bumper Side, LH
76978 Stripe, Rear Body Back, RH
76979 Stripe, Rear Body Back, LH
76983 Stripe, Front Door Mark, RH
76984 Stripe, Front Door Mark, LH
76985 Stripe, Rear Door Mark, RH
76986 Stripe, Rear Door Mark, LH
76987 Stripe, Quarter Mark, RH
76988 Stripe, Quarter Mark, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
