Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 8 illustrations

Illustrations

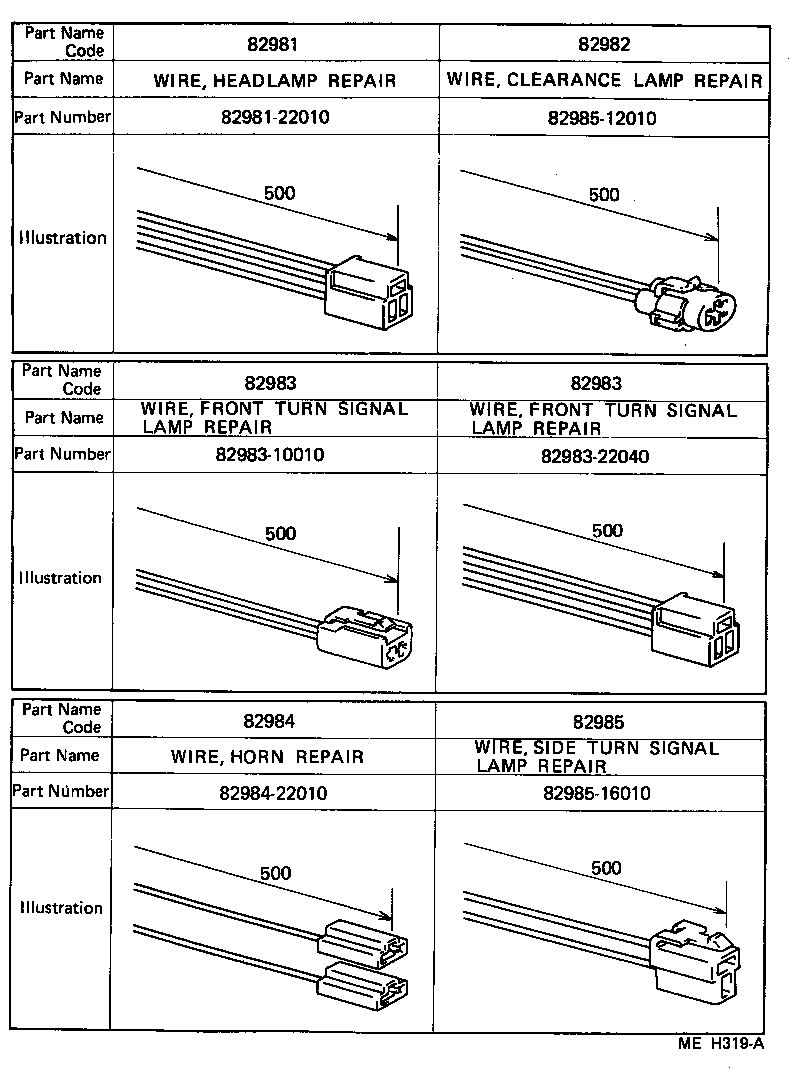

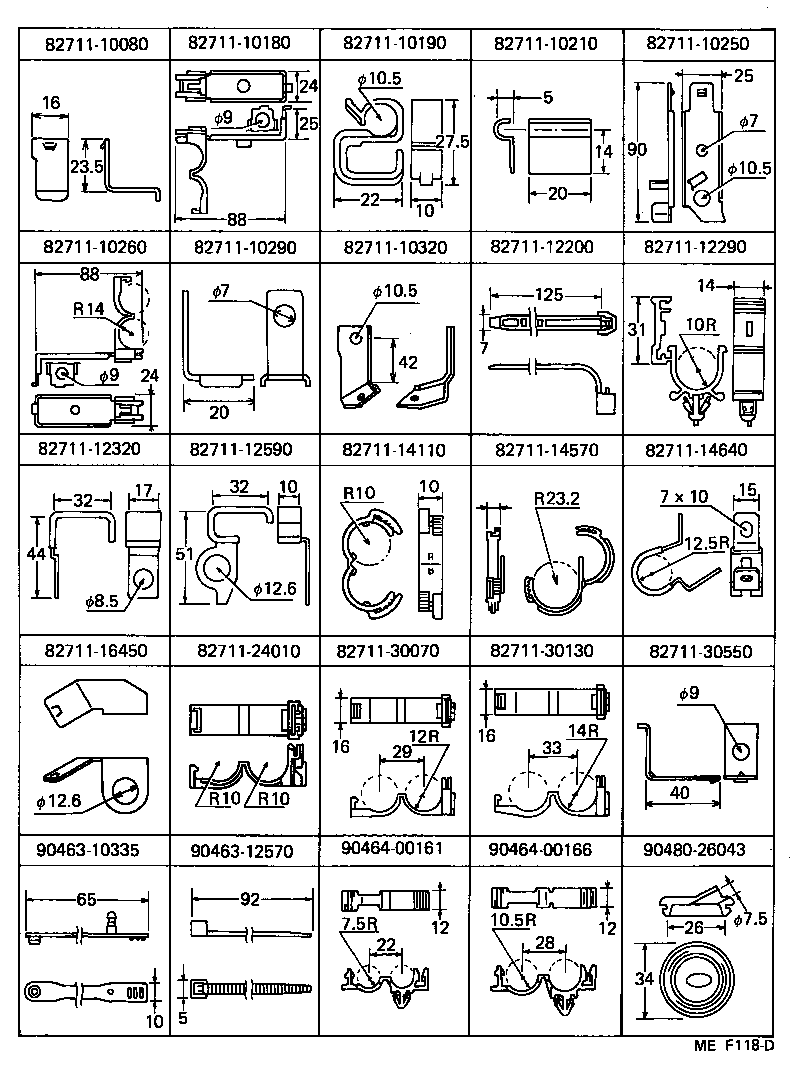

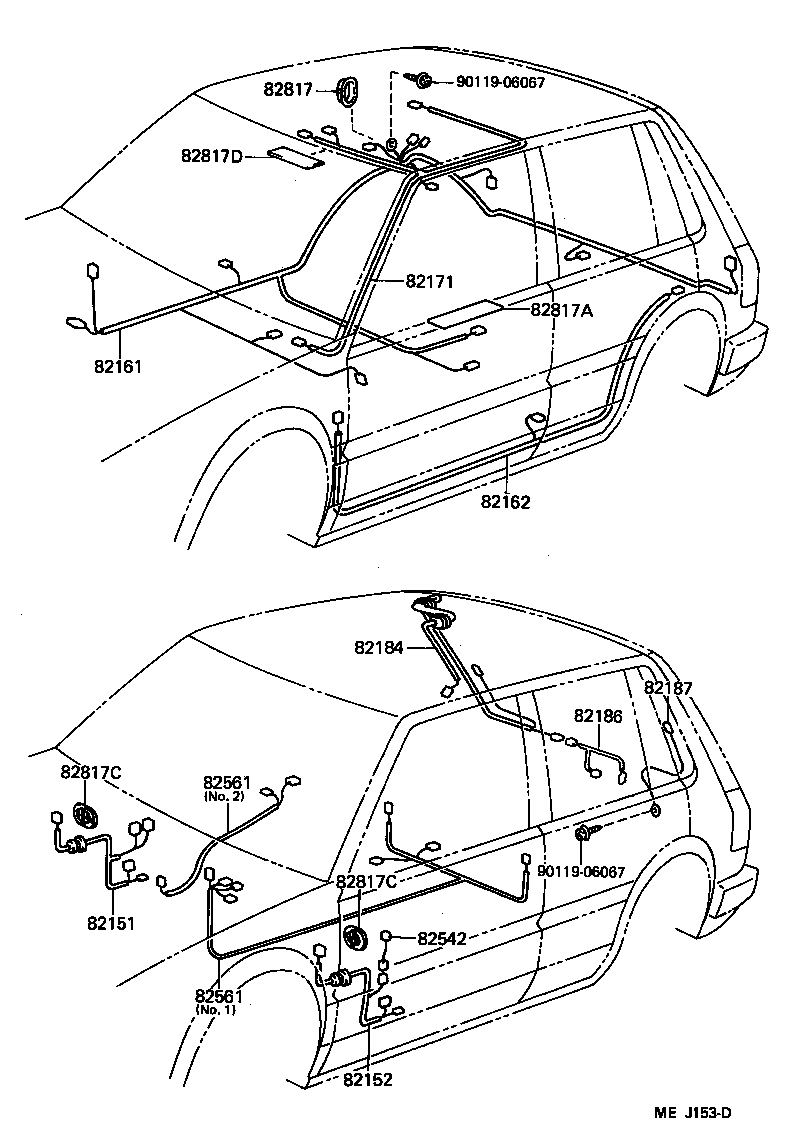

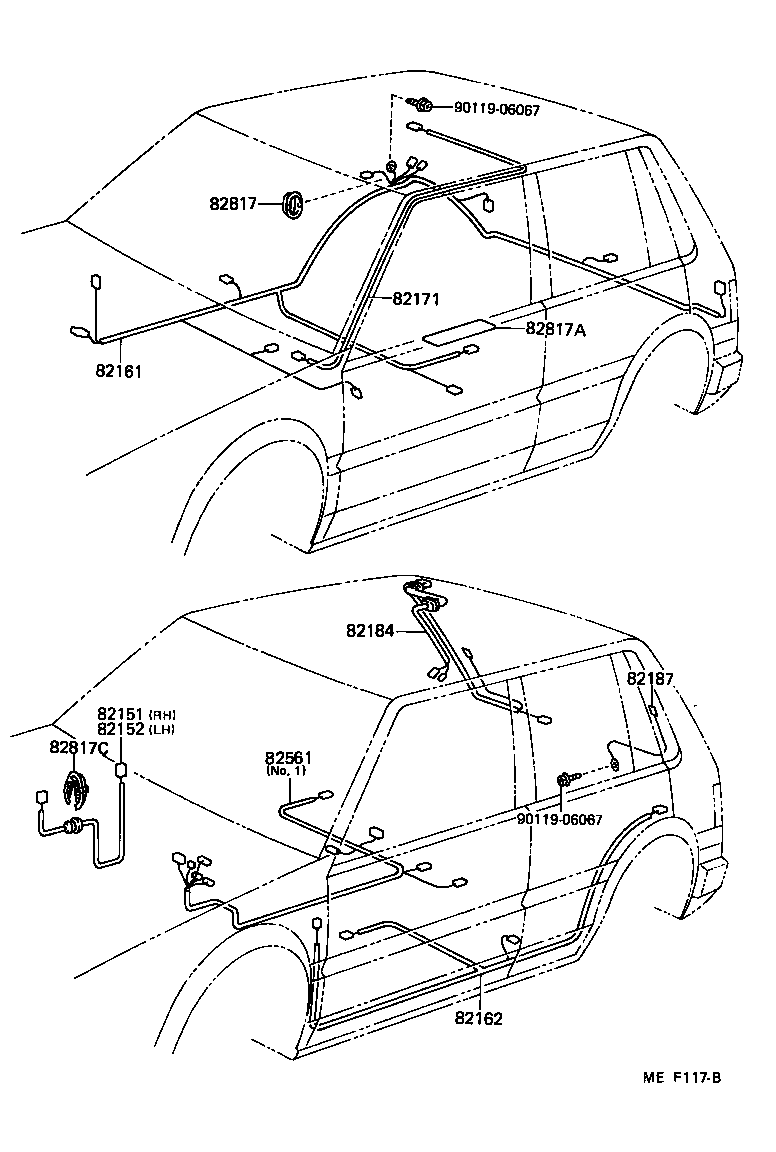

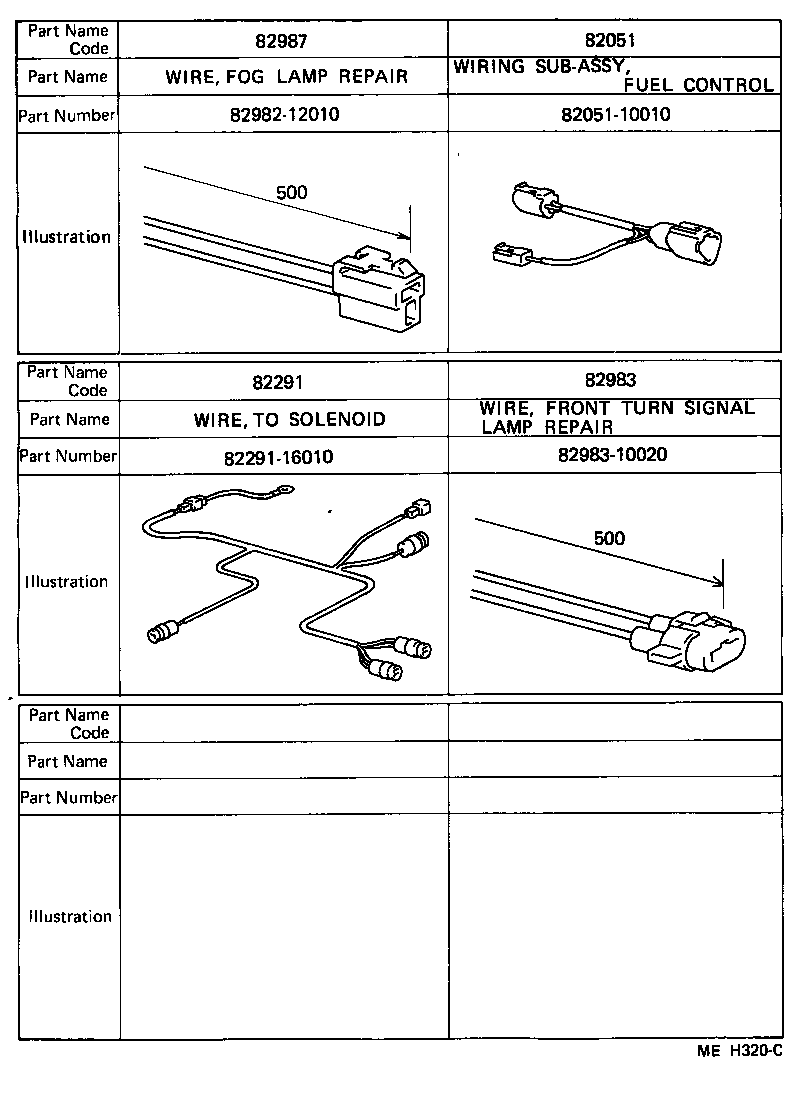

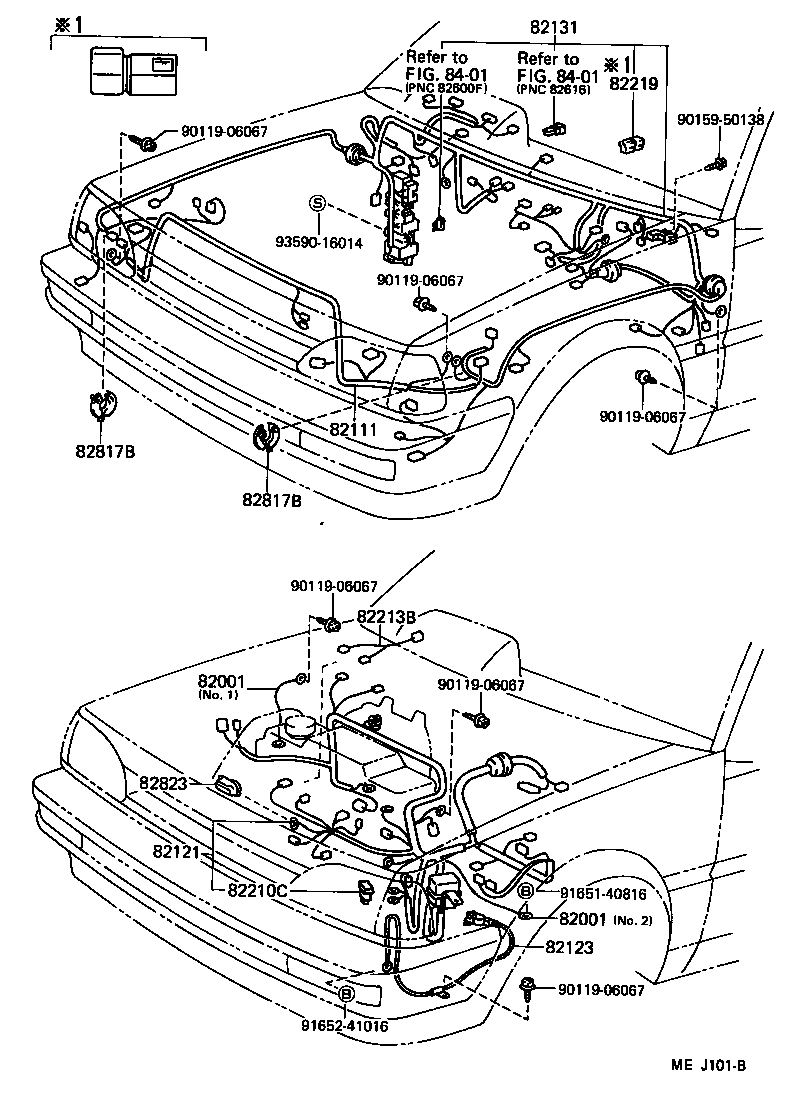

Figure MEF116F MEF116F 1984-10 → — Figure MEJ101B MEJ101B 1986-12 → — Figure MEF117B MEF117B 1984-10 → 1986-12 Figure MEJ153D MEJ153D 1986-12 → — Figure MEF118D MEF118D 1984-10 → — Figure MEJ257A MEJ257A 1984-10 → — Figure MEH319A MEH319A 1984-10 → — Figure MEH320C MEH320C 1984-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82213B Wire, Heater
82219 Wire, Thermo Sensor
82291 Wiring, TO Solenoid
82542 Wiring Assy, Power Window, Front RH
82561 Wire, Rear Speaker
82721 Bracket, Wiring Harness, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
