Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 3 illustrations

Illustrations

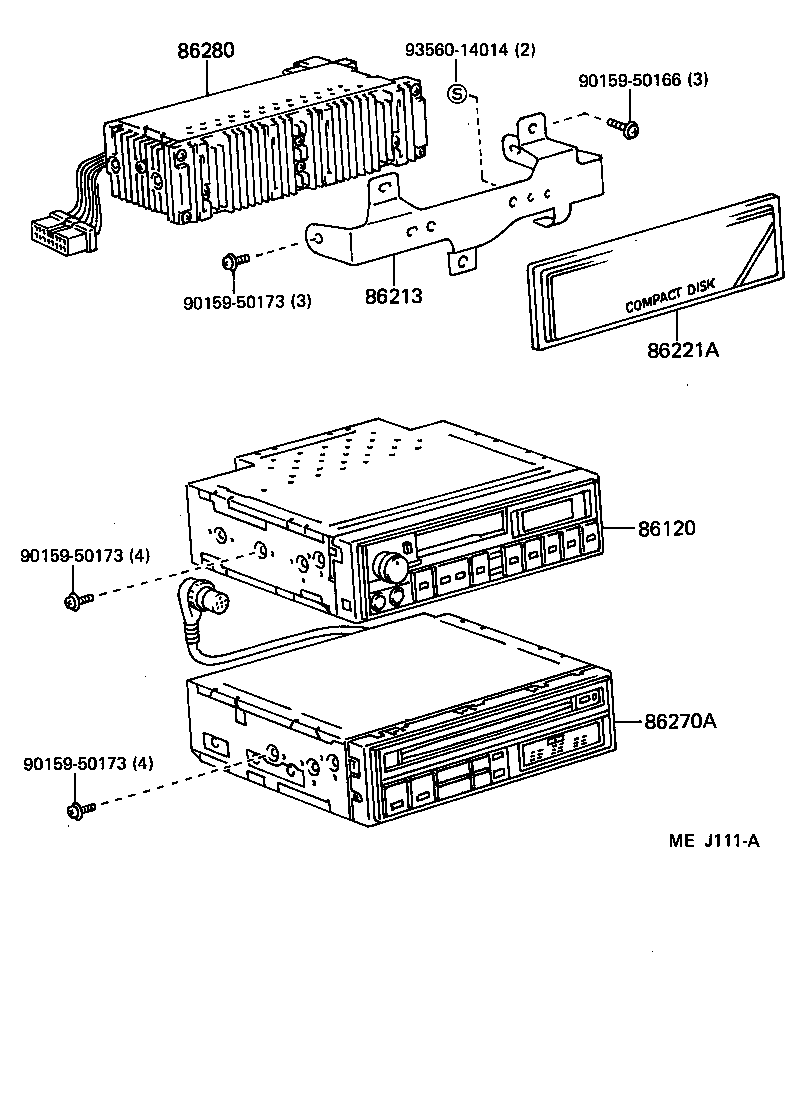

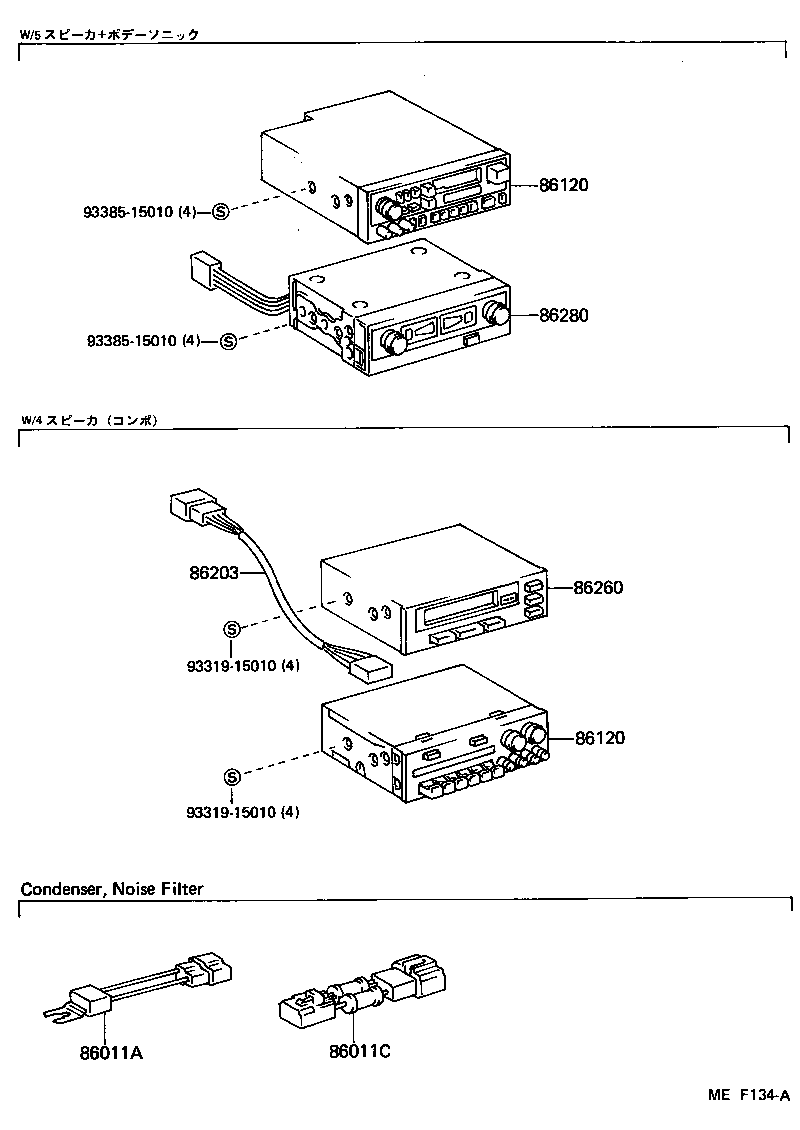

Figure MEF133C MEF133C 1984-10 → — Figure MEF134A MEF134A 1984-10 → — Figure MEJ111A MEJ111A 1986-12 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86215 Bracket, Radio, NO.5
86221A Panel, Radio Receiver
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86270A Disc Player Assy
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
