Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

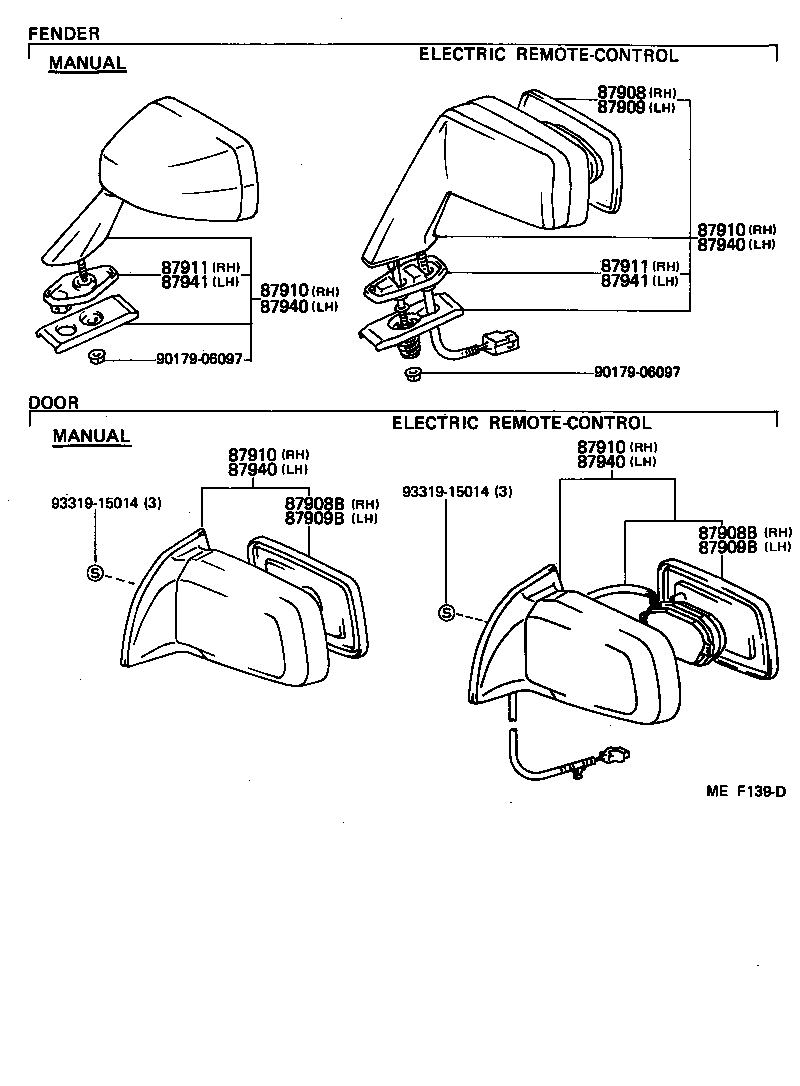

Figure MEF138 MEF138 1984-10 → — Figure MEF139D MEF139D 1984-10 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87908 Actuator Assy, Outer Mirror, RH
87908B Mirror Sub-assy, RH
87909 Actuator Assy, Outer Mirror, LH
87909B Mirror Sub-assy, LH
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
