Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

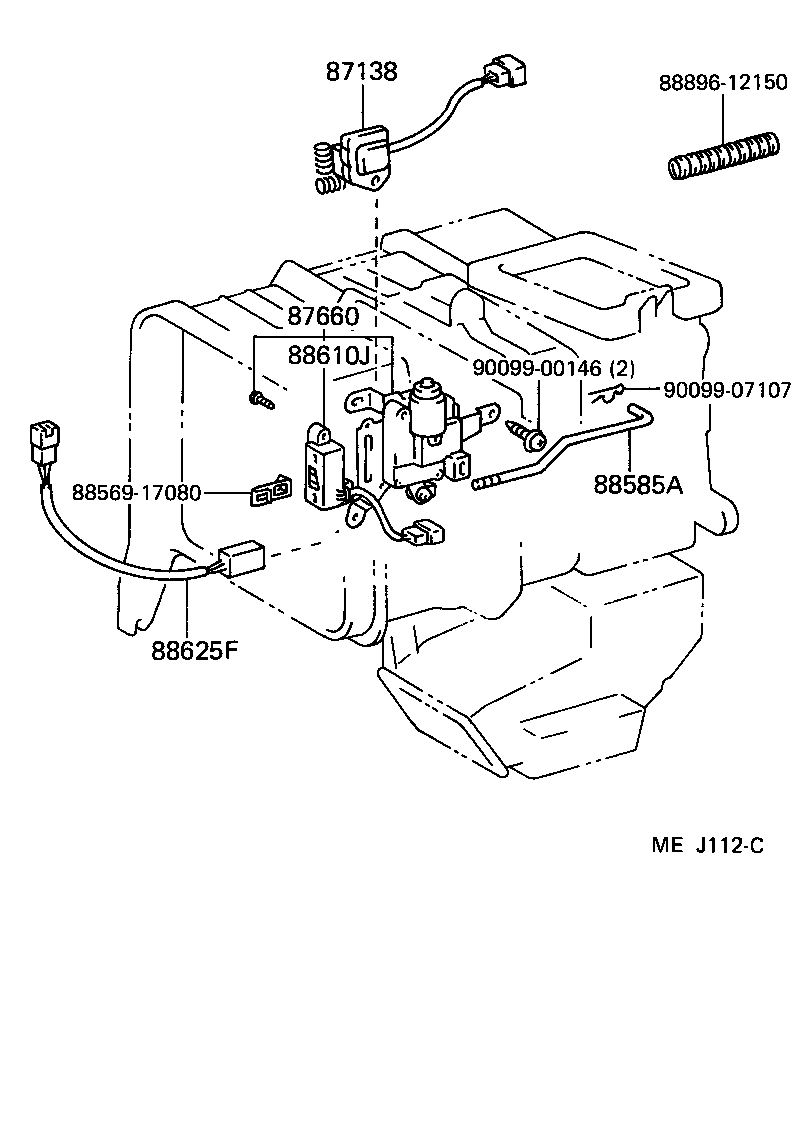

Figure MEF141E MEF141E 1984-10 → — Figure MEJ112C MEJ112C 1986-12 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87114 Cover, Heater
87130 Blower Assy, Heater, Front
87137 Cover, Heater Blower
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
88585A Shaft, Heater Air Damper
88610J Switch Assy, Control
88625F Sensor, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
