Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan
Discontinued model
Data version 1990-07
Heating & Air Conditioning - Cooler Piping
35 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

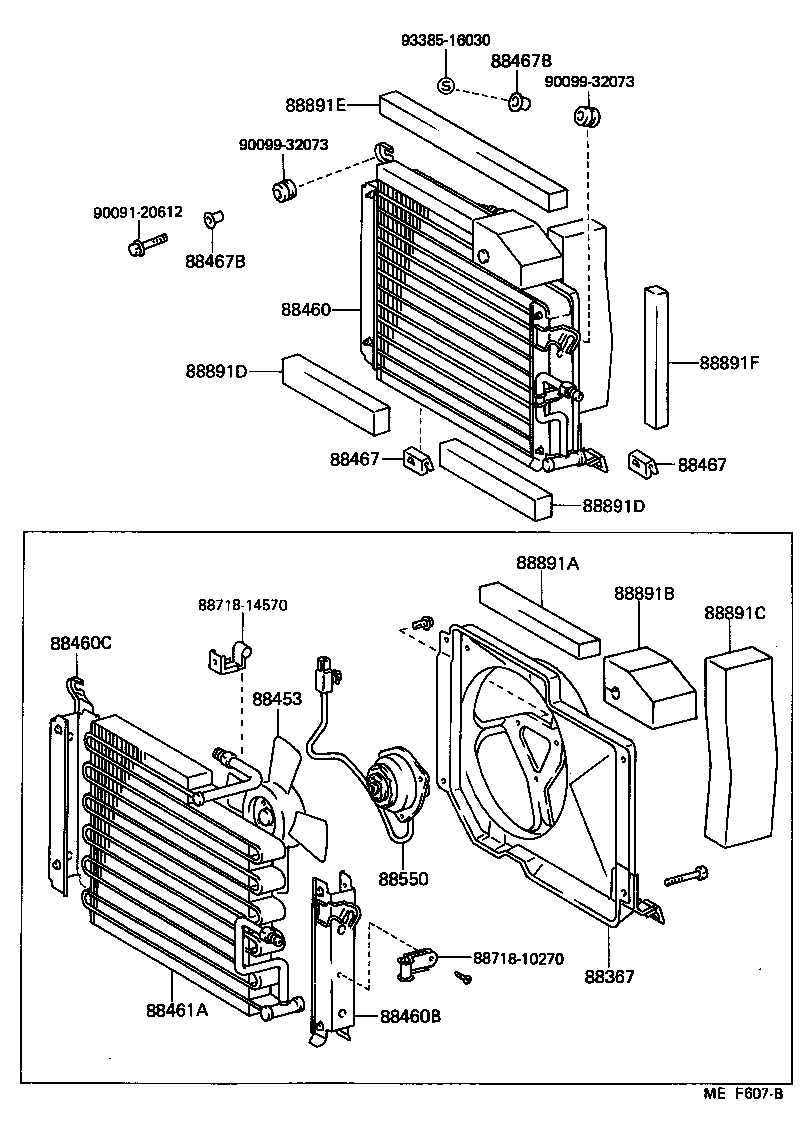

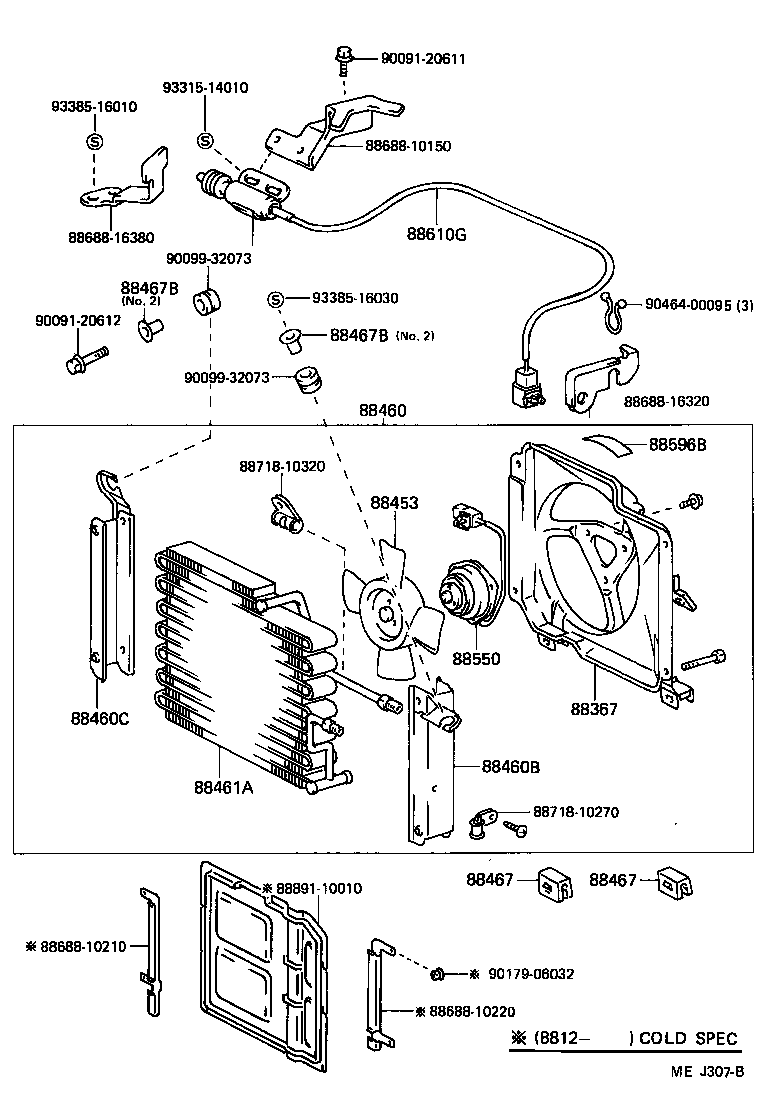

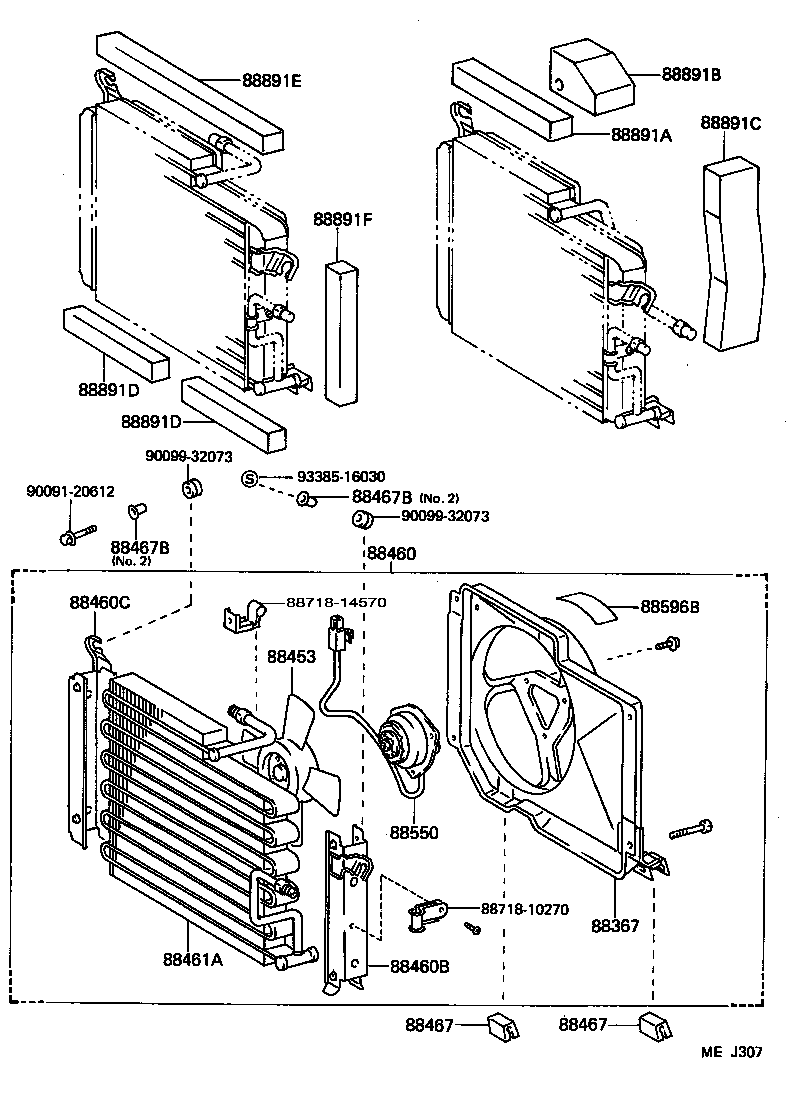

| 88367 | Shroud, Cooler Blower Fan |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88460 | Condenser Assy, Cooler |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88461A | Core, Cooler Condenser |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467B | Insulator, Cooler Condenser Mounting |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88472C | Insulator, Receiver Bracket |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88596B | Plate, Caution, NO.1 |
| 88605J | Harness Sub-assy, Air Conditioner Wiring |
| 88610G | Switch Assy, Control |
| 88630J | Relay Assy (FOR CONDENSER MOTOR) |
| 88635A | Resistor, Blower (FOR COOLER CONDENSER MOTOR) |
| 88645H | Switch, Pressure NO.1 |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |

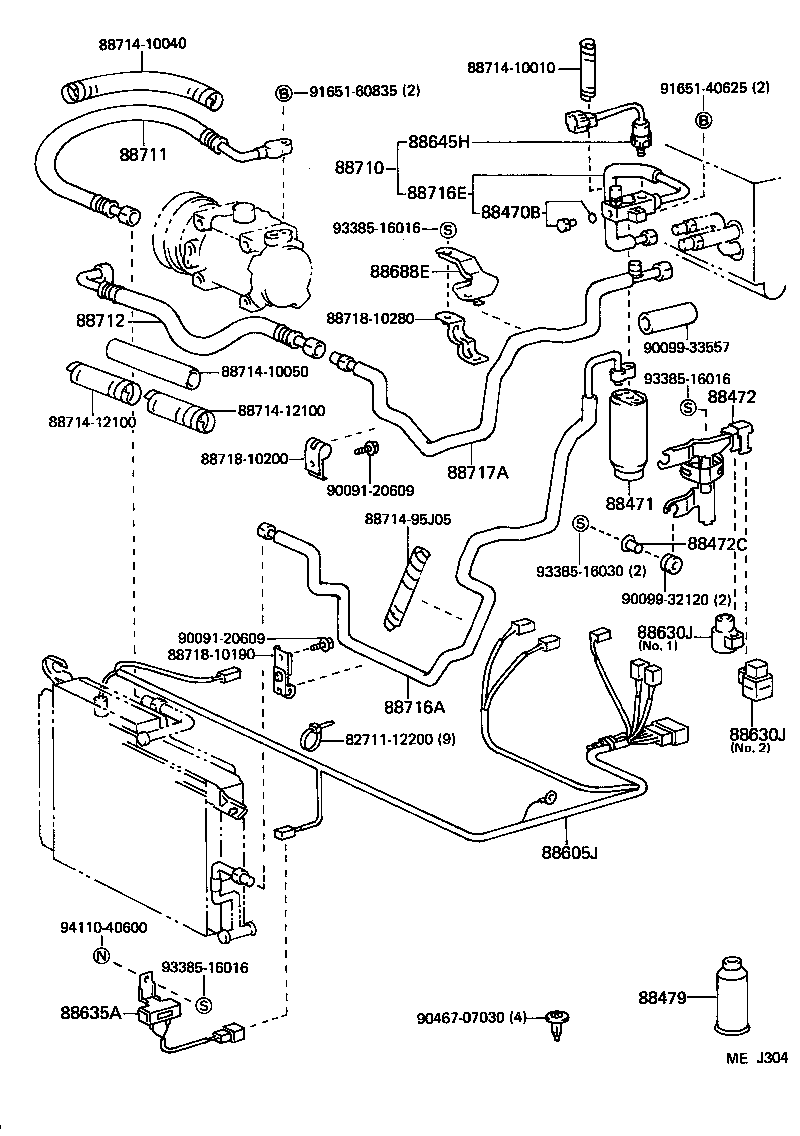

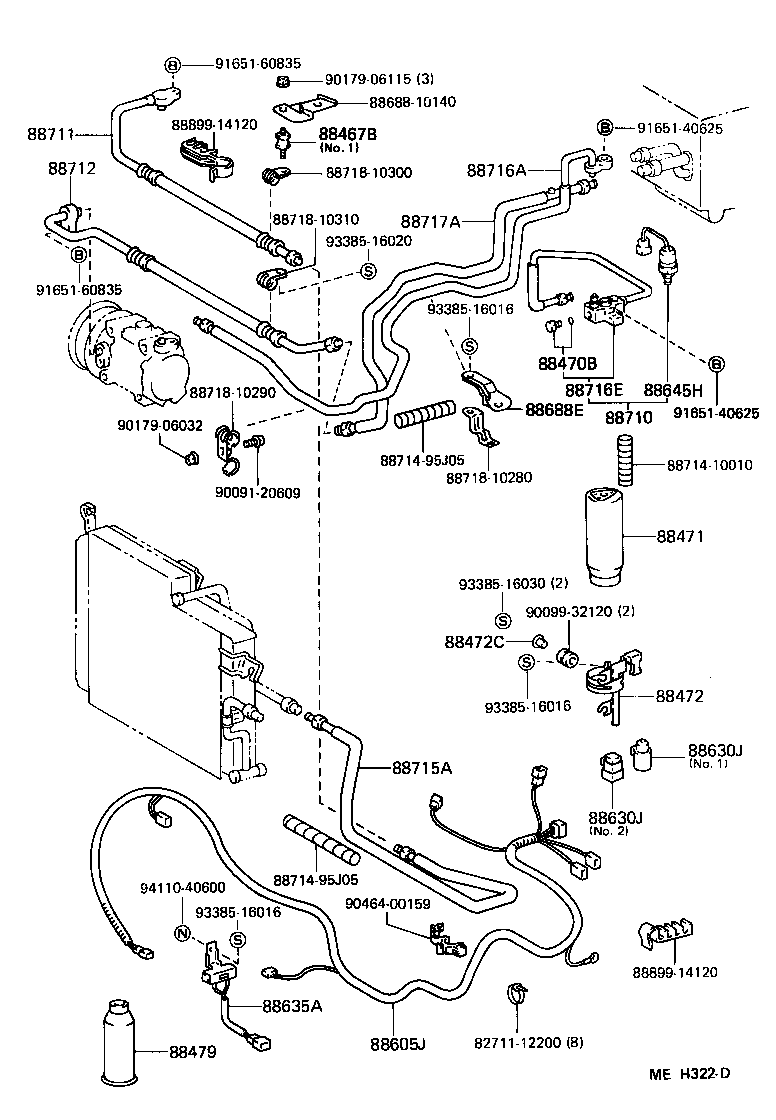

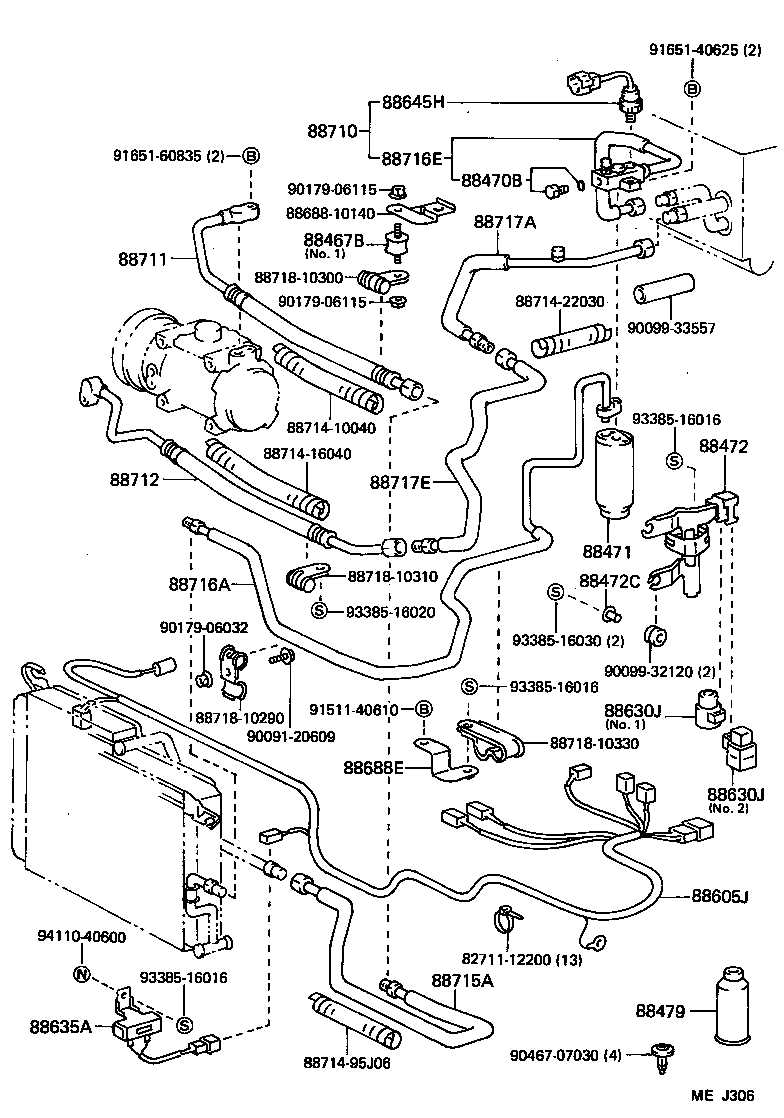

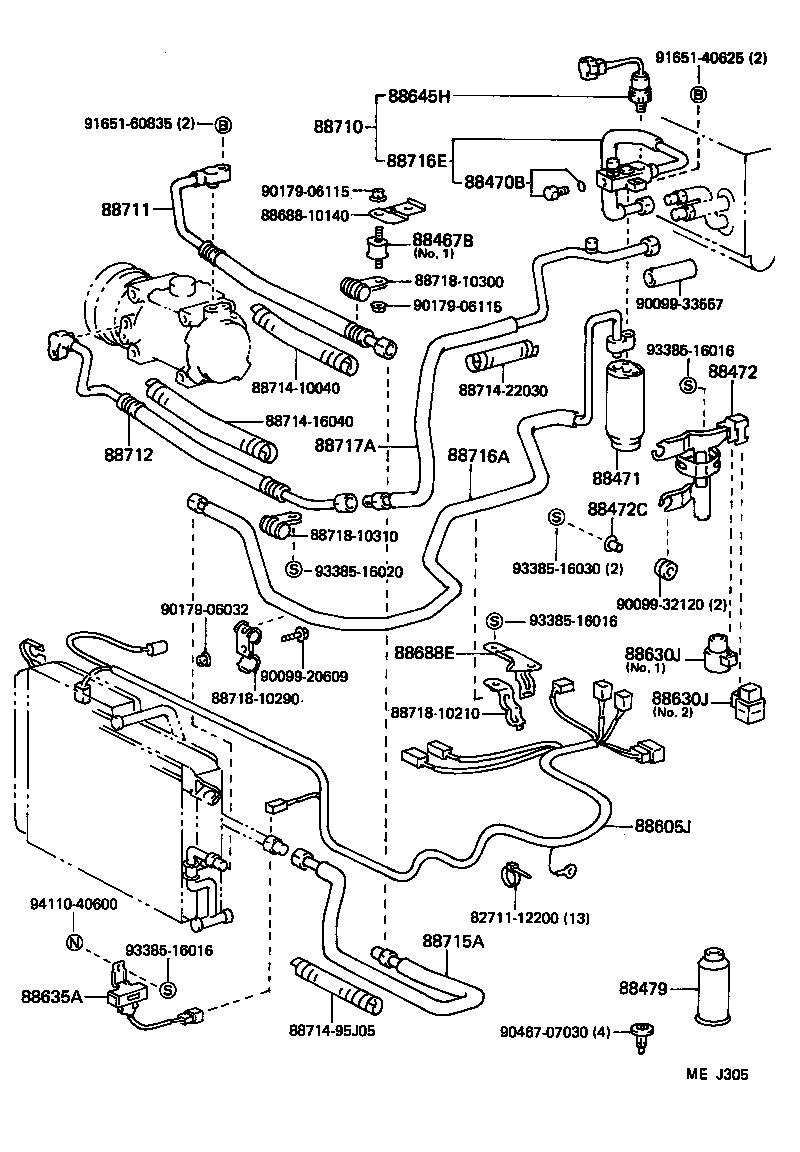

| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717E | Pipe, Cooler Refrigerant Suction, E |
| 88891A | Packing A (FOR COOLER) |
| 88891B | Packing B (FOR COOLER) |
| 88891C | Packing C (FOR COOLER) |
| 88891D | Packing D (FOR COOLER) |
| 88891E | Packing E (FOR COOLER) |
| 88891F | Packing F (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
