Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

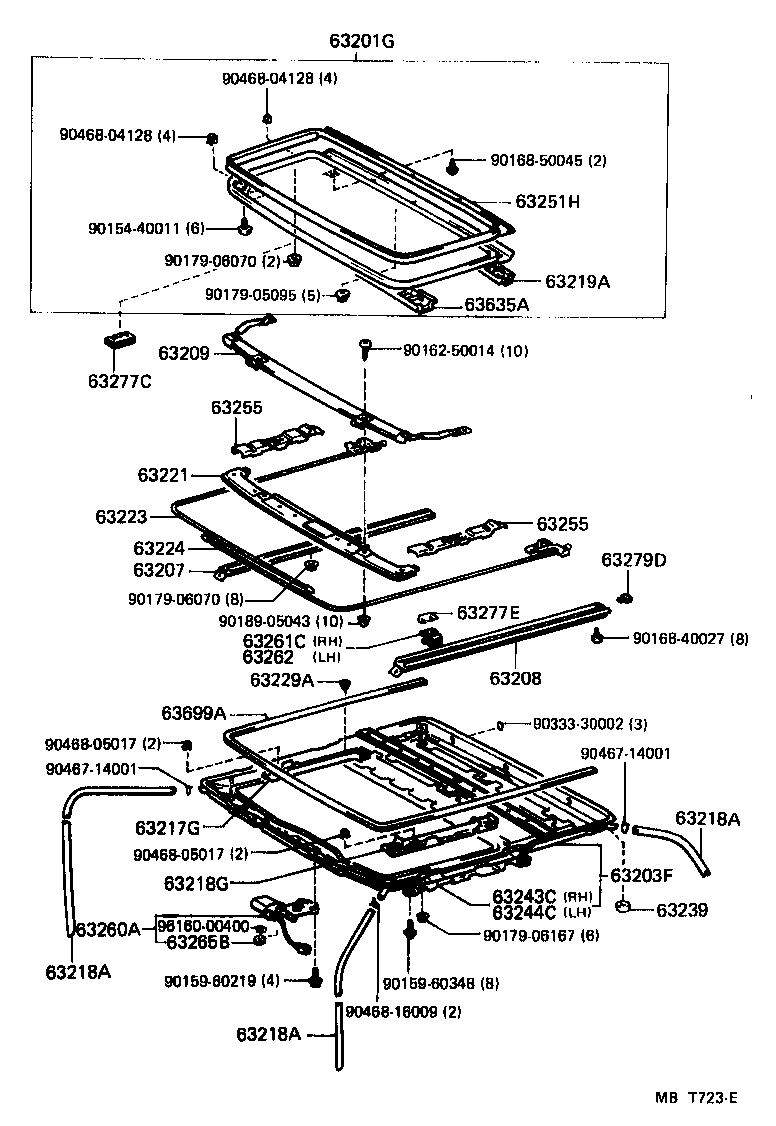

Exploded illustration MBT723E 63201G — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 9046804128 — not listed in this catalogue 9046804128 — not listed in this catalogue 9016850045 — not listed in this catalogue 63251H — WEATHERSTRIP, SLIDING ROOF (3 parts) 9015440011 — not listed in this catalogue 9017906070 — not listed in this catalogue 63219A — GARNISH, SLIDING ROOF, REAR (2 parts) 9017905095 — not listed in this catalogue 63635A — GARNISH, SLIDING ROOF, FRONT (2 parts) 9016250014 — not listed in this catalogue 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (3 parts) 63277C — SHIM, SLIDING ROOF PANEL (2 parts) 63255 — COVER, SLIDING ROOF GUIDE RAIL, RH (3 parts) 63221 — CASING, SLIDING ROOF CABLE GUIDE (2 parts) 63223 — CABLE, SLIDING ROOF DRIVE, RH (4 parts) 63255 — COVER, SLIDING ROOF GUIDE RAIL, RH (3 parts) 63224 — CABLE, SLIDING ROOF DRIVE, LH (6 parts) 63279D — STOPPER, SLIDING ROOF GUIDE RAIL (2 parts) 63207 — RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH (4 parts) 9017906070 — not listed in this catalogue 63277E — SHIM, SLIDING ROOF PANEL (2 parts) 9018905043 — not listed in this catalogue 63261C — SHOE, SLIDING ROOF, FRONT RH (2 parts) 9016840027 — not listed in this catalogue 63262 — SHOE, SLIDING ROOF, FRONT LH (2 parts) 63208 — RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH (4 parts) 63229A — STOPPER, SLIDING ROOF SUNSHADE (2 parts) 63699A — SEAL, SLIDING ROOF GUIDE RAIL (3 parts) 9033330002 — not listed in this catalogue 9046805017 — not listed in this catalogue 9046714001 — not listed in this catalogue 9046714001 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (8 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (2 parts) 9046805017 — not listed in this catalogue 63203F — HOUSING SUB-ASSY, SLIDING ROOF (4 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63239 — STOPPER, SLIDING ROOF PANEL (4 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 9616000400 — not listed in this catalogue 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (7 parts) 9017906167 — not listed in this catalogue 63265B — GEAR, SLIDING ROOF DRIVE (2 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (8 parts) 9015960219 — not listed in this catalogue 9015960348 — not listed in this catalogue 9046816009 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (8 parts)
MBT723E · 30 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-10050 note Glass Sub-assy, Sliding Roof
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥108,000
63201-10051 note Glass Sub-assy, Sliding Roof
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥108,000
63203F — Housing Sub-assy, Sliding Roof
63203-10040 Housing Sub-assy, Sliding Roof
1989-12 → 1992-01 ended
EP82 CAN,CANSI ¥35,100
63203-10050 Housing Sub-assy, Sliding Roof
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥35,100
63203-10050 Housing Sub-assy, Sliding Roof
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥35,100
63203-10060 Housing Sub-assy, Sliding Roof
1992-01 → 1994-05 ended
EP82 CAN ¥35,100
63207 — Rail Sub-assy, Sliding Roof Guide, RH
63207-10030 Rail Sub-assy, Sliding Roof Guide, RH
1989-12 → 1991-03 ended
EP82 CAN,CANSI ¥20,500
63207-10031 Rail Sub-assy, Sliding Roof Guide, RH
1991-03 → 1994-05 ended
EP82 CAN,CANSI ¥20,200
63207-10040 Rail Sub-assy, Sliding Roof Guide, RH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,100
63207-10040 Rail Sub-assy, Sliding Roof Guide, RH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥9,100
63208 — Rail Sub-assy, Sliding Roof Guide, LH
63208-10030 Rail Sub-assy, Sliding Roof Guide, LH
1989-12 → 1991-03 ended
EP82 CAN,CANSI ¥20,500
63208-10031 Rail Sub-assy, Sliding Roof Guide, LH
1991-03 → 1994-05 ended
EP82 CAN,CANSI ¥20,200
63208-10040 Rail Sub-assy, Sliding Roof Guide, LH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,100
63208-10040 Rail Sub-assy, Sliding Roof Guide, LH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥9,100
63209 — Panel Sub-assy, Roof Wind Deflector
63209-10050 Panel Sub-assy, Roof Wind Deflector
1989-12 → 1991-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥18,700
63209-10051 Panel Sub-assy, Roof Wind Deflector
1991-05 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥18,400
63209-10051 Panel Sub-assy, Roof Wind Deflector
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥18,400
63217G — Garnish, Sliding Roof Side, RH
63217-10020 Garnish, Sliding Roof Side, RH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥2,030
63217-10020 Garnish, Sliding Roof Side, RH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥2,030
63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-10050 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-12 → 1994-05 ended
EP82 CAN,CANSI ¥580
63249-10060 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1991-02 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥580
63249-10060 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥580
63249-12120 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-12 → 1991-02 ended
EP8# GI,GT,S,SI,X,XLTD ¥640
63249-16070 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1992-01 → 1994-05 ended
EP82 CAN ¥1,430
63249-17030 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥1,490
63249-17030 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥1,490
63249-89104 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-12 → 1992-01 ended
EP82 CAN,CANSI ¥1,400
63218G — Garnish, Sliding Roof Side, LH
63218-10020 Garnish, Sliding Roof Side, LH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥2,030
63218-10020 Garnish, Sliding Roof Side, LH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥2,030
63219A — Garnish, Sliding Roof, Rear
63219-10030 Garnish, Sliding Roof, Rear
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥3,610
63219-10030 Garnish, Sliding Roof, Rear
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥3,610
63221 — Casing, Sliding Roof Cable Guide
63221-10020 Casing, Sliding Roof Cable Guide
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥12,200
63221-10020 Casing, Sliding Roof Cable Guide
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥12,200
63223 — Cable, Sliding Roof Drive, RH
63223-10020 Cable, Sliding Roof Drive, RH
1989-12 → 1991-02 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,500
63223-10021 Cable, Sliding Roof Drive, RH
1991-02 → 1991-06 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,500
63223-10022 Cable, Sliding Roof Drive, RH
1991-06 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,400
63223-10022 Cable, Sliding Roof Drive, RH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥9,400
63224 — Cable, Sliding Roof Drive, LH
63206-10020 Cable, Sliding Roof Drive, LH
1989-12 → 1991-03 ended
EP82 CAN,CANSI ¥21,600
63206-16010 Cable, Sliding Roof Drive, LH
1991-03 → 1994-05 ended
EP82 CAN,CANSI ¥19,500
63224-10020 Cable, Sliding Roof Drive, LH
1989-12 → 1991-02 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,500
63224-10021 Cable, Sliding Roof Drive, LH
1991-02 → 1991-06 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,500
63224-10022 Cable, Sliding Roof Drive, LH
1991-06 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥9,400
63224-10022 Cable, Sliding Roof Drive, LH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥9,400
63229A — Stopper, Sliding Roof Sunshade
63229-10020 Stopper, Sliding Roof Sunshade
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥270
63229-10020 Stopper, Sliding Roof Sunshade
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥270
63239 — Stopper, Sliding Roof Panel
63239-10010 Stopper, Sliding Roof Panel
1989-12 → 1994-05 ended
EP82 CAN,CANSI ¥1,460
63239-50010 Stopper, Sliding Roof Panel
1989-12 → 1992-01 ended
EP8# GI,GT,S,SI,X,XLTD ¥620
63239-50010 Stopper, Sliding Roof Panel
1992-01 → 1994-05 ended
EP8# GI,GT,S,XLTD ¥620
63239-50010 Stopper, Sliding Roof Panel
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥620
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-10020 Bracket, Sliding Roof Housing Center Mounting, RH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥4,240
63243-10020 Bracket, Sliding Roof Housing Center Mounting, RH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥4,240
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-10020 Bracket, Sliding Roof Housing Center Mounting, LH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥4,240
63244-10020 Bracket, Sliding Roof Housing Center Mounting, LH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥4,240
63251H — Weatherstrip, Sliding Roof
63251-10040 Weatherstrip, Sliding Roof
1989-12 → 1994-05 ended
EP82 CAN,CANSI ¥8,500
63251-10050 Weatherstrip, Sliding Roof
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥5,300
63251-10050 Weatherstrip, Sliding Roof
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥5,300
63255 — Cover, Sliding Roof Guide Rail, RH
63255-10010 Cover, Sliding Roof Guide Rail, RH
1989-12 → 1994-05 ended
EP82 CAN,CANSI ¥1,160
63255-10030 Cover, Sliding Roof Guide Rail, RH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥910
63255-10030 Cover, Sliding Roof Guide Rail, RH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥910
63260A — Gear Sub-assy, Sliding Roof Drive
63260-10030 Gear Sub-assy, Sliding Roof Drive
1989-12 → 1991-03 ended
EP82 CAN,CANSI ¥42,800
63260-10031 Gear Sub-assy, Sliding Roof Drive
1991-03 → 1992-01 ended
EP82 CAN,CANSI ¥46,700
63260-10040 Gear Sub-assy, Sliding Roof Drive
1989-12 → 1991-04 ended
EP8# GI,GT,S,SI,X,XLTD ¥42,800
63260-10041 Gear Sub-assy, Sliding Roof Drive
1991-04 → 1992-01 ended
EP8# GI,GT,S,SI,X,XLTD ¥46,700
63260-10050 Gear Sub-assy, Sliding Roof Drive
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥46,900
63260-10050 Gear Sub-assy, Sliding Roof Drive
1992-01 → 1994-05 ended
EP8# GI,GT,S,XLTD ¥46,900
63260-10060 Gear Sub-assy, Sliding Roof Drive
1992-01 → 1994-05 ended
EP82 CAN ¥46,700
63261C — Shoe, Sliding Roof, Front RH
63261-10030 Shoe, Sliding Roof, Front RH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥1,220
63261-10030 Shoe, Sliding Roof, Front RH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥1,220
63262 — Shoe, Sliding Roof, Front LH
63262-10020 Shoe, Sliding Roof, Front LH
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥1,220
63262-10020 Shoe, Sliding Roof, Front LH
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥1,220
63265B — Gear, Sliding Roof Drive
63265-20010 Gear, Sliding Roof Drive
1989-12 → 1994-05 ended
EP8# CAN,CANSI,GI,GT,S,SI,X,XLTD ¥1,600
63265-20010 Gear, Sliding Roof Drive
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥1,600
63277C — Shim, Sliding Roof Panel
63277-24010 note Shim, Sliding Roof Panel
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥760
63277-24010 note Shim, Sliding Roof Panel
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥760
63277E — Shim, Sliding Roof Panel
63277-30020 Shim, Sliding Roof Panel
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥220
63277-30020 Shim, Sliding Roof Panel
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥220
63279D — Stopper, Sliding Roof Guide Rail
63279-32010 Stopper, Sliding Roof Guide Rail
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥550
63279-32010 Stopper, Sliding Roof Guide Rail
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥550
63635A — Garnish, Sliding Roof, Front
63635-10010 Garnish, Sliding Roof, Front
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥4,530
63635-10010 Garnish, Sliding Roof, Front
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥4,530
63699A — Seal, Sliding Roof Guide Rail
63699-10010 Seal, Sliding Roof Guide Rail
1989-12 → 1994-05 ended
EP82 CAN,CANSI ¥1,320
63699-32020 Seal, Sliding Roof Guide Rail
1989-12 → 1994-05 ended
EP8# GI,GT,S,SI,X,XLTD ¥1,680
63699-32020 Seal, Sliding Roof Guide Rail
1994-05 → 1996-01 ended
EP8# GI,GT,S ¥1,680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
