Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

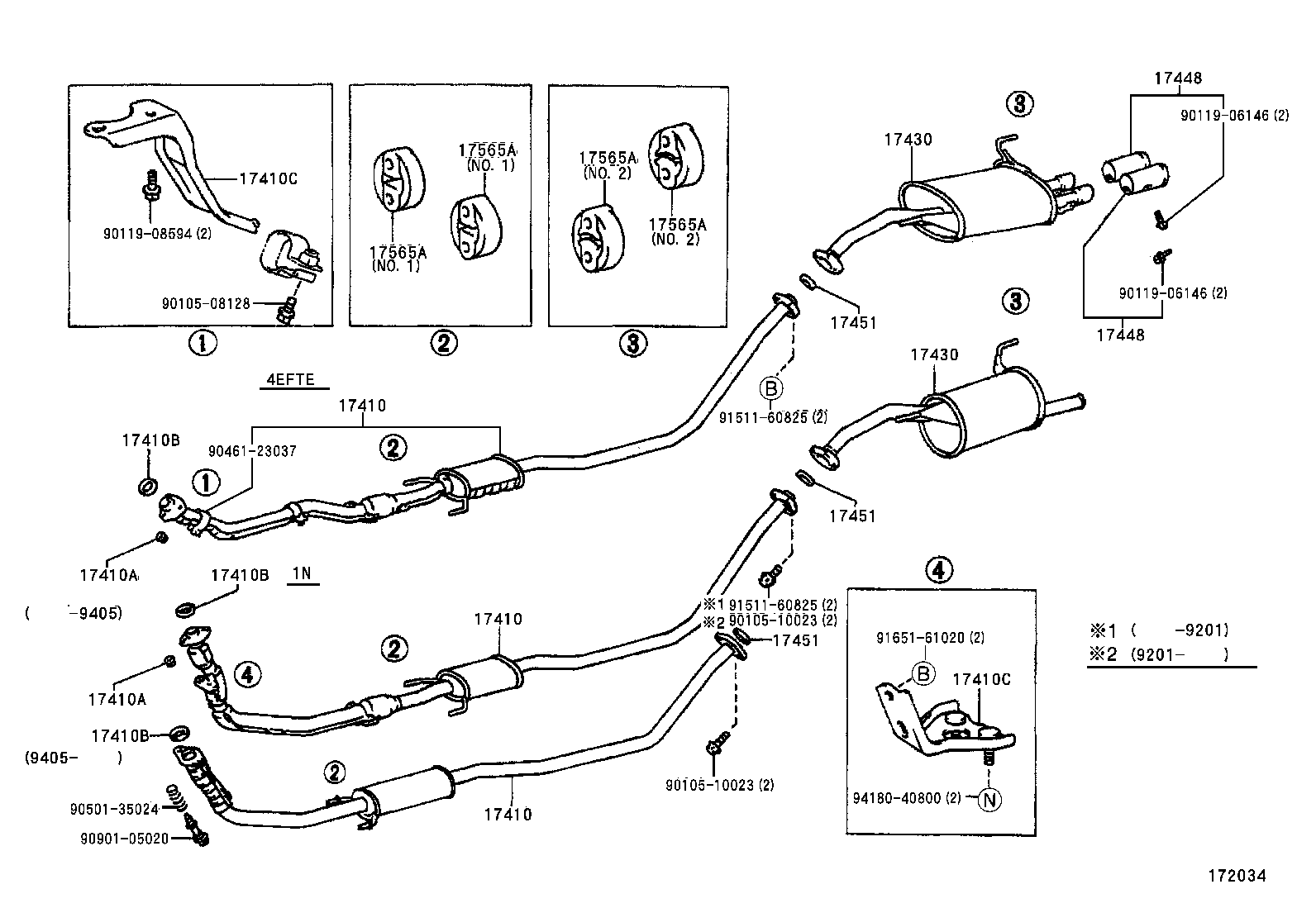

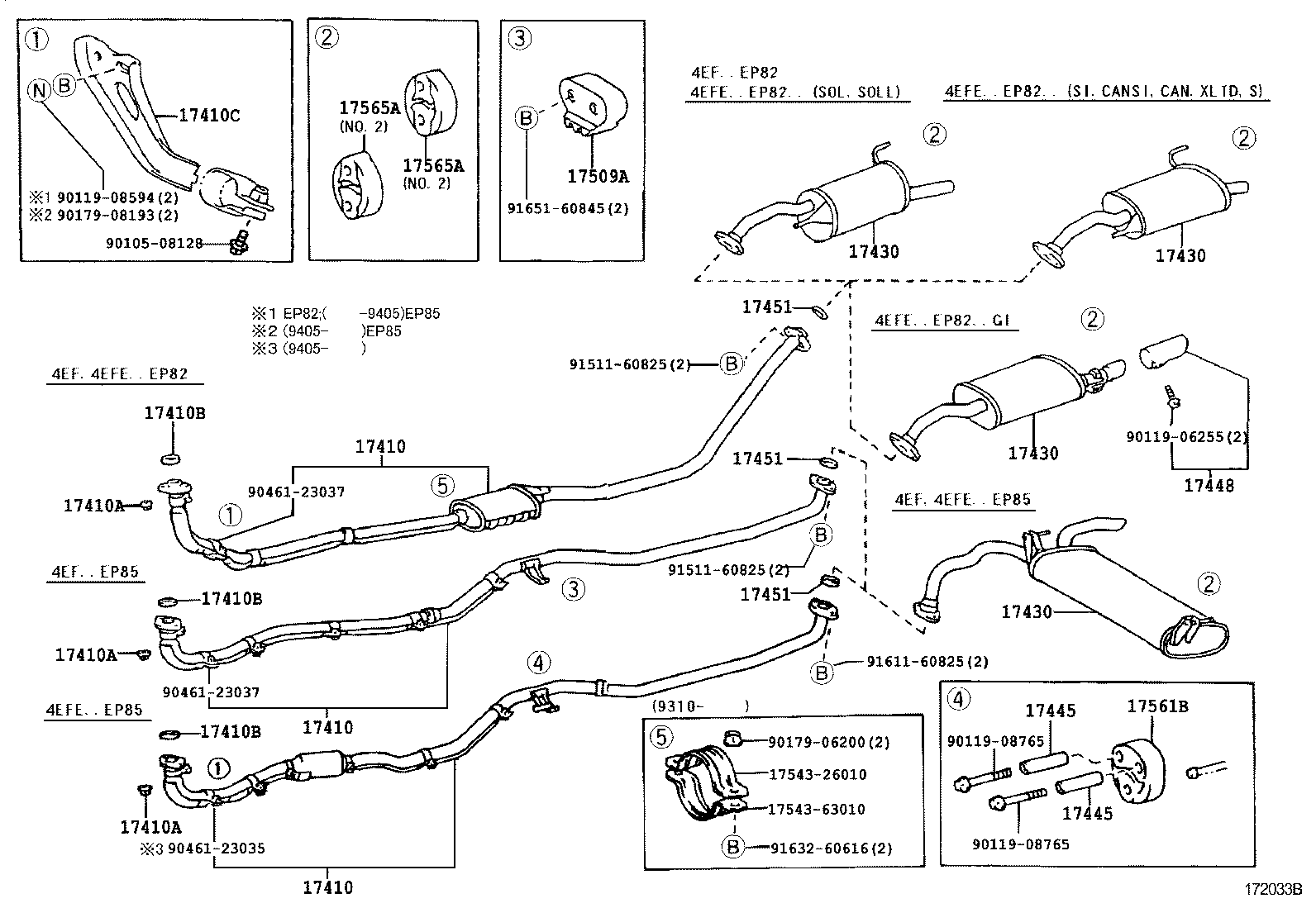

Exhaust Pipe
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17445 | Collar, Exhaust Pipe |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17565A | Support, Exhaust Pipe, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
