Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

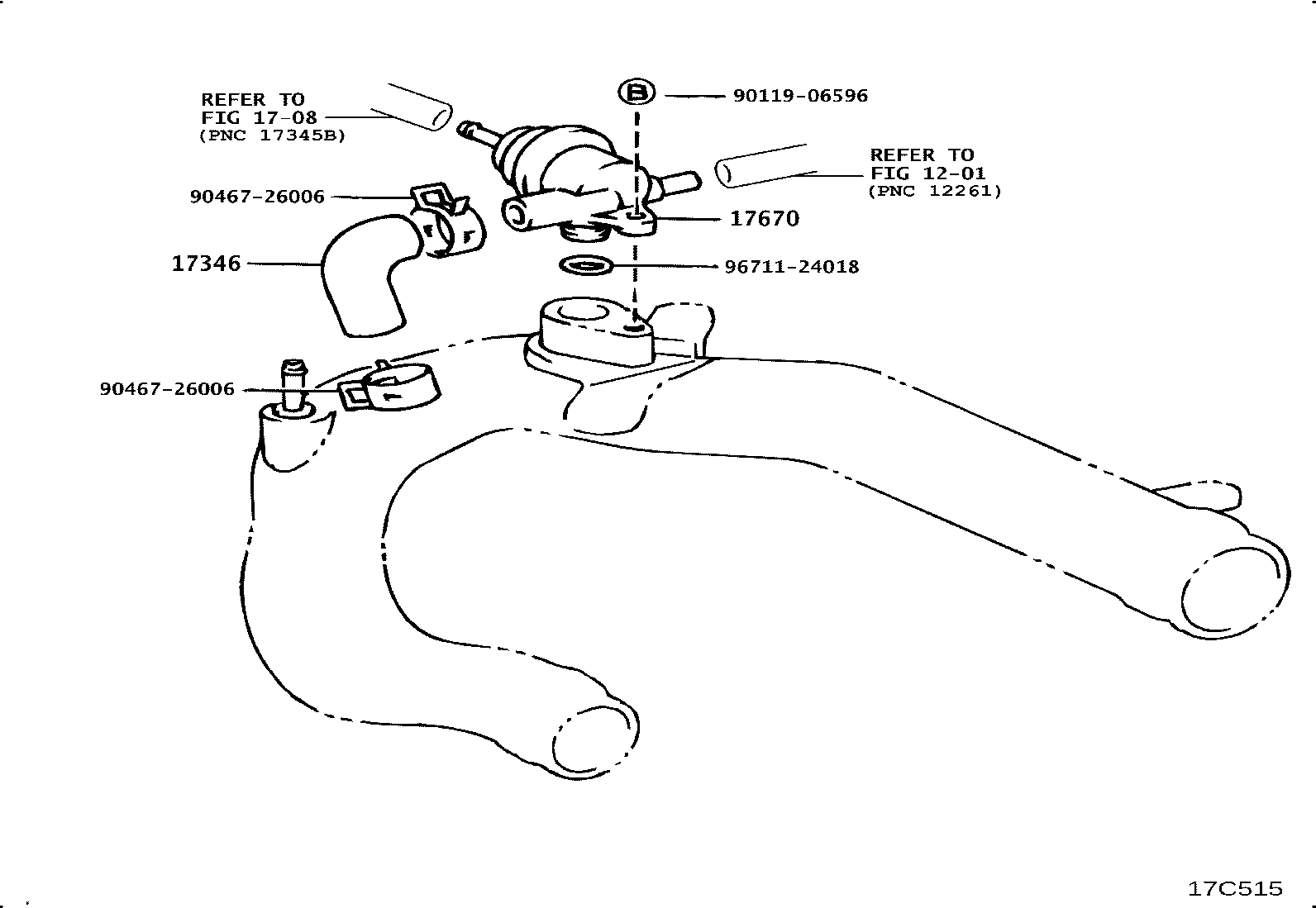

Manifold Air Injection System
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17342 | Hose, NO.2(FOR AIR INJECTION SYSTEM) |
| 17346 | Hose, NO.6(FOR AIR INJECTION SYSTEM) |
| 17351 | Manifold, Air Injection |
| 17670 | Valve Assy, Air By-pass |
| 25720 | Valve Assy, Electric Air Control |
| 25722 | Gasket, Electric Air Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
