Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 4 illustrations

Illustrations

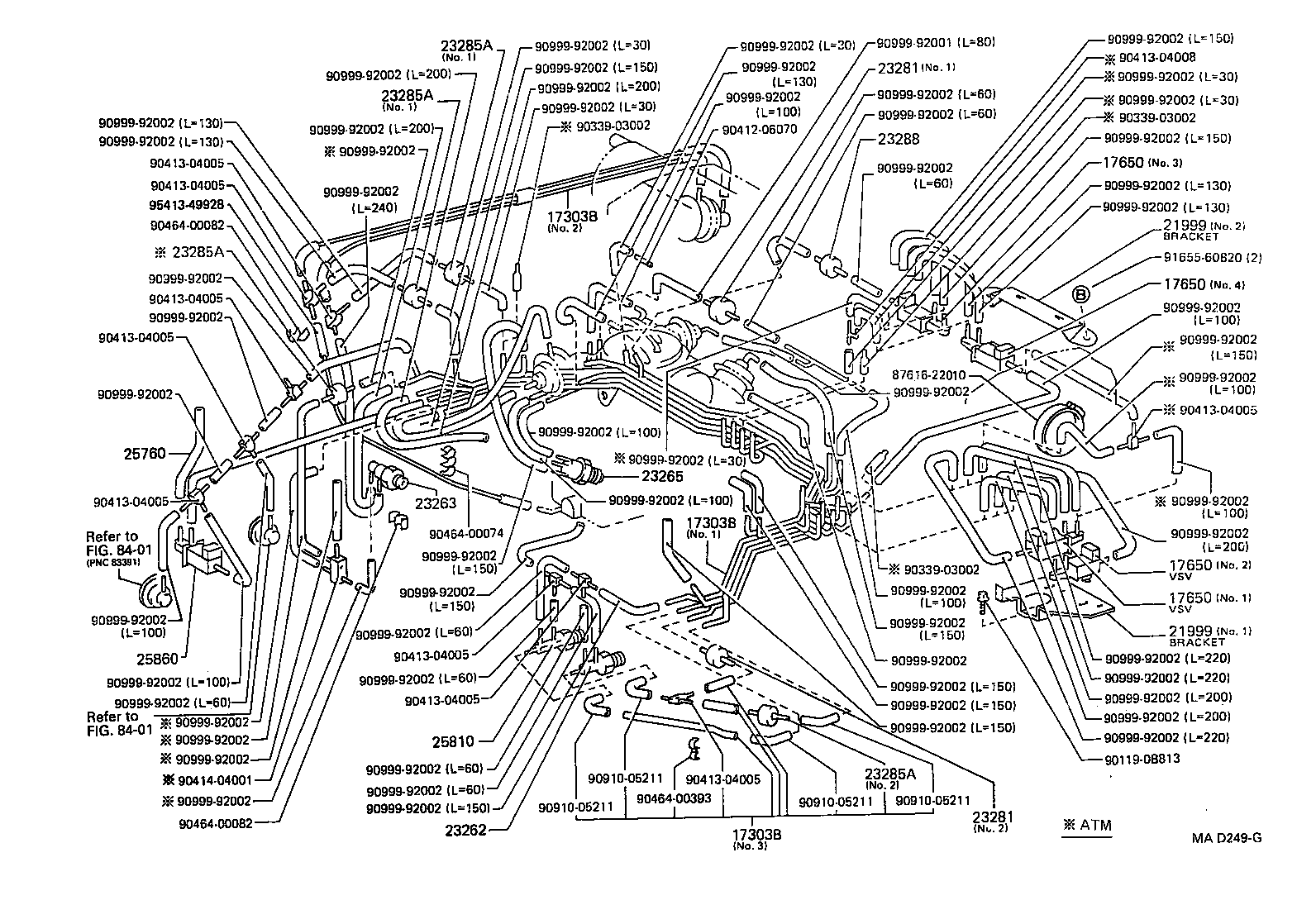

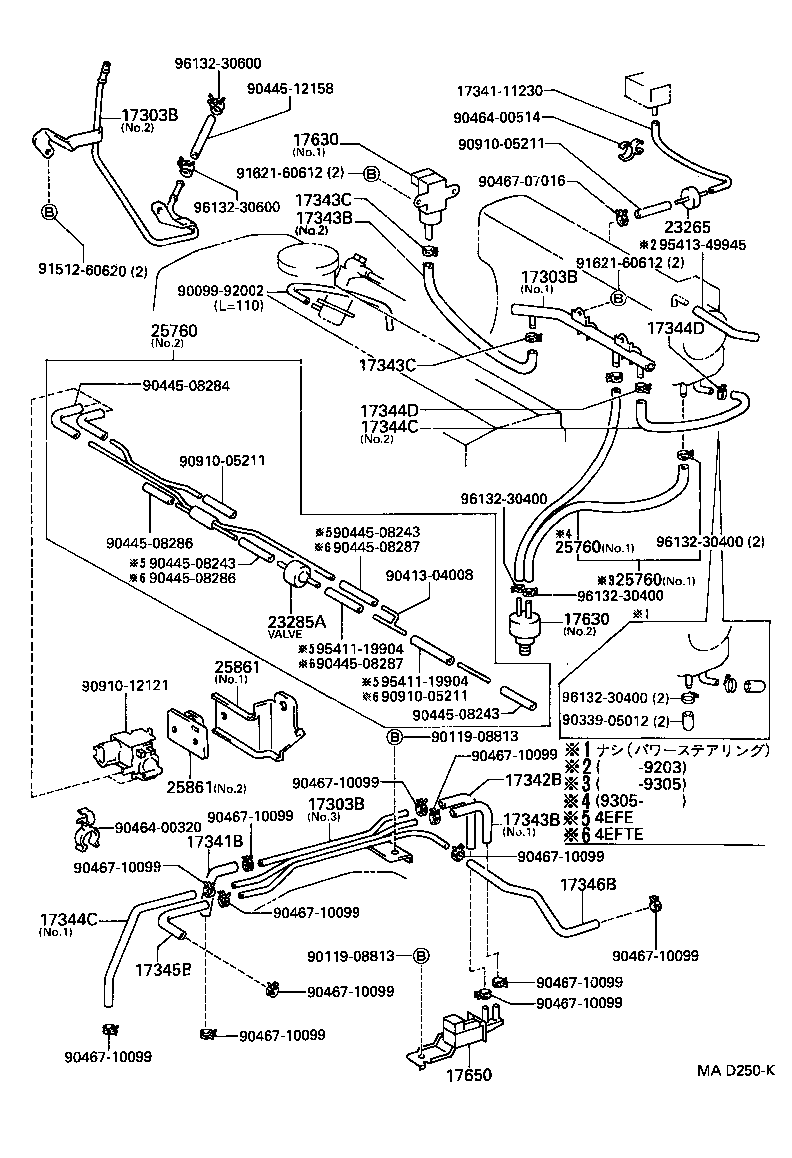

Figure MA9503A MA9503A 1989-12 → — Figure MAD249G MAD249G 1989-12 → 1992-01 Figure MAD250K MAD250K 1989-12 → — Figure MA9503A MA9503A 1989-12 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17346B Hose, Air, NO.6
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21999 Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
