Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

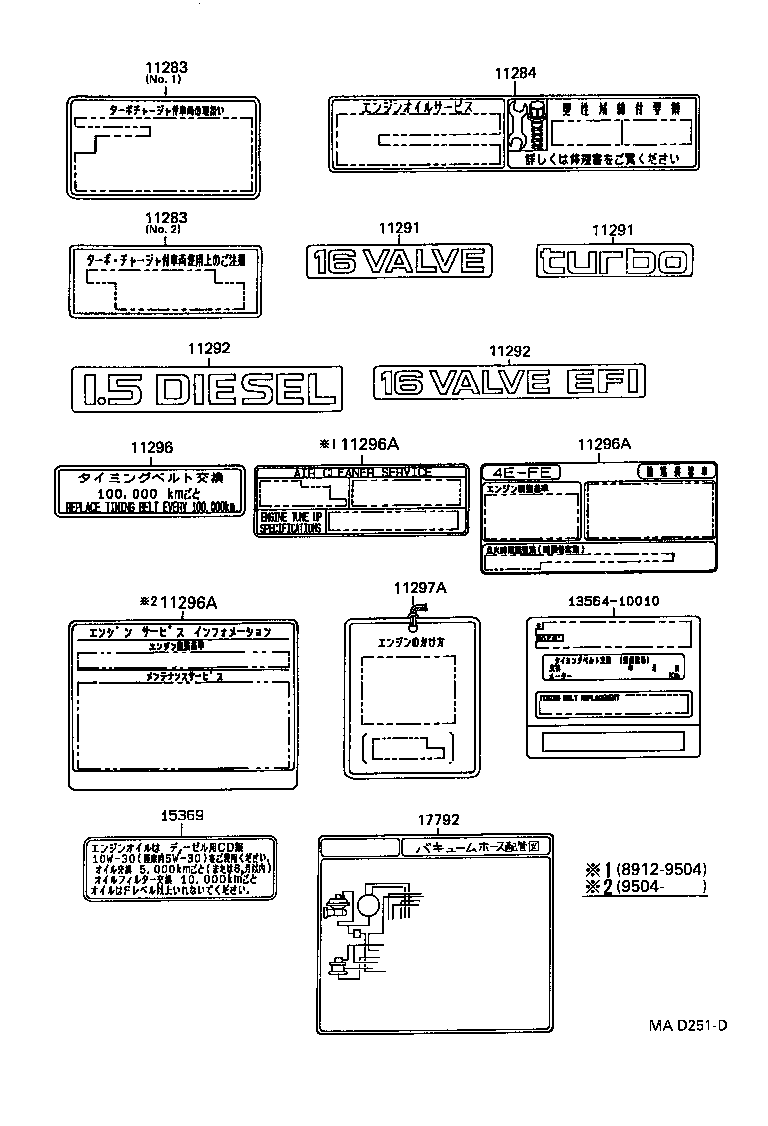

Caution Plate & Name Plate (ENGINE)
9 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 11283 | Plate, Turbocharger Caution |
| 11284 | Plate, Engine Bolt Information |
| 11291 | Plate, Engine Name |
| 11292 | Plate, Engine Name, NO.2 |
| 11296 | Plate, Timing Belt Caution |
| 11296A | Label, Engine Service Information |
| 11297A | Plate, Engine Start Caution |
| 15369 | Plate, Engine Oil Caution |
| 17792 | Plate, Engine Vacuum Hose Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
