Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

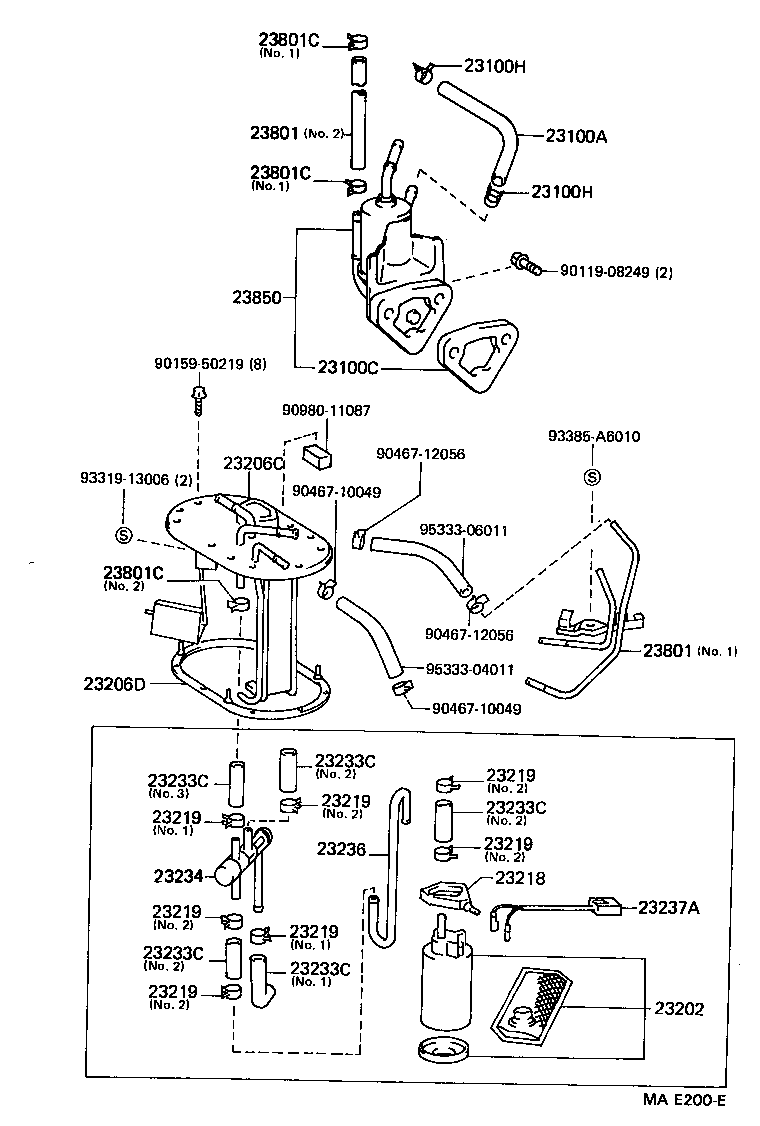

Fuel Pump & Pipe
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23100 | Pump Assy, Fuel |
| 23100A | Hose, Fuel |
| 23100C | Insulator, Fuel Pump |
| 23100H | Clip(FOR FUEL HOSE) |
| 23202 | Pump Kit, Fuel |
| 23206C | Bracket, Fuel Pump |
| 23206D | Gasket, Fuel Pump Bracket |
| 23218 | Cushion, Rubber |
| 23219 | Clip, Hose |
| 23233C | Hose, Fuel Pump |
| 23234 | Pump Assy, Fuel |
| 23236 | Tube, Fuel |
| 23237A | Wire Sub-assy, Lead |
| 23801 | Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 |
| 23801C | Clip(FOR CARBURETOR FUEL HOSE) |
| 23850 | Separator Assy, Fuel Vapor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
