Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

8 part groups · 6 illustrations

Illustrations

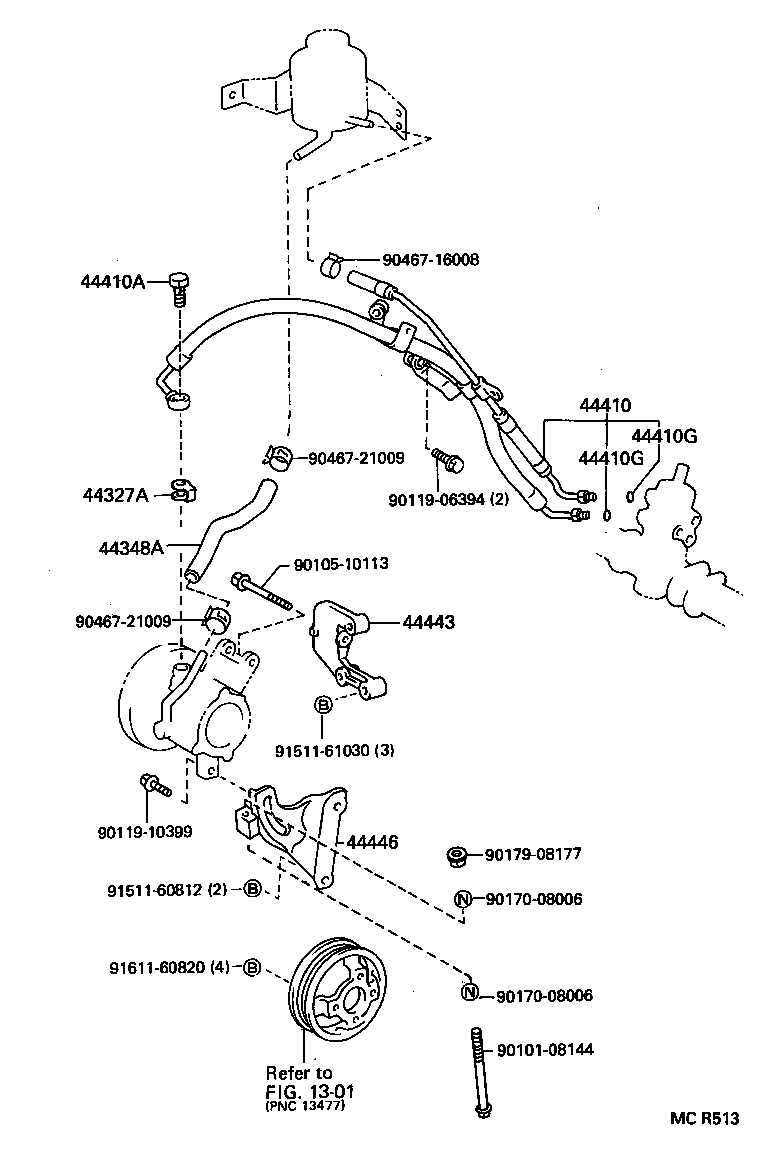

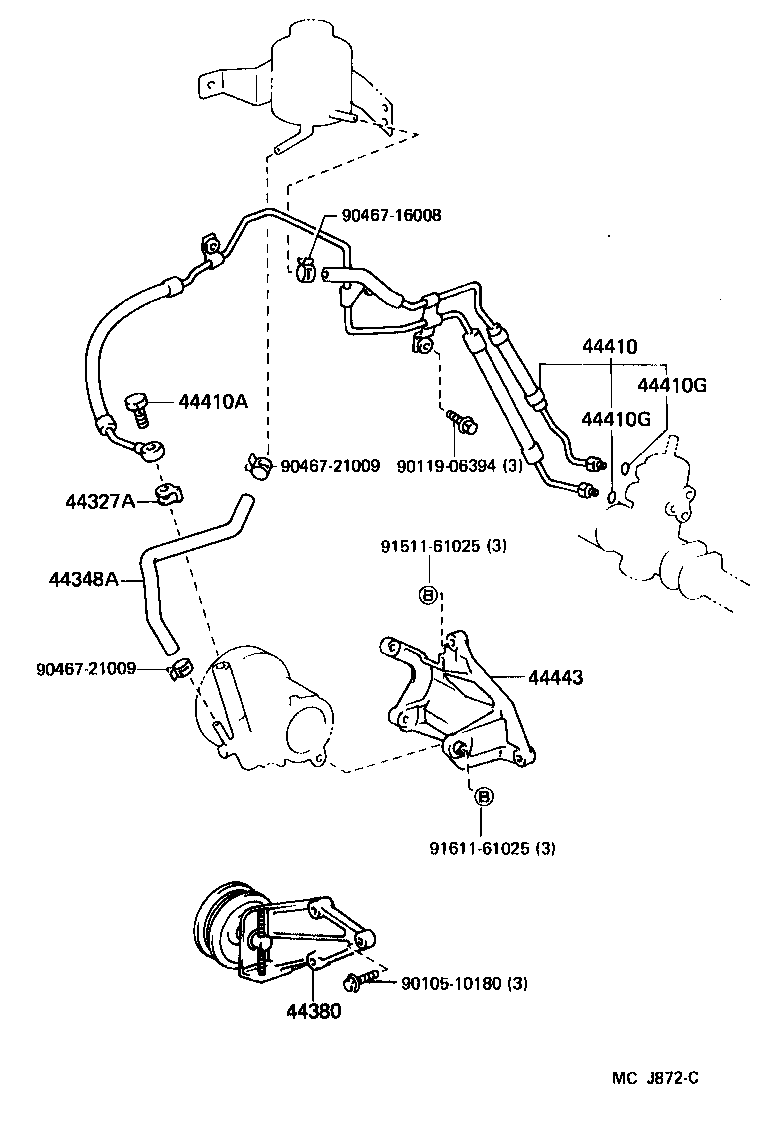

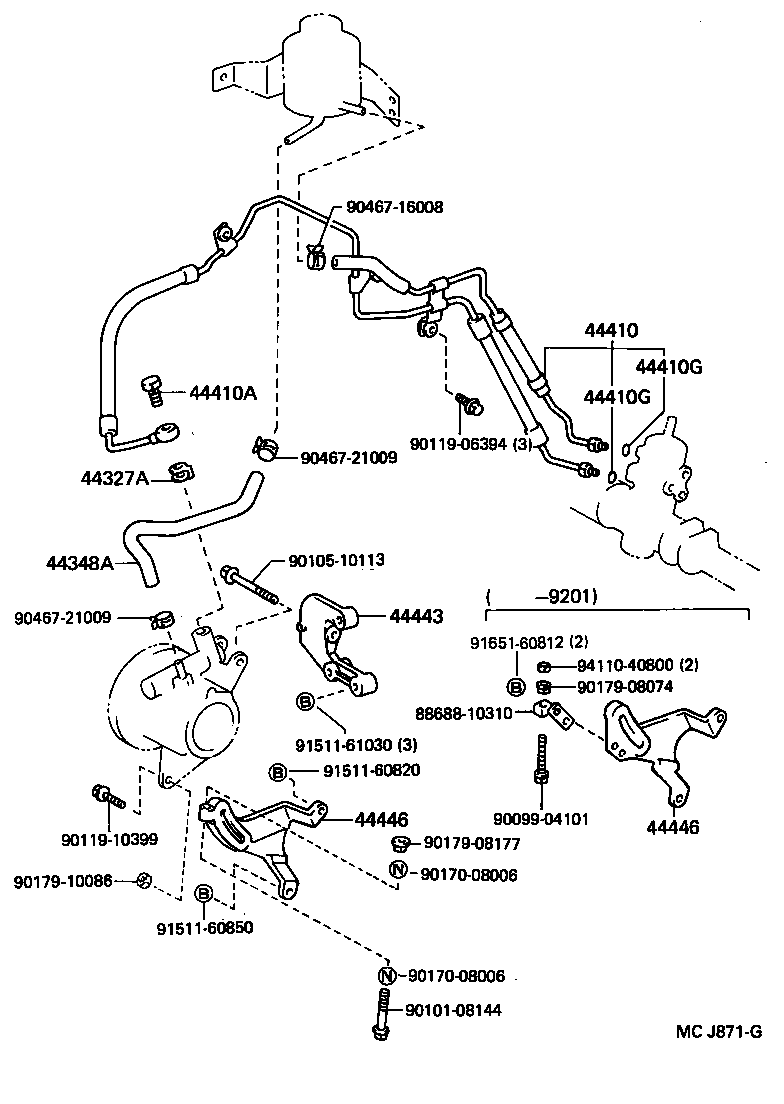

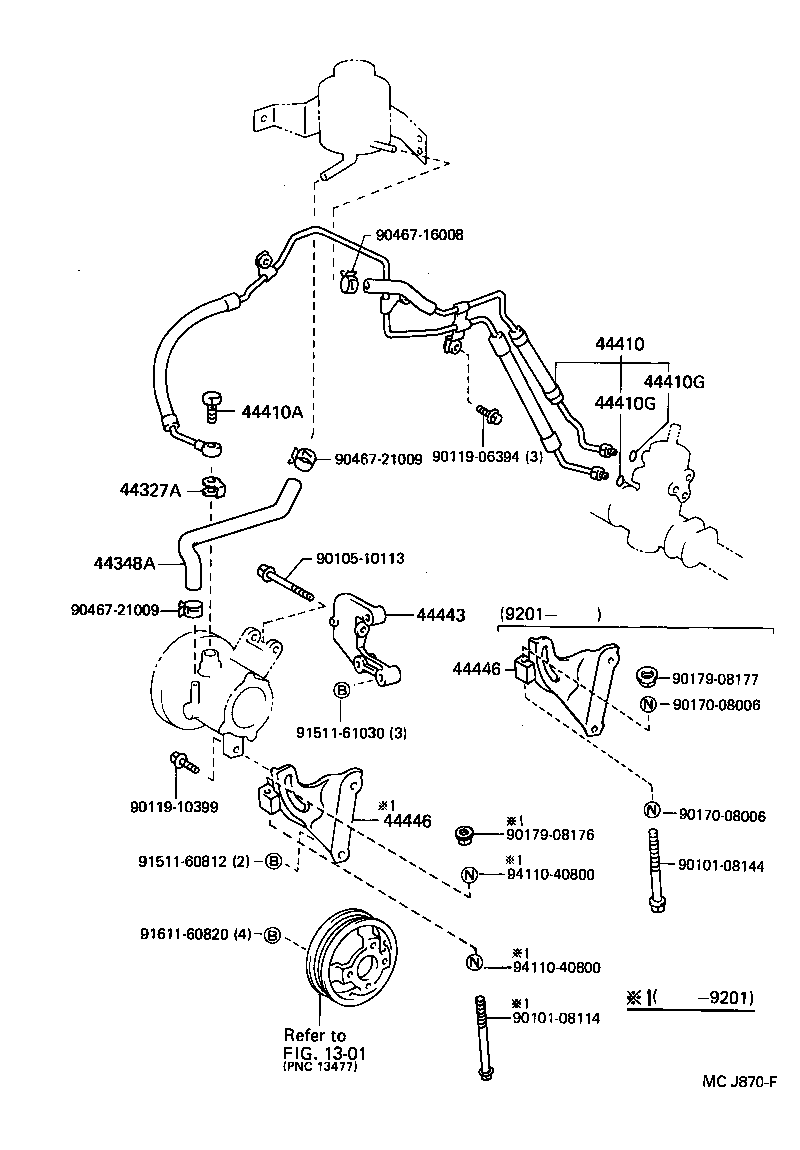

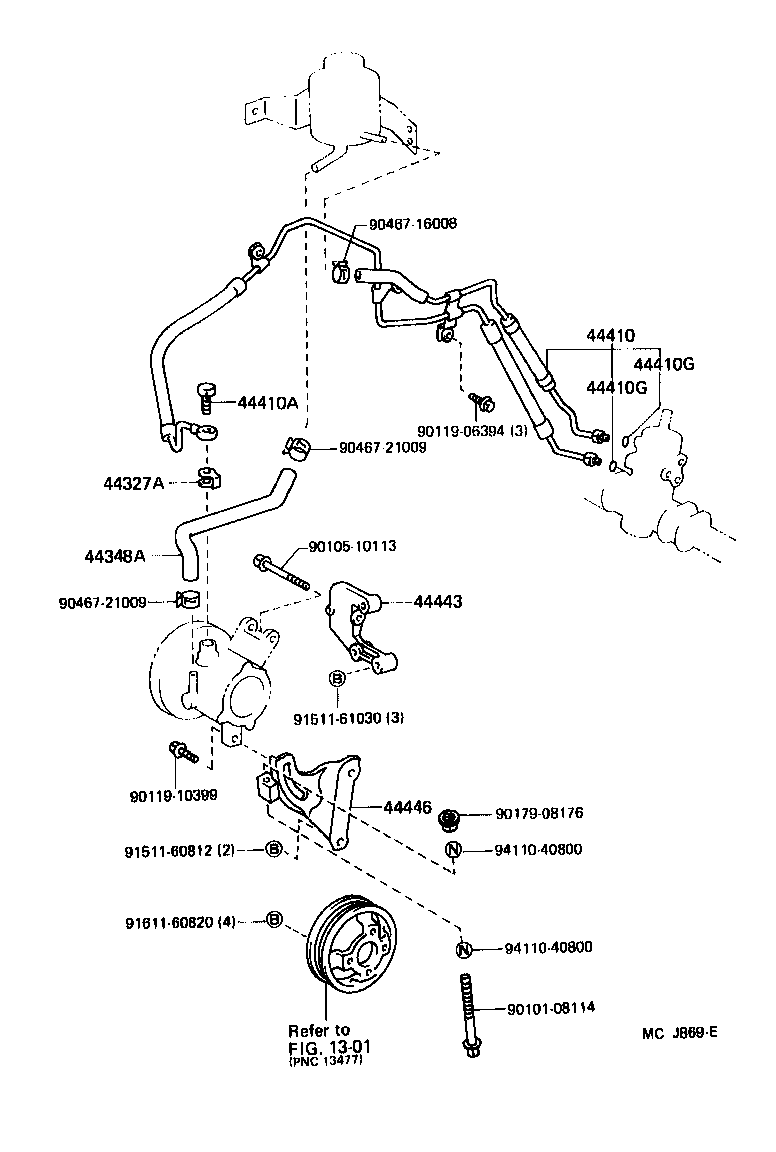

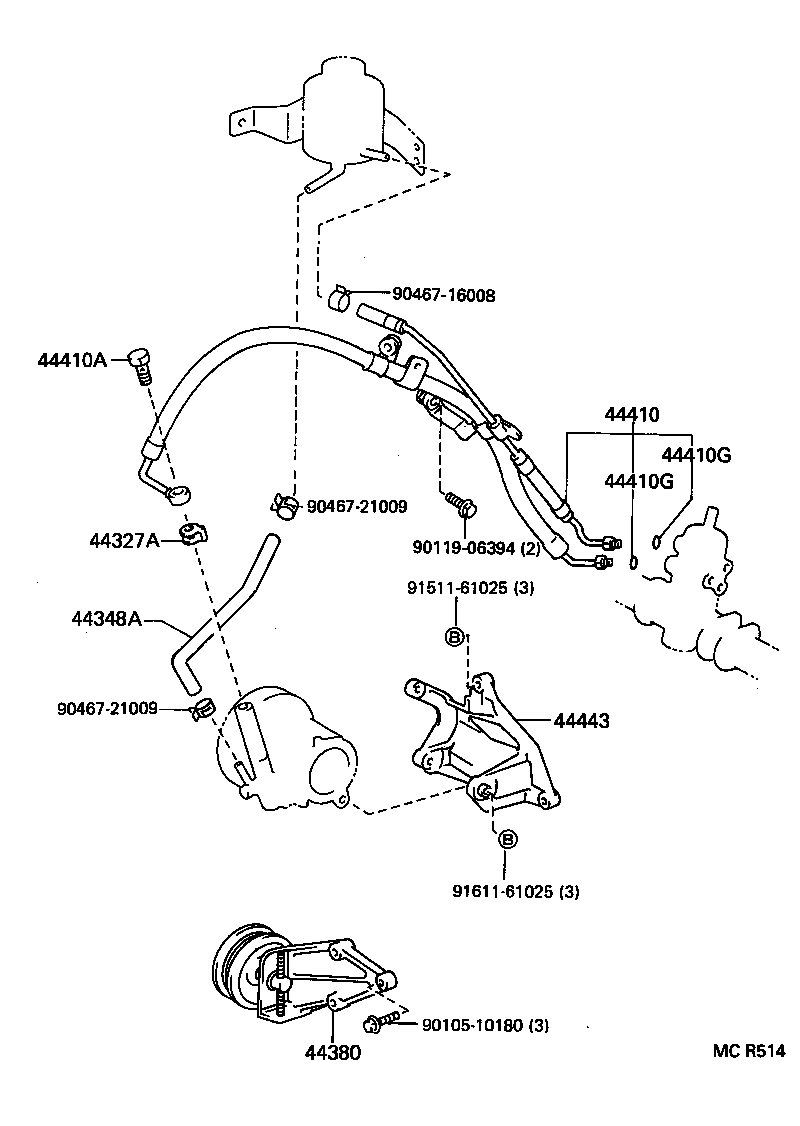

Figure MCJ869E MCJ869E 1989-12 → 1992-01 Figure MCJ870F MCJ870F 1989-12 → 1994-05 Figure MCR513 MCR513 1994-05 → — Figure MCJ871G MCJ871G 1989-12 → — Figure MCJ872C MCJ872C 1989-12 → 1994-05 Figure MCR514 MCR514 1994-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44380 Pulley Assy, Power Steering Idle W/Bracket
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
