Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

16 part groups · 3 illustrations

Illustrations

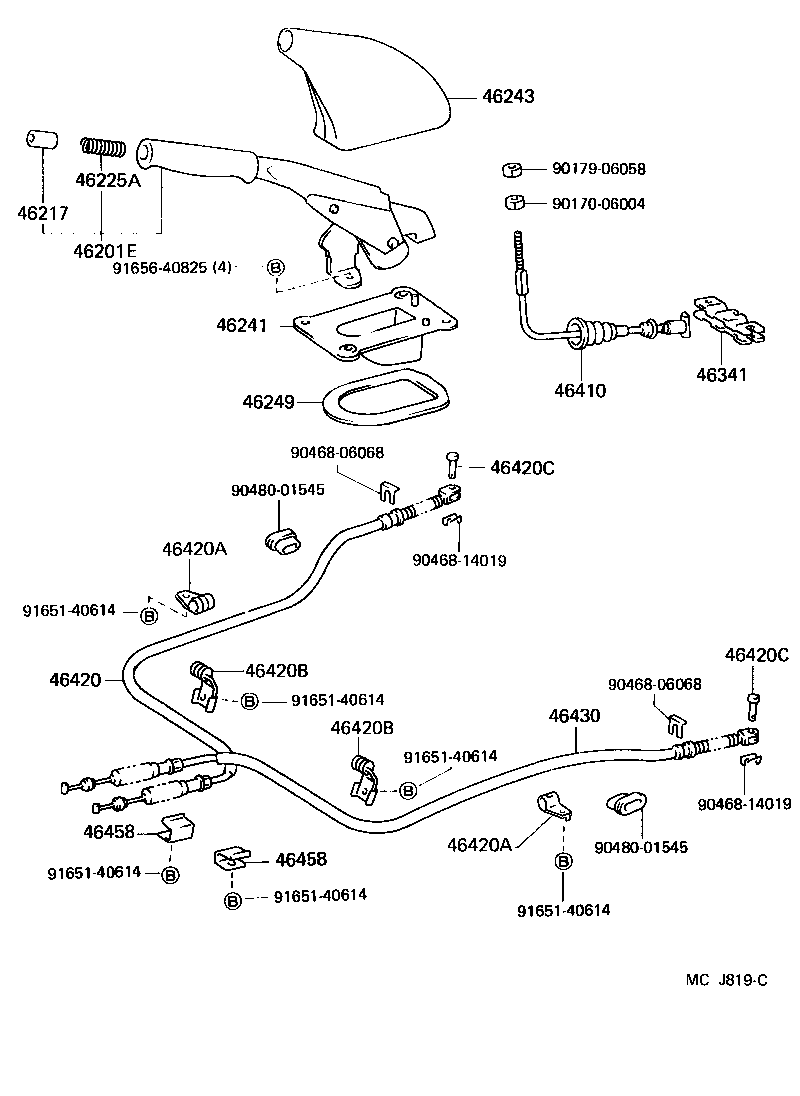

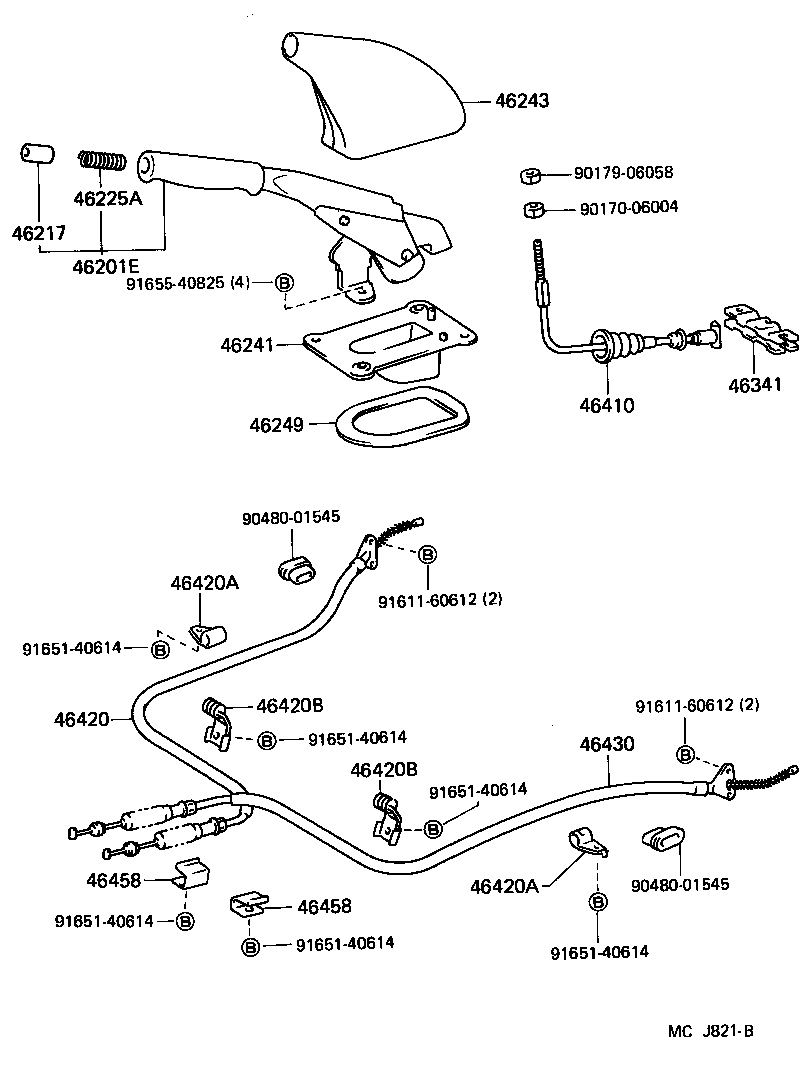

Figure MCJ821B MCJ821B 1989-12 → — Figure MCJ819C MCJ819C 1989-12 → — Figure MCL053A MCL053A 1990-08 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46217 Knob, Parking Brake Release Rod
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46241 Boot, Parking Brake Lever
46243 Cover, Parking Brake Lever
46249 Shield, Parking Brake Hole
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420C Pin, W/Hole(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46451C Bracket, Parking Brake Cable Support, NO.1
46458 Retainer, Cable
46464 Plate, Cable Clamp Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
