Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

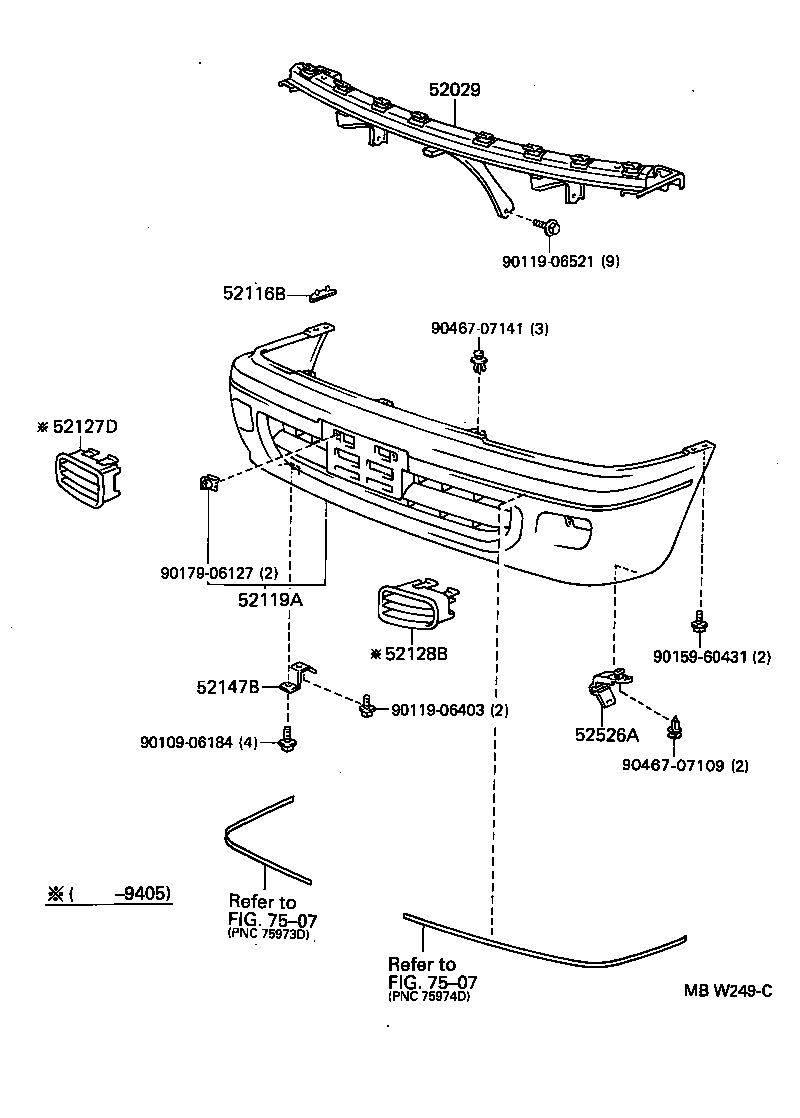

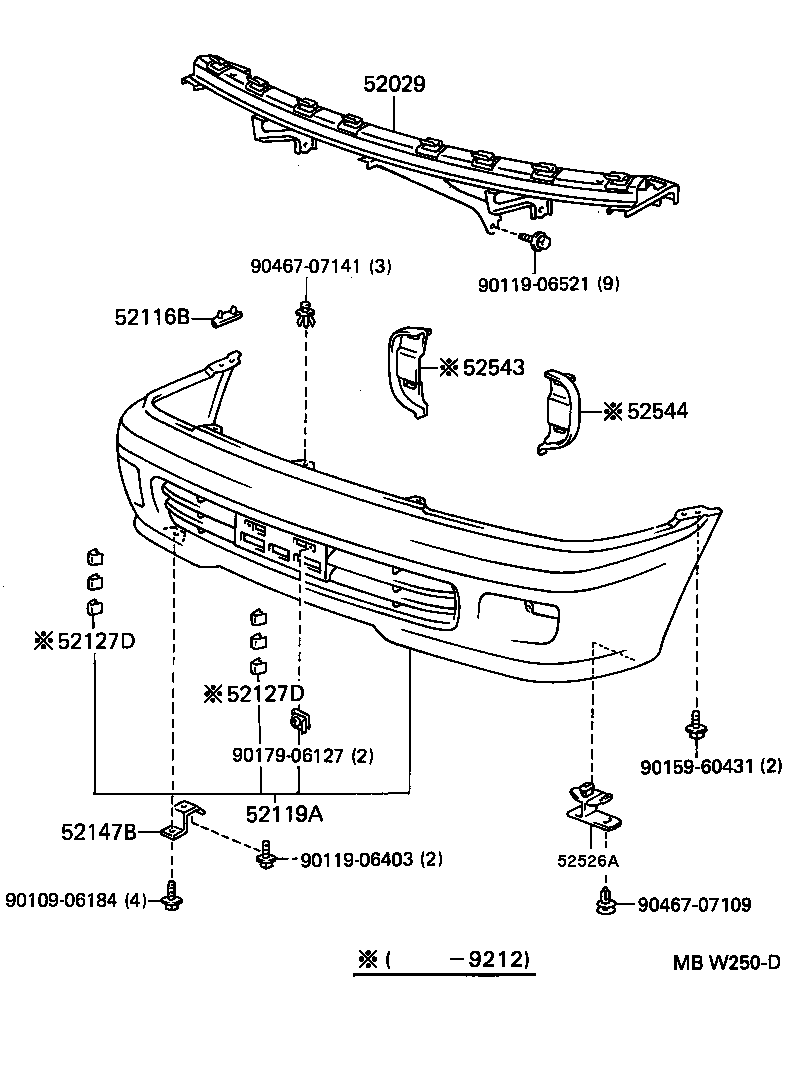

Front Bumper & Bumper Stay
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52116B | Retainer, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52147B | Bracket, Front Bumper Mounting |
| 52526A | Retainer, Front Bumper, Lower NO.1 |
| 52543 | Seal, Front Bumper Side, RH |
| 52544 | Seal, Front Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
