Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

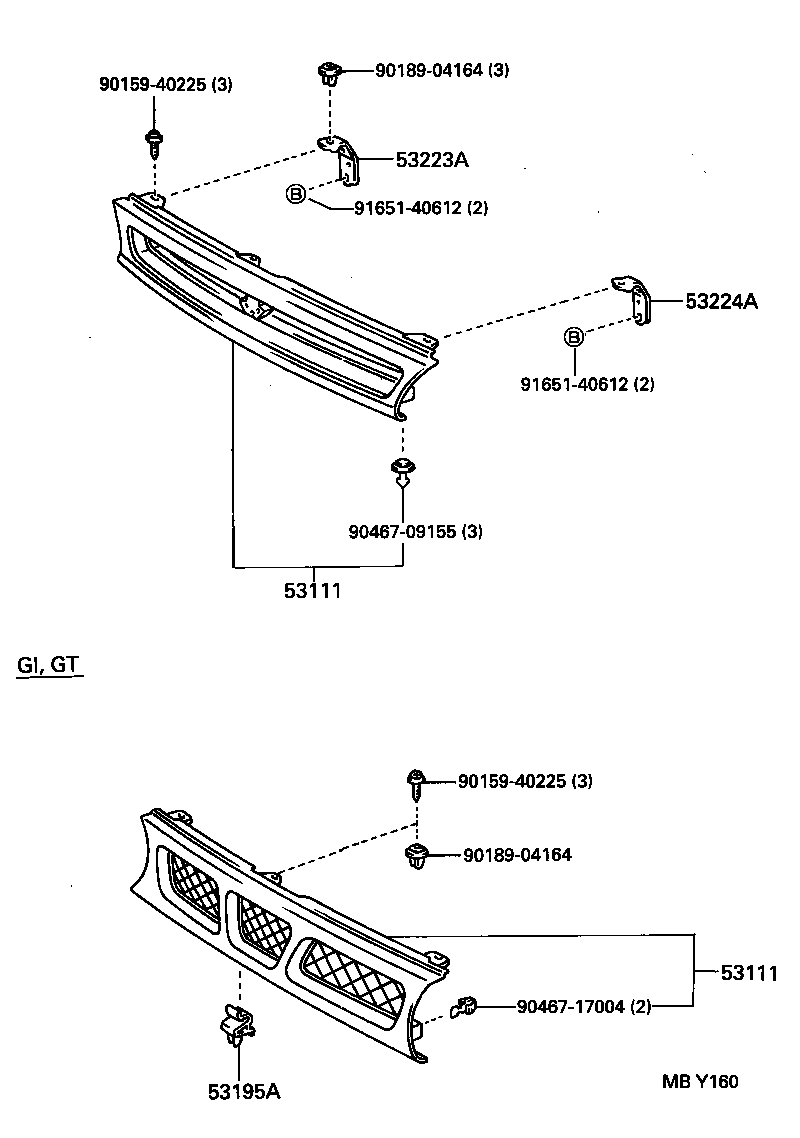

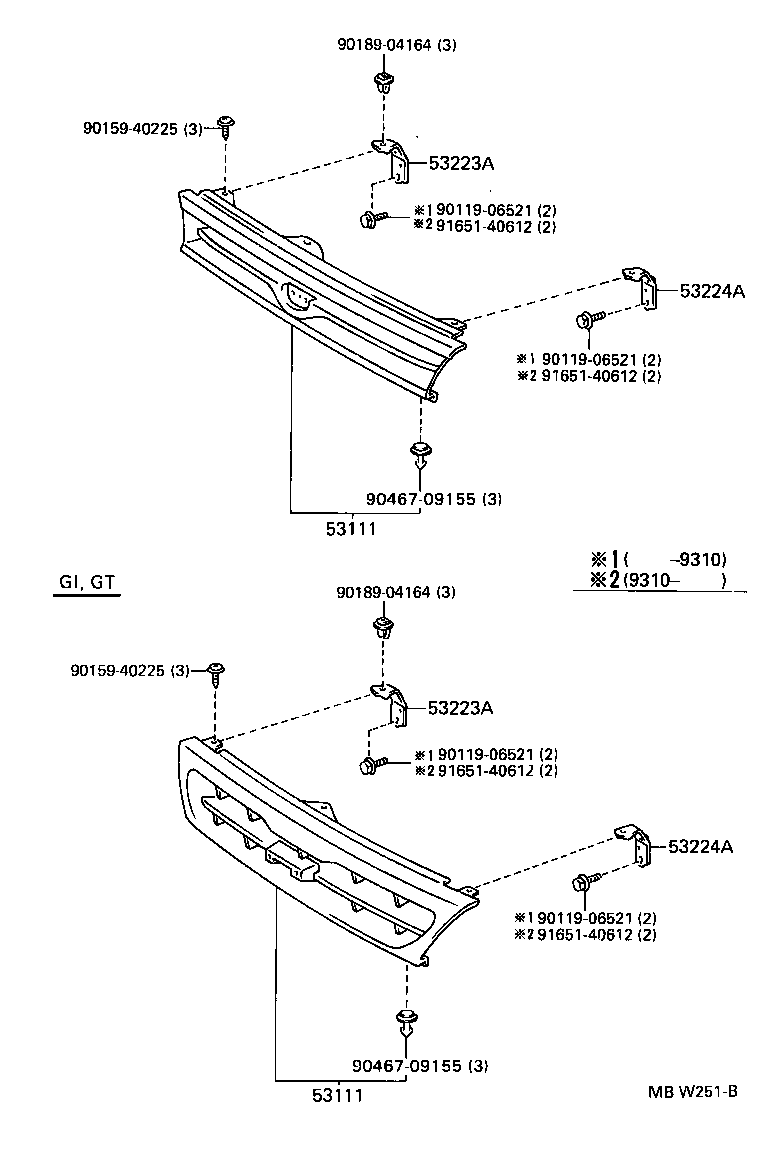

Figure MBT693E MBT693E 1989-12 → 1992-01 Figure MBW251B MBW251B 1992-01 → 1994-05 Figure MBY160 MBY160 1994-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53195A Retainer, Radiator Grille, Lower NO.1
53223A Bracket, Radiator Grille Mounting
53224A Bracket, Radiator Grille Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
