Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

22 part groups · 2 illustrations

Illustrations

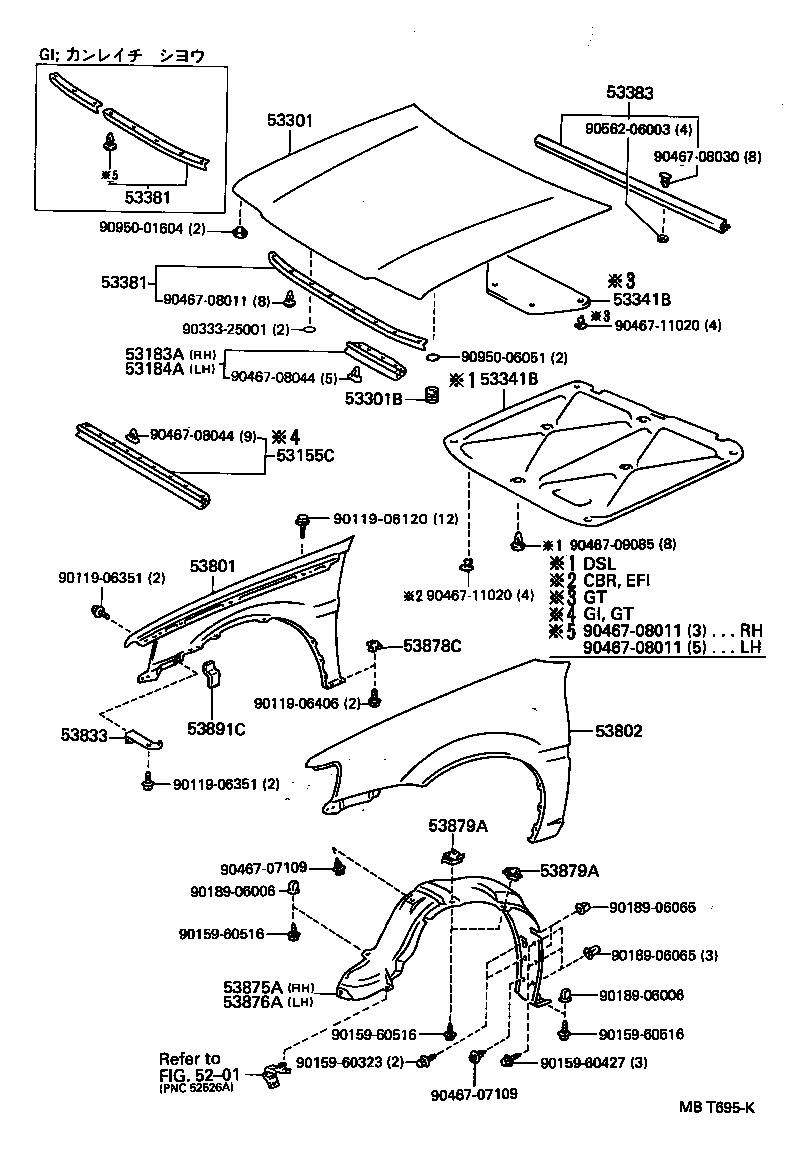

Figure MBT695K MBT695K 1989-12 → — Figure MBT696B MBT696B 1989-12 → —

Part groups

PNCDescription
53155C Seal, Radiator Grille, NO.1
53183A Seal, Headlamp Cover, RH
53184A Seal, Headlamp Cover, LH
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53383 Seal, Hood TO Cowl Top
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53833 Panel, Front Fender Side, Lower
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53878C Spacer, Front Fender
53879A Retainer, Front Fender Liner
53891C Seal, Front Fender Splash Sheild, Front
76109 Guide Sub-assy, Hood Air Intake
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76187 Retainer, Hood Air Intake Guide, NO.1
76899C Nut, Rear Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
