Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

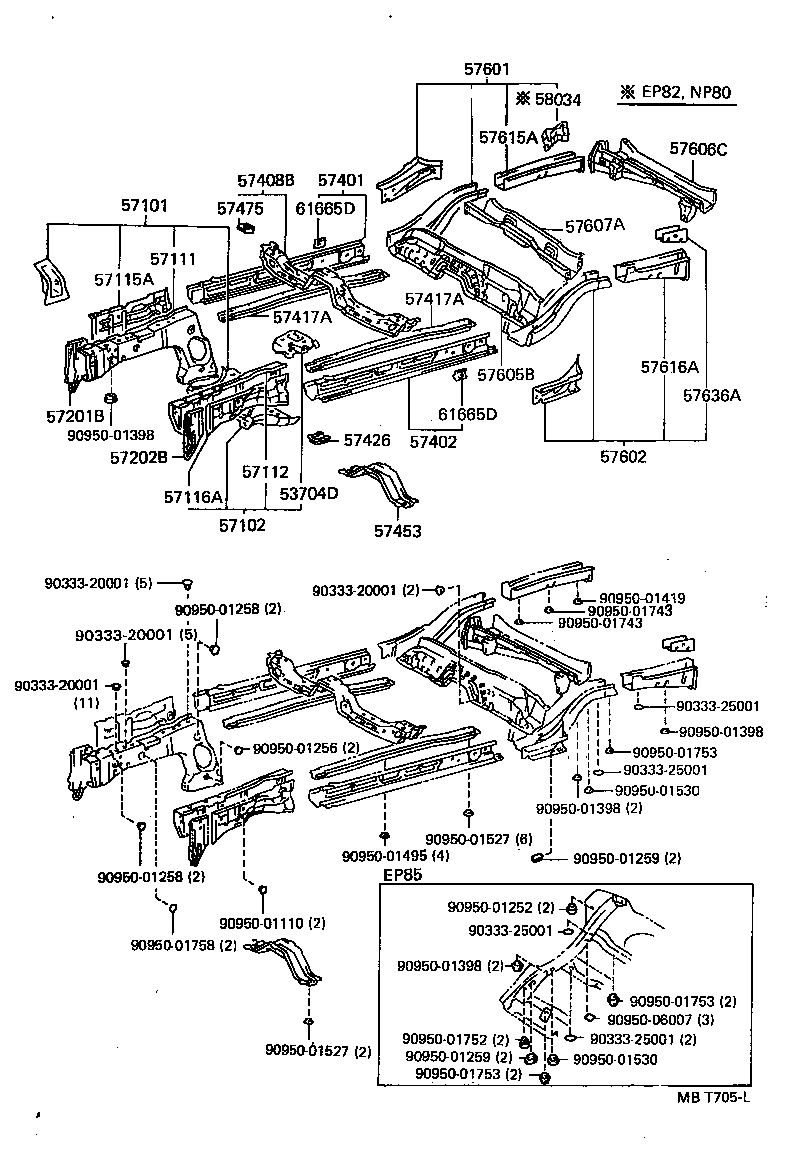

Floor Side Member
26 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 53704D | Support Sub-assy, Battery, LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57115A | Plate, Front Side Member, Outer RH |
| 57116A | Plate, Front Side Member, Outer LH |
| 57201B | Extension Sub-assy, Front Side Member, RH |
| 57202B | Extension Sub-assy, Front Side Member, LH |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57408B | Member Sub-assy, Front Floor Cross |
| 57417A | Reinforcement, Front Floor Under |
| 57426 | Reinforcement, Front Floor, NO.2 LH |
| 57453 | Member, Front Floor Cross, NO.3 |
| 57475 | Plate, Front Floor Crossmember |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57615A | Member, Rear Floor Side, Rear RH |
| 57616A | Member, Rear Floor Side, Rear LH |
| 57636A | Reinforcement, Rear Floor Side Member, Rear LH |
| 58034 | Bracket Sub-assy, Exhaust Pipe Support, Rear |
| 61665D | Plate, Safety Belt Anchorage |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
