Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10
Instrument Panel & Glove Compartment
37 part groups · 1 illustrations

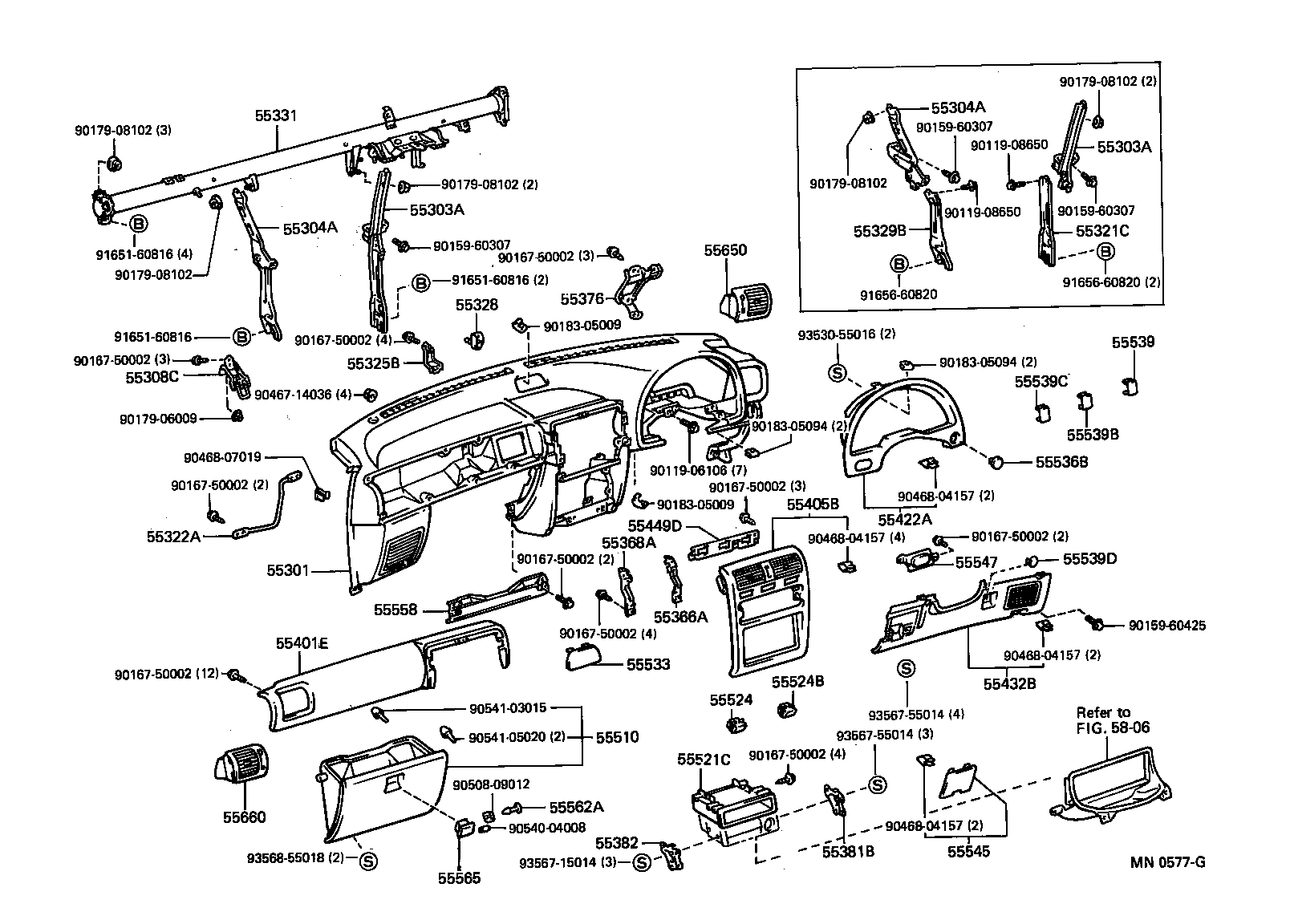

Illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55303A | Stay Sub-assy, Instrument Panel |
| 55304A | Stay Sub-assy, Instrument Panel, Center |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55321C | Stay, Instrument Panel, NO.5 |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55325B | Bracket, Instrument Panel, NO.5 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55329B | Stay, Instrument Panel, NO.4 |
| 55331 | Reinforcement, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55382 | Bracket, Finish Panel Mounting, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55449D | Base, Switch |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55524 | Cover, Switch Bace Hole |
| 55524B | Cover, Switch Base Hole |
| 55533 | Cover, Auto Clock Hole |
| 55536B | Cover, Light Control Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55558 | Reinforcement, Glove Compartment Door |
| 55562A | Link, Glove Compartment Door Lock |
| 55565 | Handle, Glove Compartment Door Lock |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
